Ripley 43625 SCS Semi-Con Scoring Tool

Home > Categories > Utility & MV Cable Prep > Semi-Con Scoring Tools >

UtilityTool by Ripley Tools SCS Semi-Con Scoring Tool, 5-35kV - Metric Scale

TTS PRICE: $425.09

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-43625

QUANTITY:

PRODUCT DESCRIPTION

Ripley UtilityTool SCS Semi-Con Scoring Tool - 5-35 kV, Metric Scale

The SCS is a compact, easy-to-use tool that scores the semi-con on 5 to 35 kV medium-voltage cable without damaging the insulation. It makes longitudinal, spiral and calibrated square cuts on cable from 0.31" to 2.0" (8 to 51 mm) and works in a 2" (51 mm) envelope on larger cables.

This model has the standard cable guide for general-purpose semi-con scoring. Blade depth is set on a metric scale in 0.05 mm steps.

Features:

Scores semi-con on 5-35 kV cables without damaging insulation

Longitudinal, spiral and calibrated square cuts

Cable diameter 8-51 mm

Precise blade depth adjustment (0-4 mm)

Standard cable guide for most MV cable constructions

Easy blade replacement

Specifications:

Model: Ripley UtilityTool SCS (Metric) (Ripley Part # 43625)

Scale: Metric, 0.05 mm increments

Cable OD: 8-51 mm

Blade Depth: 0-4 mm

Voltage: 5 kV - 35 kV

Cutting Type: Spiral, Longitudinal, Calibrated Square

Length: 5in (127 mm)

Weight: 9.6 oz (270 g)

Patent: U.S. Patent No. D721,563

Available Models:

Part #	Model	Ripley #	Scale	Increments	Cable OD	Blade Depth	Cable Guide
UTIL-43630	SCS (Inch)	43630	Imperial	0.002in	0.31-2.0in	0-0.16in	Standard
UTIL-43625	SCS (Metric) (this item)	43625	Metric	0.05 mm	8-51 mm	0-4 mm	Standard
UTIL-43651	SCS V2 (Inch)	43651	Imperial	0.002in	0.31-2.0in	0-0.16in	Narrowed

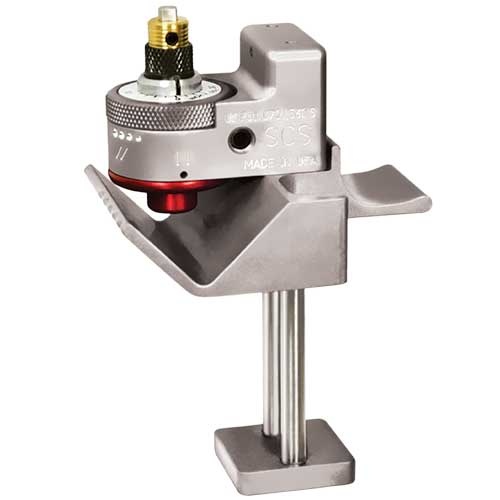

UTIL-43650	SCS V2 (Metric)	43650	Metric	0.05 mm	8-51 mm	0-4 mm	Narrowed

Replacement Parts:

Part #	Ripley #	Description
UTIL-43645	43645	SCS replacement blade assembly

Accessories:

Part #	Ripley #	Description
UTIL-43965	43965	SCS-C light-duty aluminum stop clamp

SCS Instruction Sheet
