Ripley US01-7205 US01 w/ Stop Bar Adjustable Cable Stripper

Home > Categories > Utility & MV Cable Prep > Cable End Strippers >

UtilityTool by Ripley Tools US01 w/ Stop Bar Adjustable Mid-Span & End Cable Stripper, 0.5-2.5in, 600V-35kV

Alternative Views:

TTS PRICE: $930.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-US01-7205

QUANTITY:

PRODUCT DESCRIPTION

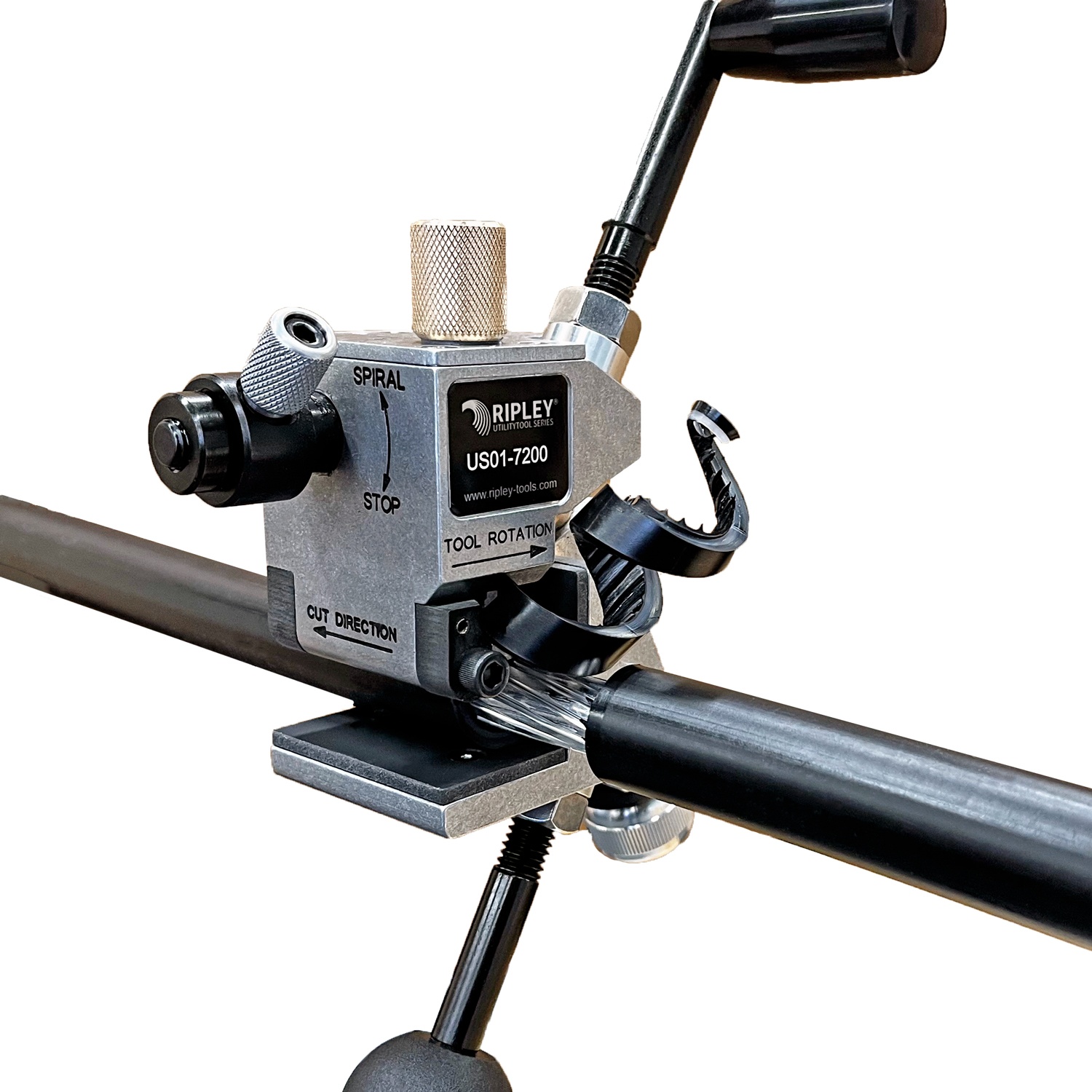

Ripley UtilityTool US01 w/ Stop Bar Adjustable Mid-Span & End Cable Stripper - 0.5-2.5", 600 V to 35 kV

The US01 is Ripley's adjustable tool for mid-span and end stripping of primary and secondary utility cable. It adjusts from 0.5" to 2.5" cable diameter and removes jacket and insulation - XLPE, PE and EPR - on cables rated 600 V to 35 kV.

Removable handles let it work where space is tight, a selector switch moves between ring and spiral cuts, and an insulation chip deflector keeps the work clear. A spare blade is stored in the tool. This US01-7205 model has the standard (xlpe / epr) blade and comes with the strip stop bar.

Features:

Mid-span and end stripping, 0.5-2.5in (12.7-63.5 mm) cable

Removes XLPE, PE and EPR jacket and insulation, 600 V to 35 kV

Selector switch for ring and spiral cuts

Adjustable blade depth

Removable handles for tight spaces

Spare blade stored in the tool

Insulation chip deflector

Replaces stripping knives - fewer cuts and lacerations

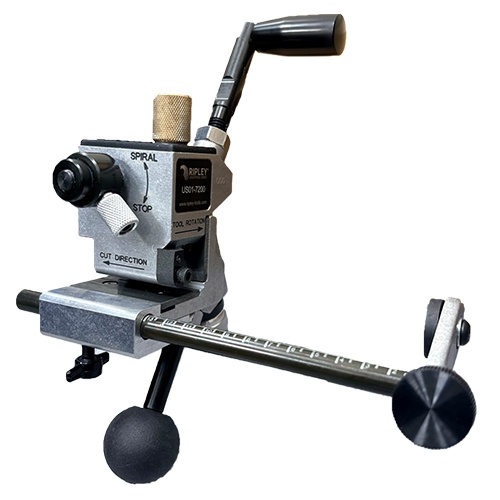

Strip stop bar included

Specifications:

Model: Ripley UtilityTool US01 w/ Stop Bar (Ripley Part # US01-7205)

Cable OD: 0.5-2.5in (12.7-63.5 mm)

Insulation Thickness: 0.060-0.420in (1.52-10.6 mm)

Voltage: 600 V - 35 kV

Cable: Primary overhead / underground, secondary, tree wire, spacer cable

Blade: Standard (XLPE / EPR)

Handles: 1 rotating, 1 ball handle

Material: Aluminum

Dimensions: 11 x 5.3 x 2.7in (279 x 135 x 69 mm)

Weight: 2.9 lb (1.32 kg)

Available Models:

Part #	Model	Ripley #	Blade	Stop Bar	Replacement Blade
UTIL-US01-7200	US01 Standard	US01-7200	Standard (XLPE / EPR)	No	US01-7501
UTIL-US01-7205	US01 w/ Stop Bar (this item)	US01-7205	Standard (XLPE / EPR)	Yes	US01-7501
UTIL-US01-7210	US01 EPR Optimized	US01-7210	EPR optimized	No	US01-7505

Replacement Parts:

Part #	Ripley #	Description
-	US01-7501	Standard replacement blade
-	US01-7505	EPR-optimized replacement blade

Accessories:

Part #	Ripley #	Description
-	US01-7507	Stop bar retrofit kit
-	US01-7504	Blade depth gauge kit

Related Products:

Part #	Ripley #	Description
RIP-US01-7100	US01-7100	US01 HS hotstick-operable adjustable cable stripper
