New!  RayDius Fiber Quadrant Block

RayDius Fiber Quadrant Block




Alternative Views:


TTS PRICE: $792.39

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: UTECK-59200
QUANTITY:

PRODUCT DESCRIPTION


Verizon MID: 11378360

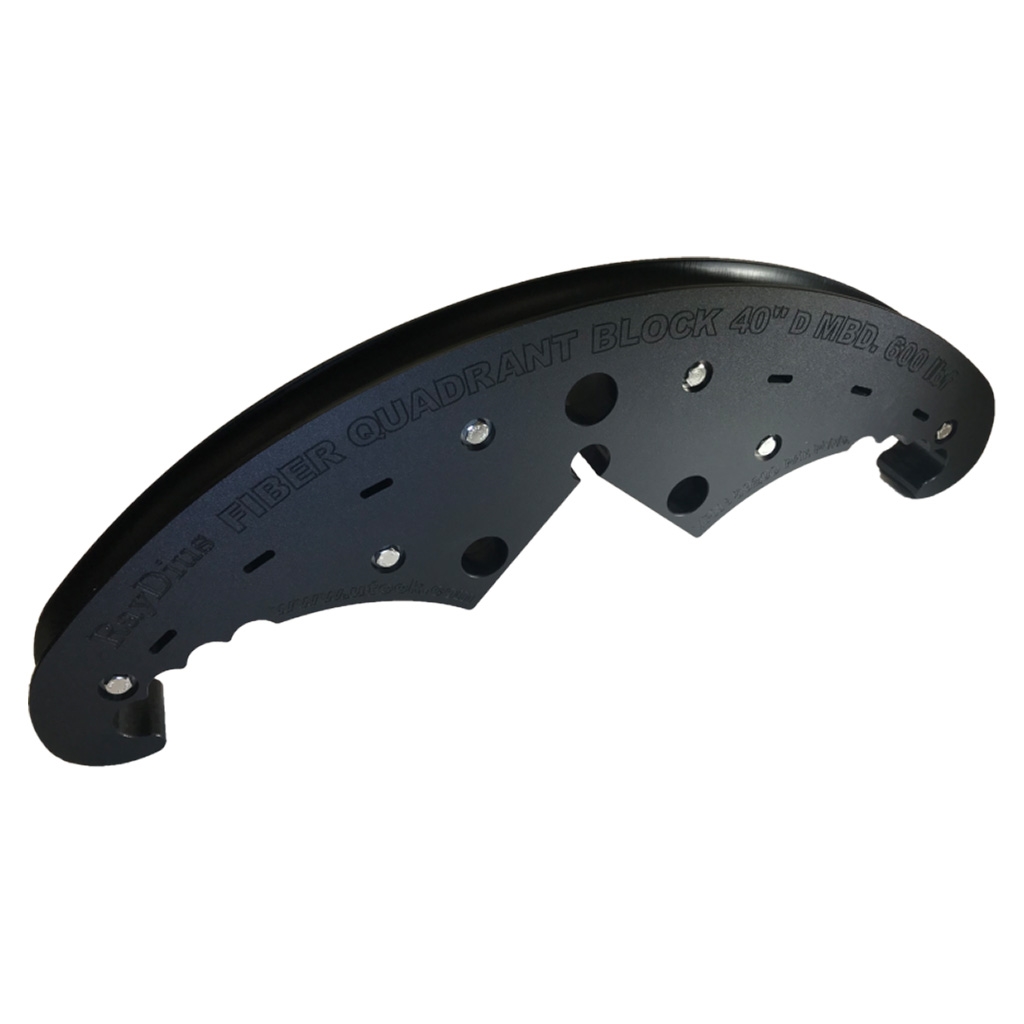

U-TECK’s New RayDius™ Fiber Quadrant Block is designed to protect fiber optic cable during installation. The 59200 can be used as an Infeed Guide or an Outfeed Guide for Fiber Cable to prevent breakage, which can occur on some standard quadrant blocks.

Using a new, gently curving solid design, U-Teck was able to provide a smooth contour while maintaining the required bend radius of the Fiber Optic Cable and eliminating breakage caused by contact pressure.

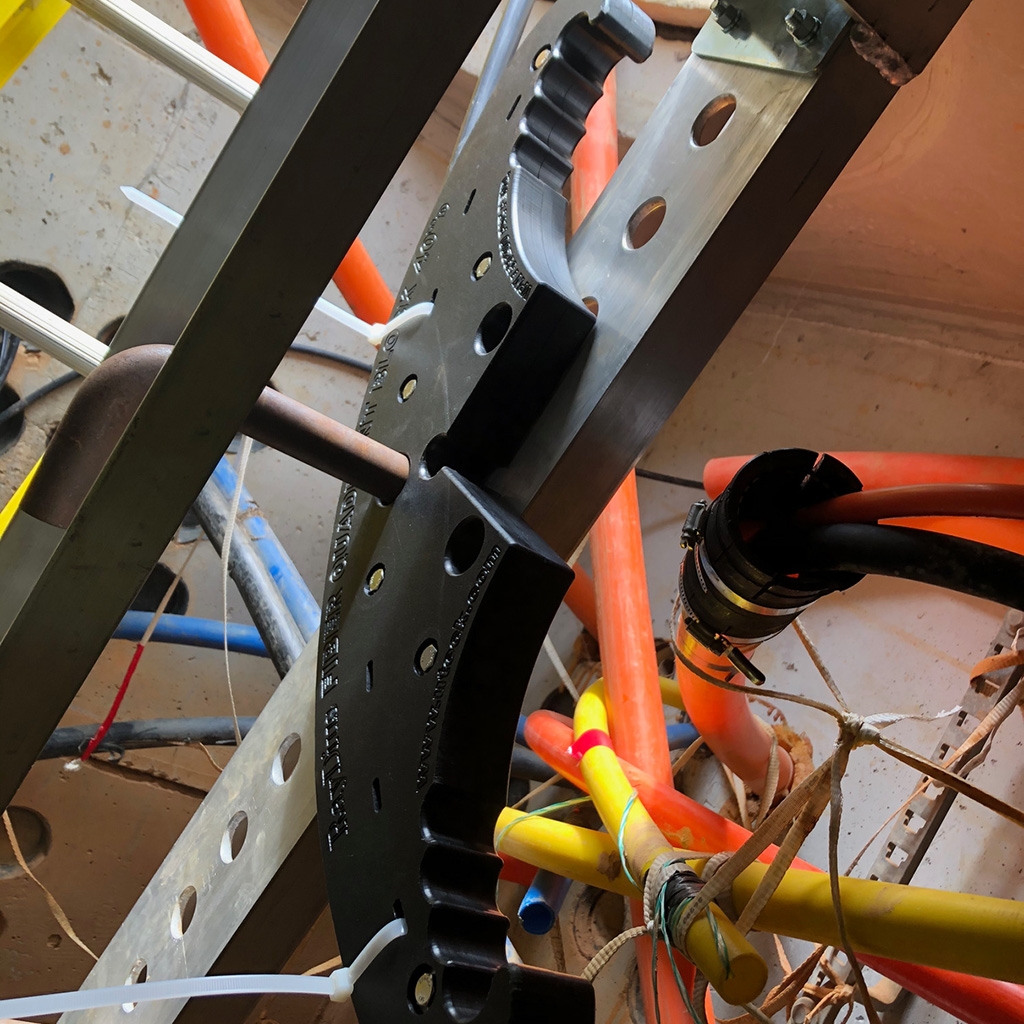

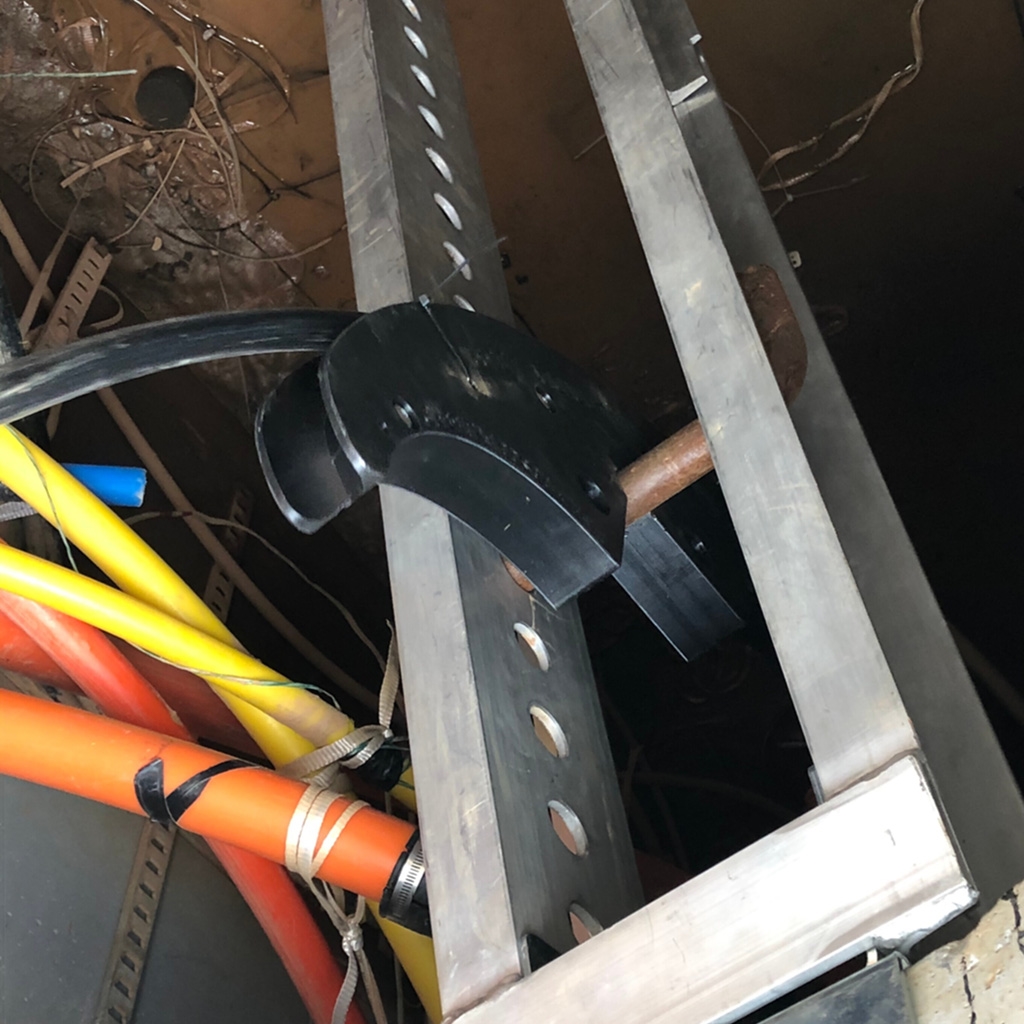

This product will fit on all standard Jamb Skids, Hanger Arms, Hanger Blocks, Support Bars, and Pole Brackets. The RayDius™ block has 6 unique CableKeeper slots for using Deltec™ strapping or tie wraps when you want to ensure that the cable continues to travel over the block without bouncing off. Using proper tools, such as the RayDius™, will also greatly reduce man-hours spent trying to resolve internal cable breakage issues. The RayDius™ is also safer and lightweight for easier maneuvering in small spaces with ergonomic grips molded into the design! Buy with or without the Ballistic Nylon Case!

The RayDius™ has undergone extensive wear and temperature testing and exceeded all factory testing standards. And did we mention it’s available at a fraction of the cost of traditional Quadrant Blocks?

Not only that, but U-Teck is currently working on several products that will work with the RayDius™ – such as Aerial Pole Brackets to allow vertical and horizontal pivoting! Buy this product with or without the Carrying case – which features rigid side walls, a padded shoulder strap, and inside pockets!

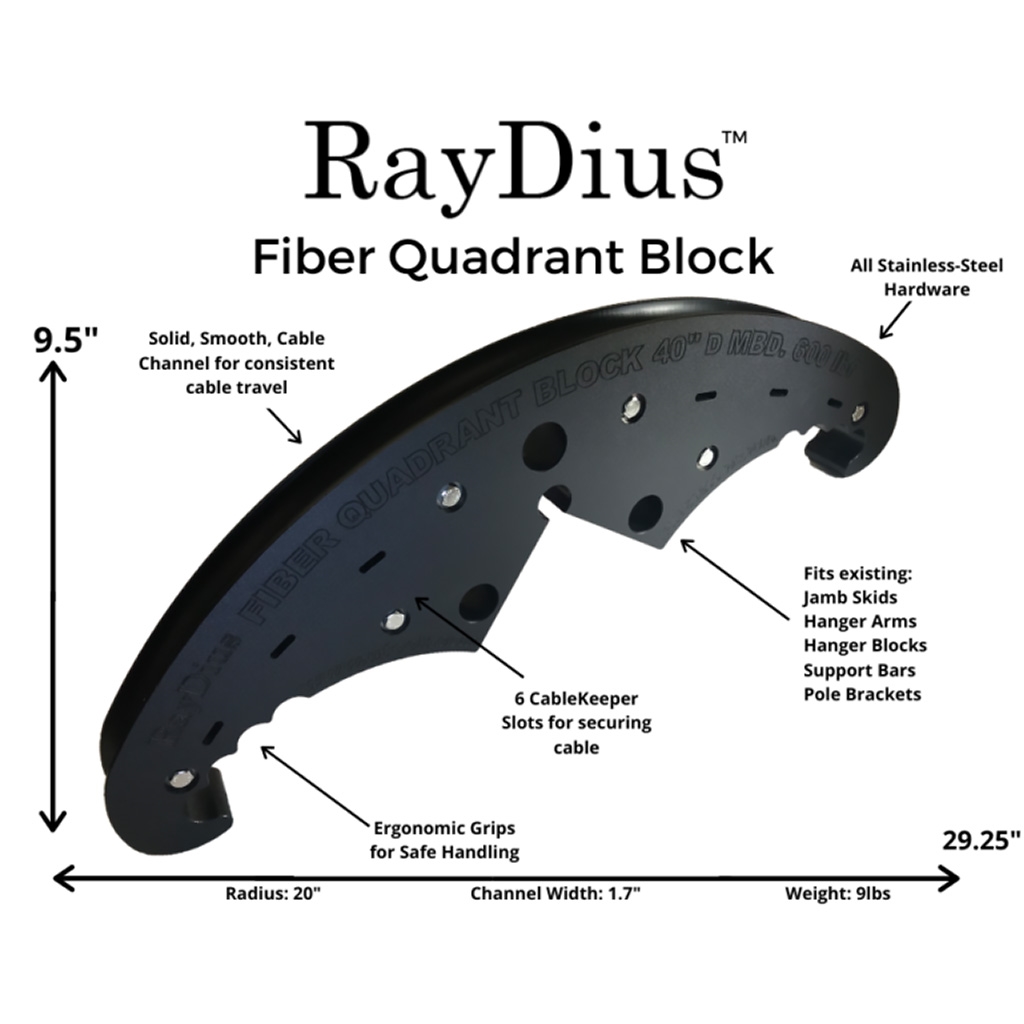

Features:
  • Solid, Smooth, Cable Channel for consistent cable travel
  • Lightweight and Durable
  • Ergonomic Grips for Safe Handling
  • 6 CableKeeper slots for securing cable while using Deltec strapping or Tie Wraps
  • All Stainless-Steel Hardware
  • Minimum Bend Diameter and Max Load info visible
  • Fits most all existing Jamb Skids, Hanger Arms, Hanger Blocks, Support Bars, and Pole Brackets

  • Specifications:
  • Pulling Diameter of 40” MBD (101cm), 600lbs (2700N) Max Cable Tension Load. *Always refer to recommended guidelines from cable manufacturers
  • Suitable for Cables up to 1.75″ in Diameter
  • Weight: 9lbs
