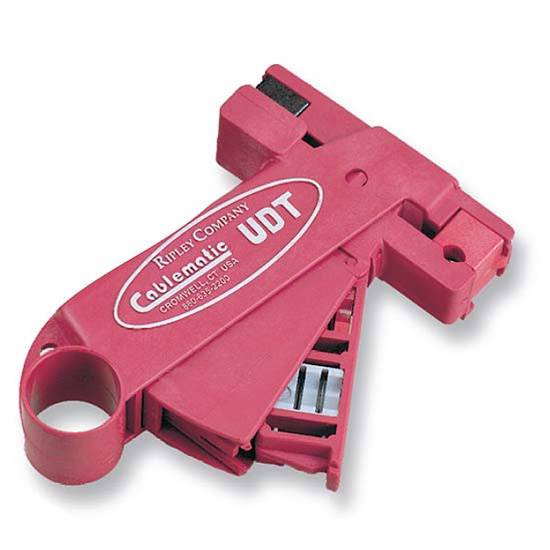

Ripley Cablematic UDT59611-250 Universal Drop Trimmer - 59, 6, N48, 7, 11 & 11Q Coax
The Universal Drop Trimmer from Ripley has a unique one step prep that exposes the center conductor and removes the jacket from all 59, 6, N48, 7 and 11 drop cable constructions as per SCTE and Bellcore specifications. The UDT59611-250 is specifically designed to expose the center conductor by 5/16" (7.93 mm) and remove the proper length of jacket at 1/4" (6.35 mm).
Features:
Inter-changeable blade cassettes available
Blade cassettes color-coded and marked with cable series type and braid preparation dimensions for easy identification
Unique cassette storage compartment holds two extra cassettes
Built-in strip stops
High impact, Hi-Visibility Red polymer construction
Compact size fits in one hand
No adjustments or extra tools required
Specifications:
Note: Series 59, 6 and 7 cassettes are to be used in tool cavity Side (A) only, Series 11 and 11Q in the opposite cavity only
Note: Tool is not intended for Plenum Series Cable Construction
Prepares Cables: 59, 6, 7, 11, 11Q, N48
Conductor Exposure: 5/16" (7.93 mm)
Jacket Removal: 1/4" (6.35mm)
Cable Access: Mid-span, end
Material: Impact-resistant polymer
Length: 5.5" (139.7 mm)
Weight: 4.5 oz (127 g)
Model: 35220
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| RC596250 | 35241 | Red - 59, 6, N48 blade cassettes (2 pack) |
| RIP-35242 | 35242 | Green - 7 blade cassettes (2 pack) |
| RIP-35243 | 35243 | Black - 11 blade cassettes (2 pack) |
| RIP-35244 | 35244 | Gray - 11Q blade cassettes (2 pack) |
Feature Sheet & Sizing Info
|
|
|
