New!  Ripley MSAT X Dual Channel Fiber Access Tool

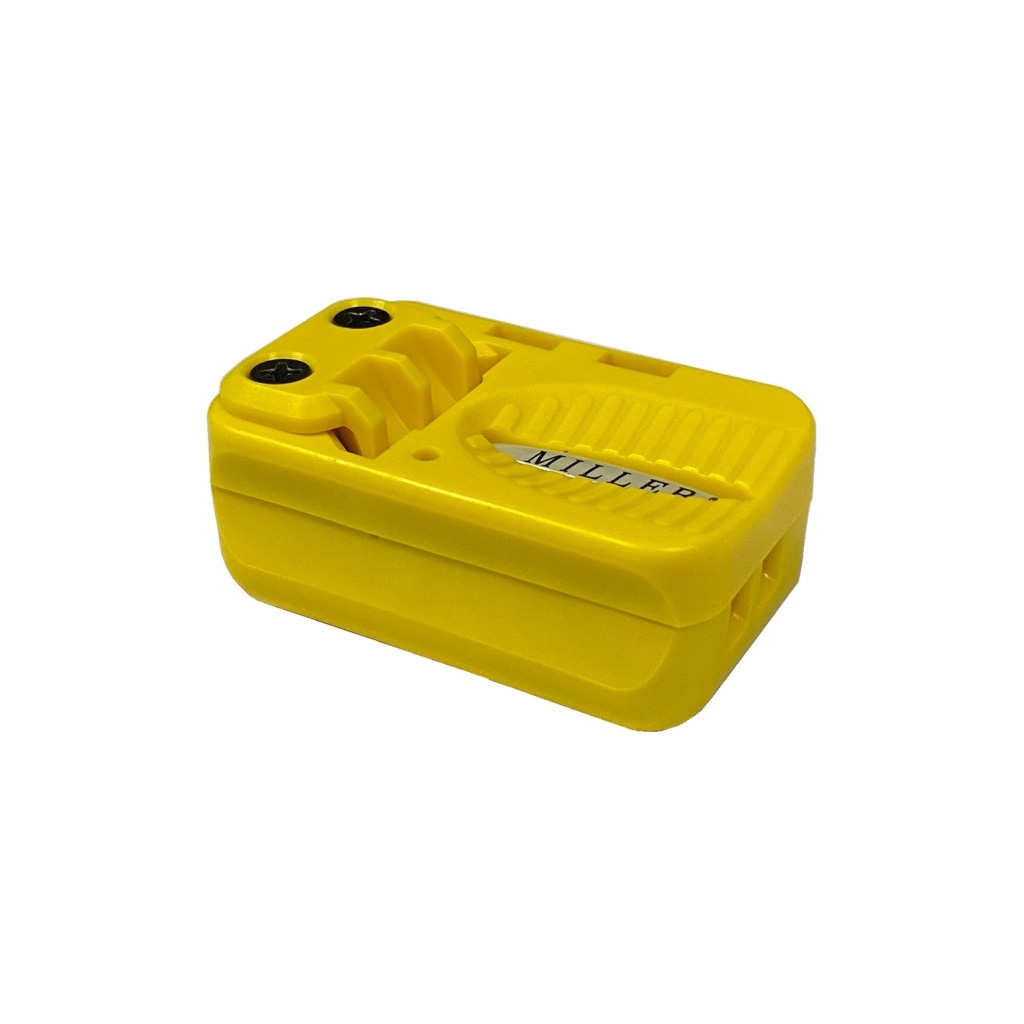

Ripley MSAT X Dual Channel Fiber Access Tool




Alternative Views:


TTS PRICE: $78.99

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: RIP-MB10-7000
QUANTITY:

PRODUCT DESCRIPTION

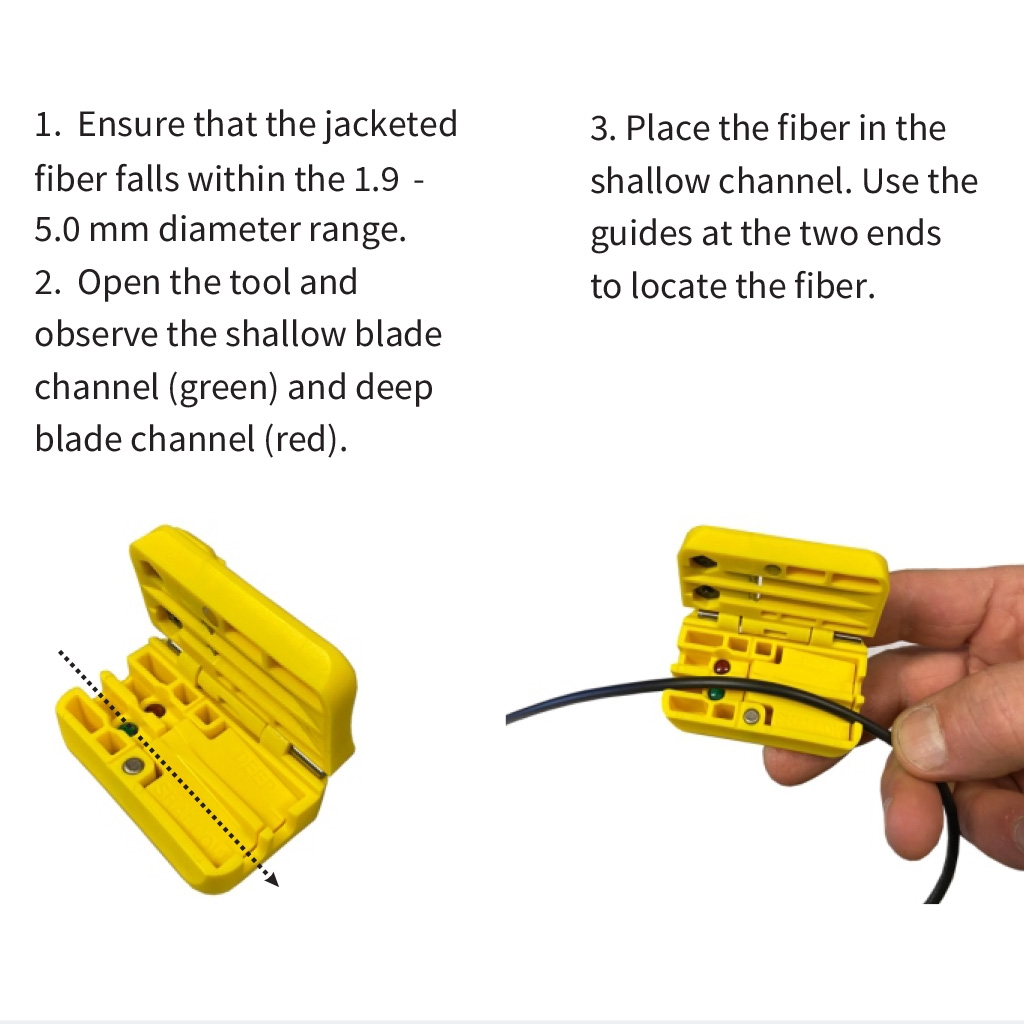

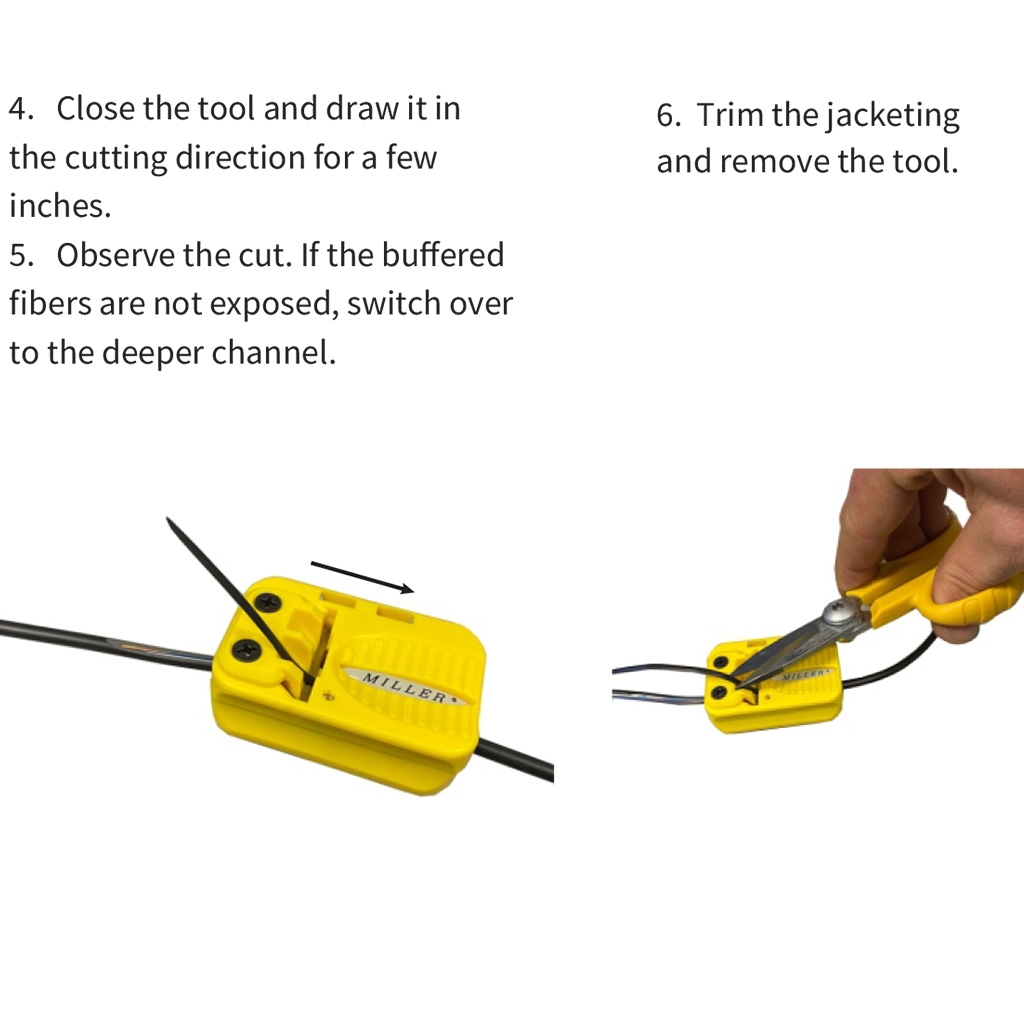

Introducing the new MSAT-X from Miller« from Ripley Miller, a versatile shaving tool designed to gain mid-span access to bare or buffered fiber found in a variety of MDU and FTTx jacketed cables. Equipped with a unique spring-loaded plate and dual stripping channels, the patent-pending design enables engineers to load 1.9 to 5 mm diameter cables into the same cutting blade without a sizing gauge.

Features:
  • Two blade depths to accommodate a variety of cable jacket thicknesses
  • Dual cable channels for ultimate flexibility
  • Patent pending spring loaded channel plate design
  • Hinged lid locates the cables reliably & quickly for maximum efficiency
  • Factory-set blade & cutting depths require no adjustments
  • Versatile deep & shallow cutting channels are color coded for easy identification
  • Safe, compact & ergonomic design fits comfortably in hand for easy operation without risk of injury

  • Specifications:
  • Cable Access: Mid-Span, End
  • Min. Cable Outer Diameter: 0.075" (1.9 mm)
  • Max. Cable Outer Diameter: 0.197" (5 mm)
  • Dimensions: 2.25" x 1.5" x 1.125" (57.2 mm x 38.1 mm x 28.6 mm)
  • Weight: 1.8oz (51 g)
  • Replacement Blade Part #: MB10-7500
