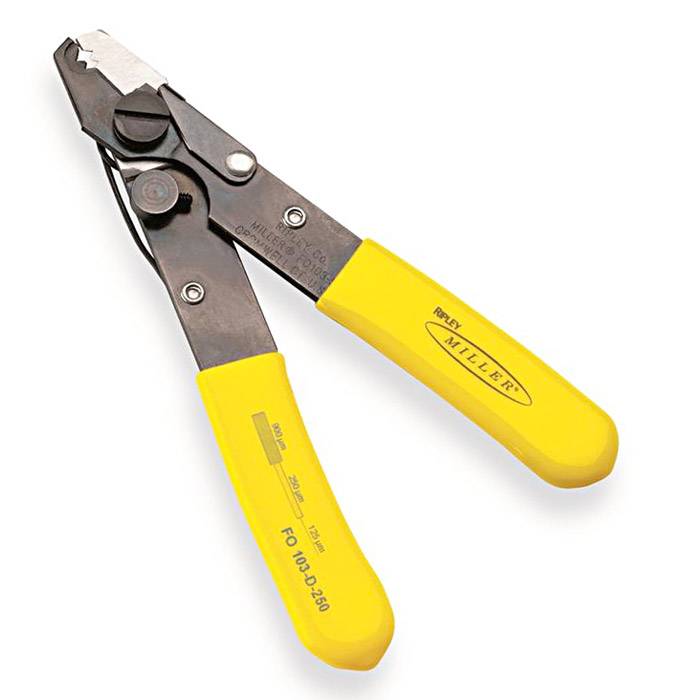

Ripley Miller FO 103-D-250 Two Hole Fiber Stripper

TTS PRICE: $85.09

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: RIP-80675

QUANTITY:

PRODUCT DESCRIPTION

Ripley Miller FO 103-D-250 Two Hole Fiber Stripper - 900 µm to 250 µm & 250 µm to 125 µm

The Ripley Miller Two Hole Fiber Stripper offers the same quality as the standard FO 103-S fiber tool coupled with a second hole. On the FO 103-D-250, one hole strips 600-900 micron tight buffer down to the 250 micron buffer coating and the other handles standard 125 micron fiber stripping (250 micron removal to 125 micron), allowing longer stripping lengths without damaging the fiber.

For stripping 1.6-3 mm jacket instead of tight buffer, see the FO 103-D-J.

Features:

Precision diameter hole & V-opening in blade allow for accurate buffer coating removal

Pivot pin, spring and precision handles enhance tool functionality and durability

Factory set, requires no adjustment

Prevents scratching or nicking of optical fiber

Easy-to-read stripping diagrams imprinted on handles

All cutting surfaces are precision formed, hardened, tempered and ground assuring precise buffer removal

Specifications:

1st Hole: 600 - 900 µm tight buffer → 250 µm buffer coating

2nd Hole: 250 µm buffer coating → 125 µm bare fiber

Length: 5.375" (136.53 mm)

Weight: 2.5 oz (71 g)

Made in the USA

Model: 80675

Available Models:

Part #	Model	Ripley #	1st Hole	2nd Hole
RIP-80676	FO 103-D-J	80676	1.6 - 3 mm Jacket → 600 - 900 µm Tight Buffer	250 µm Buffer Coating → 125 µm Bare Fiber
RIP-80675	FO 103-D-250 (this item)	80675	600 - 900 µm Tight Buffer → 250 µm Buffer Coating	250 µm Buffer Coating → 125 µm Bare Fiber

FO 103 Instruction Sheet
