Miller 80910 Ripley Miller Fiber Optic VFL w/ Adapter

Home > Categories > Fiber Prep & Termination > Test Equipment >

Ripley Miller Fiber Optic VFL w/ Adapter

TTS PRICE: $114.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: RIP-80910

QUANTITY:

PRODUCT DESCRIPTION

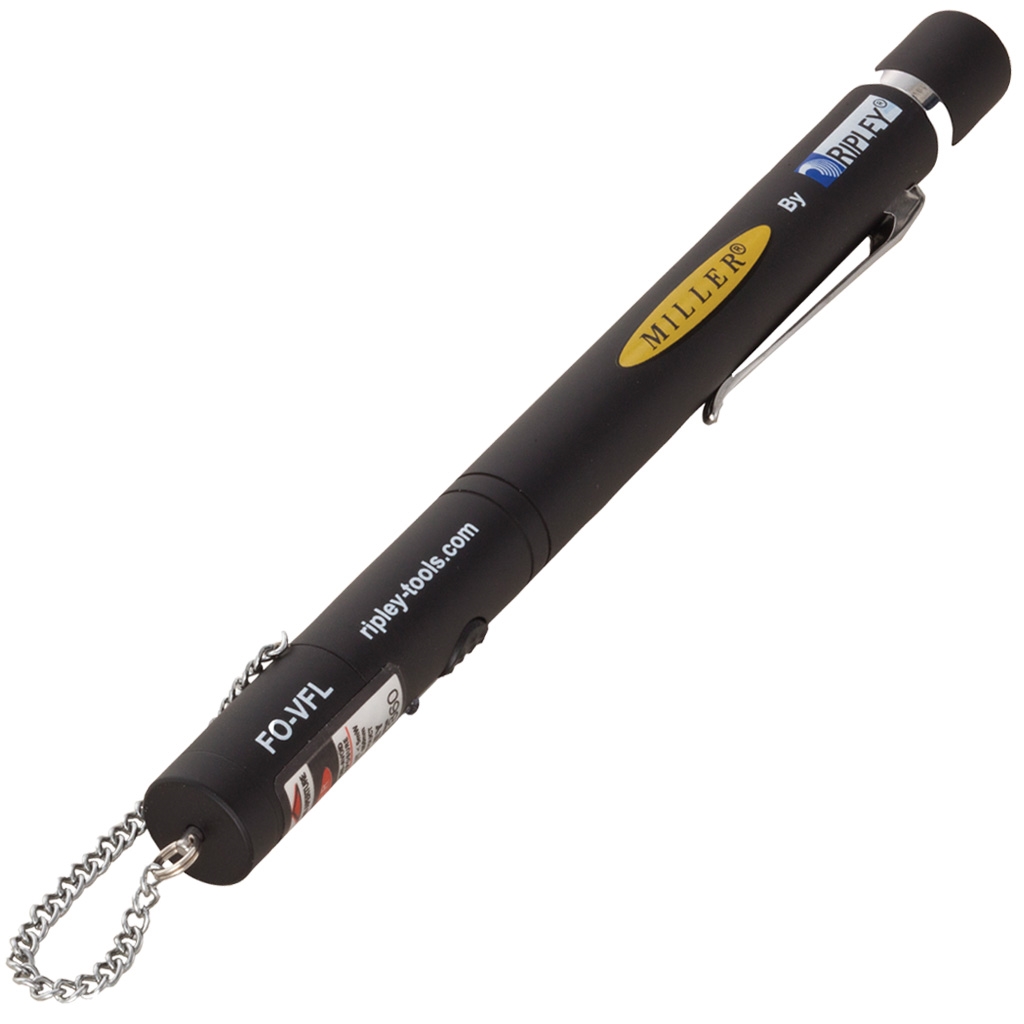

Ripley Miller FO-VFL Visual Fault Locator - 650 nm Red Laser with 2.5 mm Universal Adapter

The Miller® Fiber Optic Visual Fault Locator (FO-VFL) is a visible laser light source that helps you trace optical fibers, check fiber continuity, find faults such as breaks, bad splices, and tight bends in fiber optic cable.

Features:

Efficient & economical tool for detecting fiber breaks, fiber leaks, stress points & faulty connectors

Slim, pen-style design emits a 650 nm visible red laser diode to detect faults in single & multi-mode fiber

Universal adapter for optical connectors with 2.5 mm ferrules including FC, SC, ST, E2000 & APC

LED indicator signals laser power status, continuous laser mode, pulse laser mode & low battery

Additional power button prevents accidental activation of the laser & unnecessary battery usage

Laser class 3A, CE & RoHS compliant

Includes:

2 x 1.5V AAA batteries

1 x Cushioned vinyl carrying case

1 x Lens cap

1 x Instruction sheet

Specifications:

Wavelength: 650 nm visible red laser

Laser Class: 3A

Output Power: 0.5 mW to 5 mW

Connector Type: 2.5 mm, 1.25 mm

Max Transmission Length: Single Mode 4.35 mi. (7 km), Multi-Mode 1.86 mi. (3 km)

Average Laser Life: 3000 hours

Compliance: CE, RoHS

Model: 80910

Available Models:

Part #	Model	Ripley #	Connector	Output Power
MIL-R80920	FO-VFL (device only)	R80920	2.5 mm	0.5-5 mW
RIP-80910	FO-VFL with 1.25 mm adapter (this item)	80910	2.5 mm and 1.25 mm	0.5-5 mW

FO-VFL Instruction Sheet
