UtilityTool by Ripley Tools SCS MAX Semi-Con Scoring Tool - 38-78mm Cable, Inch Scale

UtilityTool by Ripley Tools SCS MAX Semi-Con Scoring Tool - 38-78mm Cable, Inch Scale


Alternative Views:


TTS PRICE: $707.07

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-US05-7100
QUANTITY:

PRODUCT DESCRIPTION

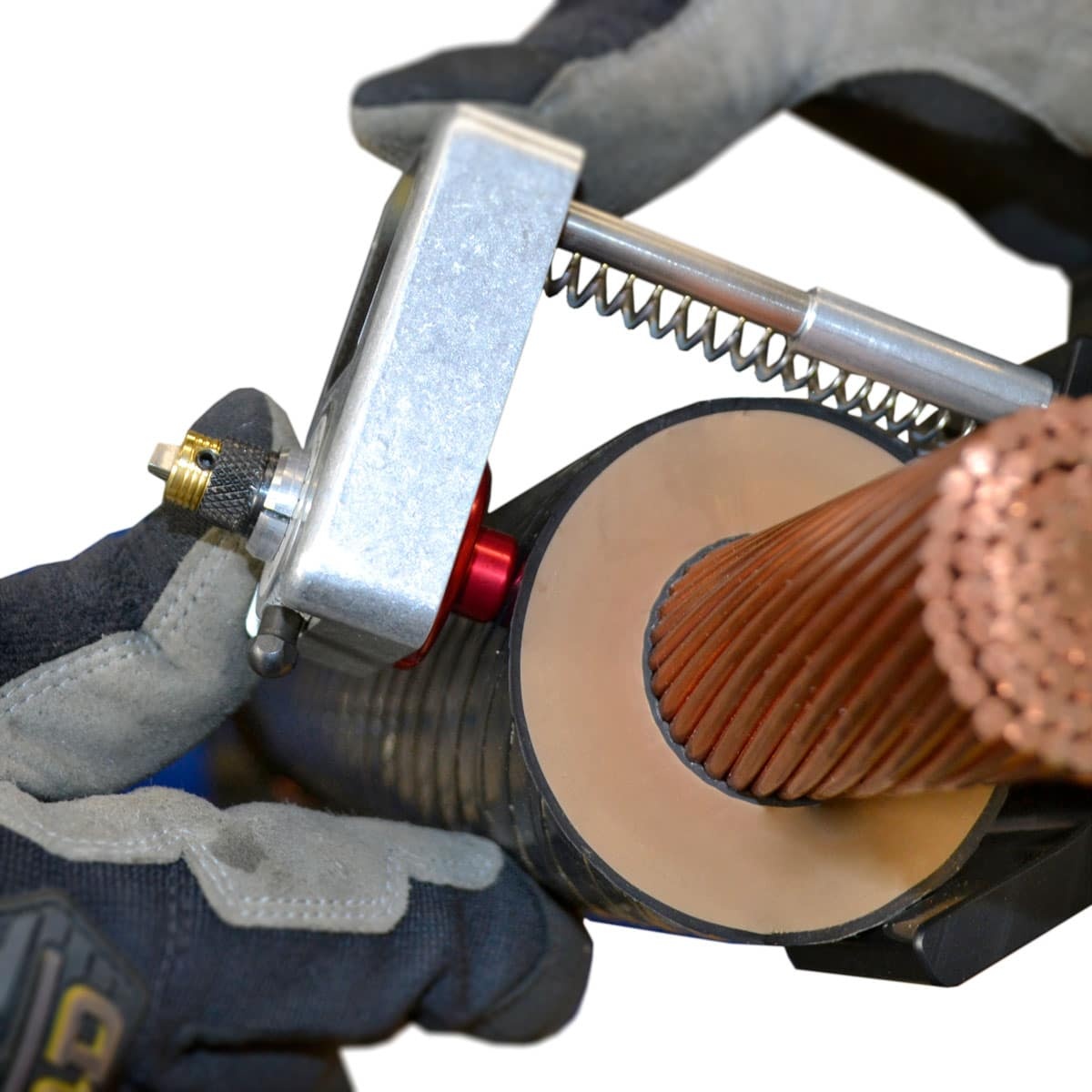

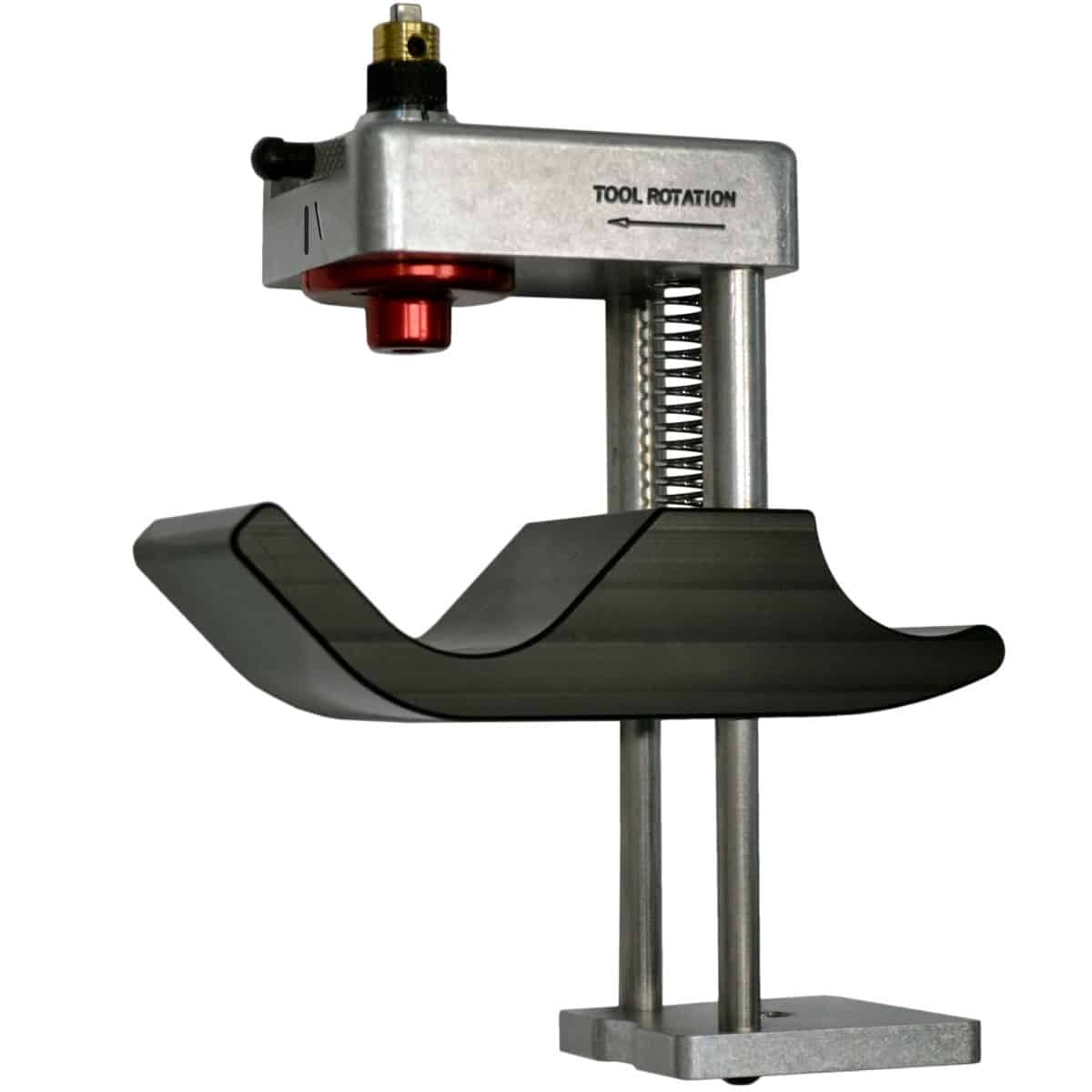

The UtilityTool SCS MAX makes precision-depth score cuts on large diameter power cable with strippable semi-con.
It is the extended version of the SCS: cable from 1.50in to 3.07in (38-78 mm) over the semi-con screen, scoring up to 0.16in (4 mm) deep.

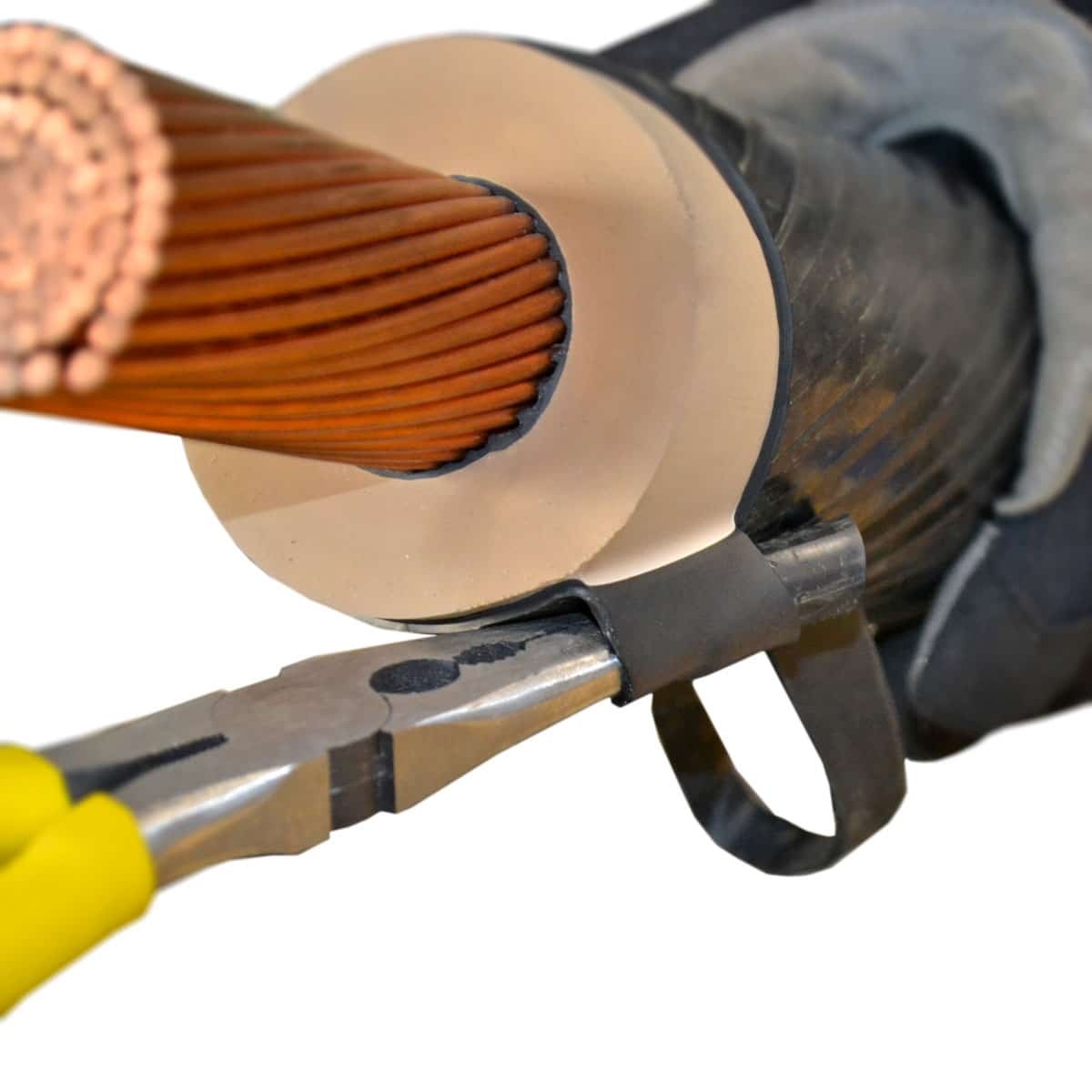

It scores the semi-con without touching the insulation, and it replaces stripping knives - so fewer cuts and lacerations.

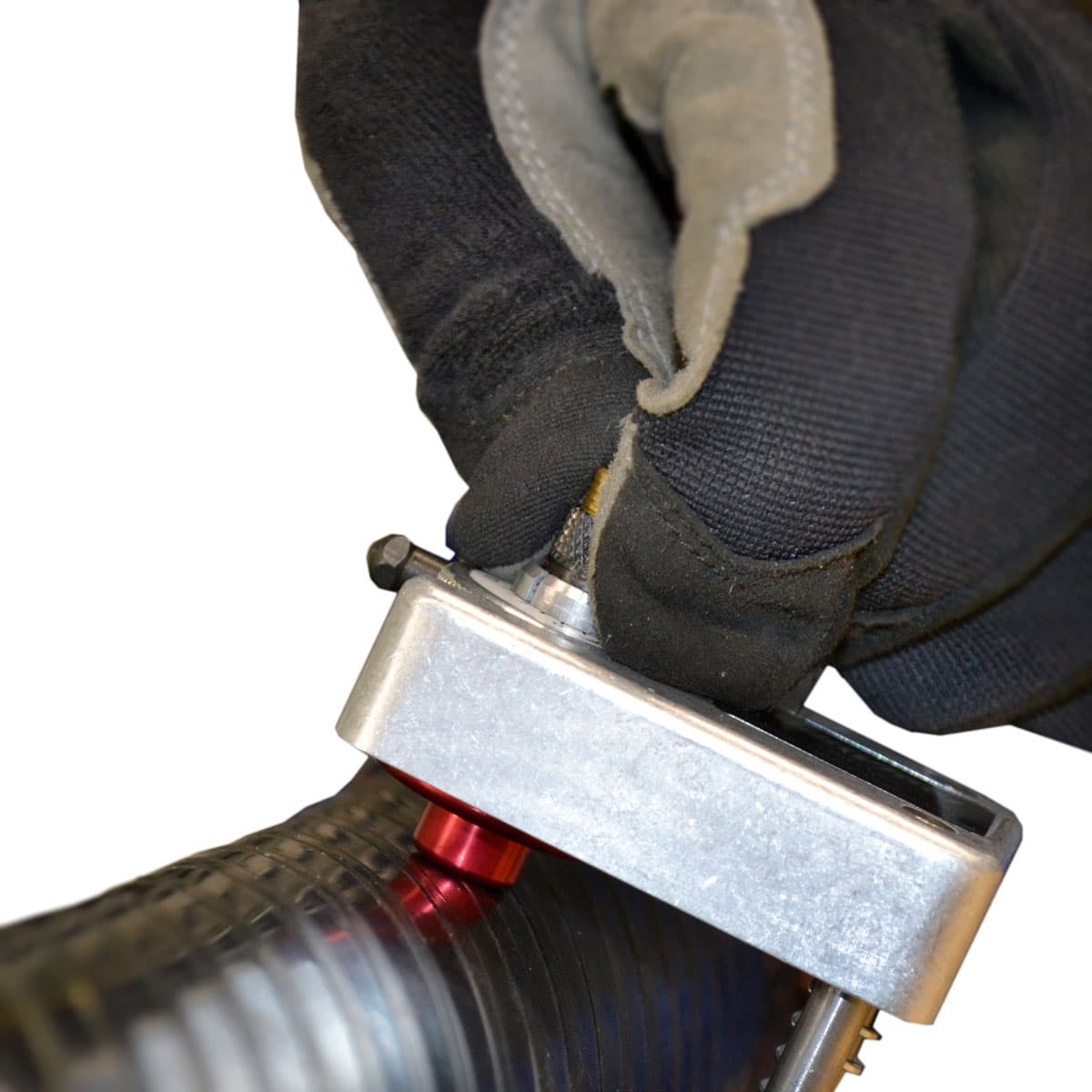

Blade depth adjusts from 0 to 0.16in in 0.002in steps on this inch-scale model, and the tool works inside a 4in envelope on large cable.

Features:

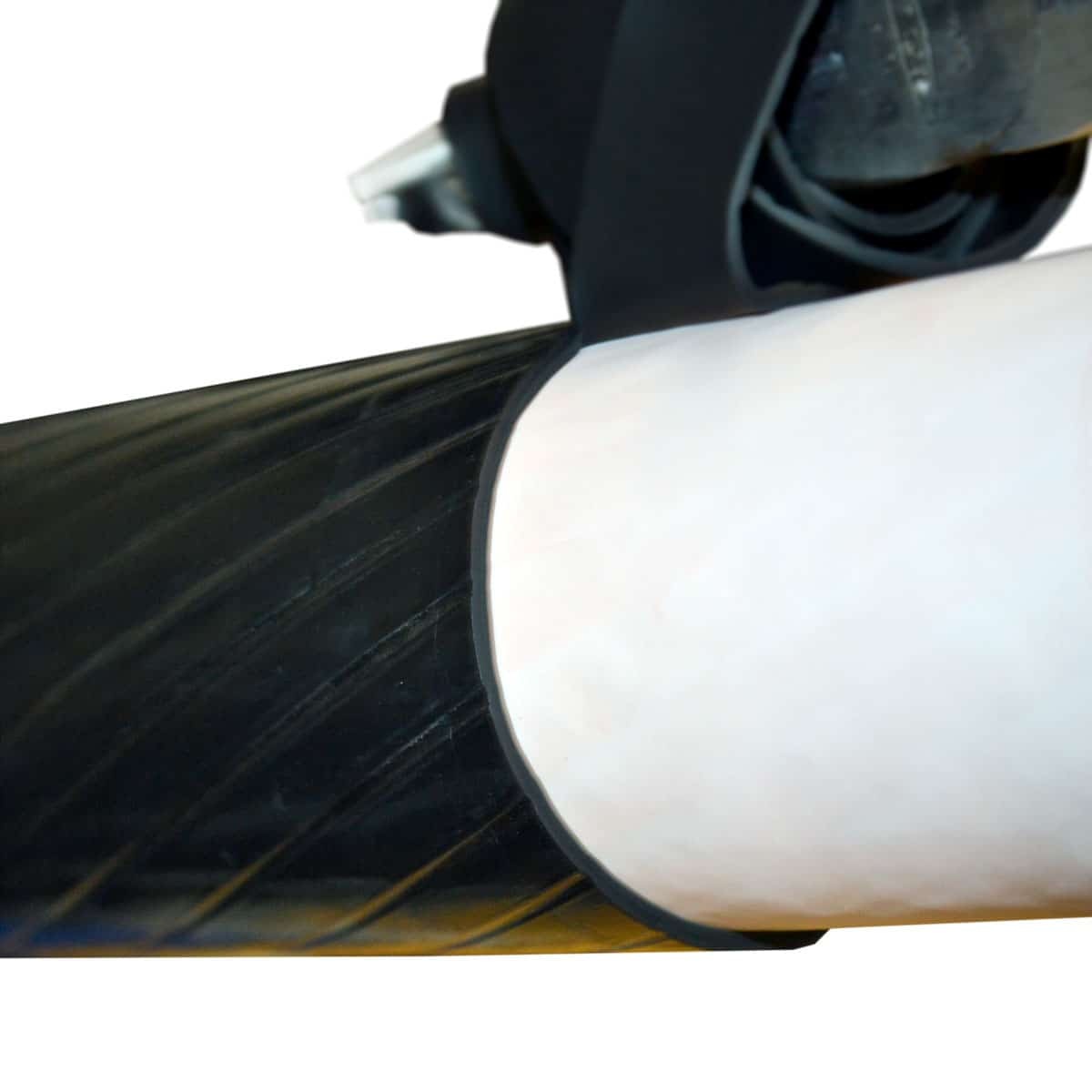

  • Spiral and calibrated square score cuts on 1.50-3.07in (38-78 mm) cable
  • Scores semi-con without damaging the insulation
  • Blade depth 0-0.16in (0-4 mm), adjustable in 0.002in increments
  • Works within a 4in (101.6 mm) envelope
  • Inch (customary) cable guide scale - metric version is US05-7101
  • Replaces traditional stripping knives
  • Replacement blade assembly: 43645

Specifications:
  • Model: Ripley UtilityTool US05-7100
  • Cable OD: 1.50-3.07in (38-78 mm)
  • Blade Depth: 0-0.16in, 0.002in increments
  • Scale: Inch
  • Cutting Type: Radial, Spiral
  • Dimensions: 8.94 x 4.99 x 2in
  • Weight: 12 oz (340 g)
  • Replacement Blade: 43645
