Simply45 Cat5e PassThru RJ45 w/Cap45 - 50pc

Simply45 Cat5e PassThru RJ45 w/Cap45 - 50pc




Alternative Views:
TTS PRICE: $33.23

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1501P
QUANTITY:

PRODUCT DESCRIPTION


Simply45® PROSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45®. Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

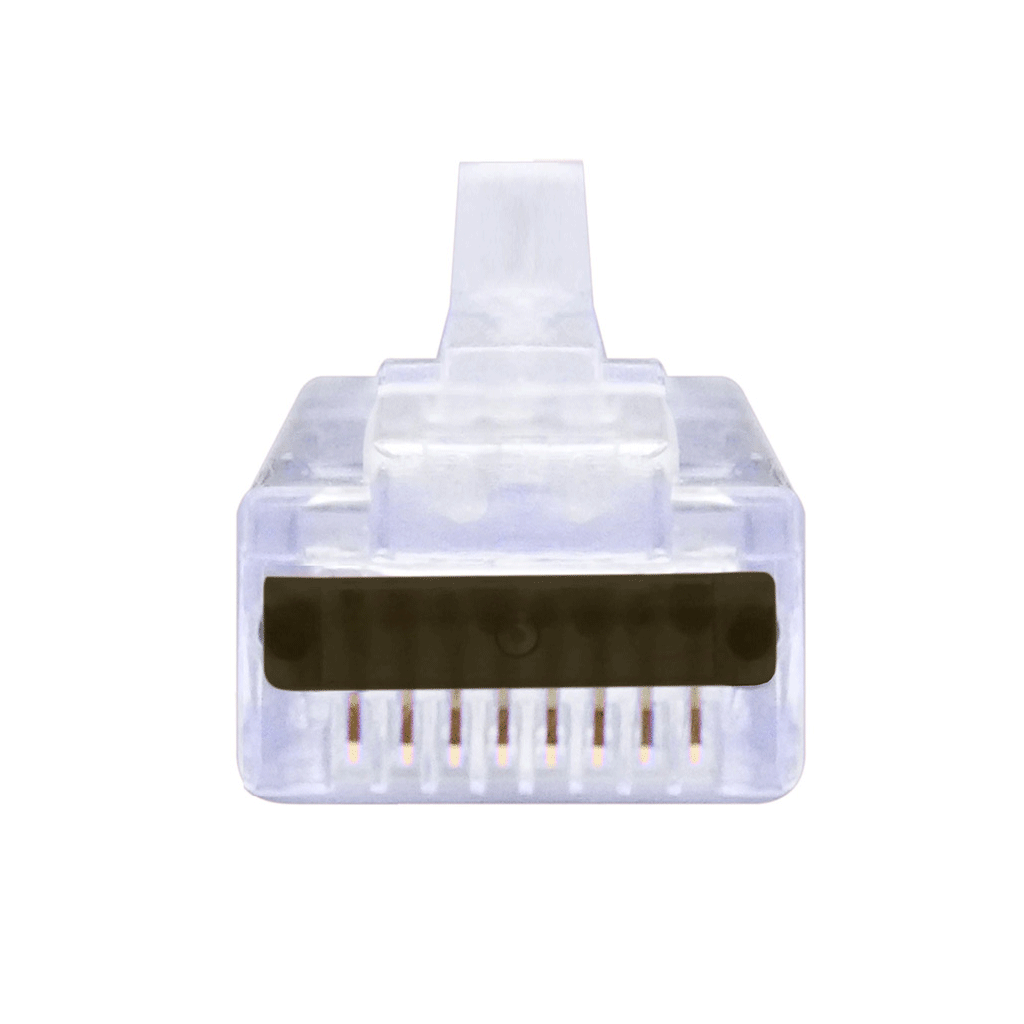

The 1501P introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely.

If you don’t want to use Cap45®, no problem. It will not affect plug performance. You just won’t have the Cap45® benefits.

Features:

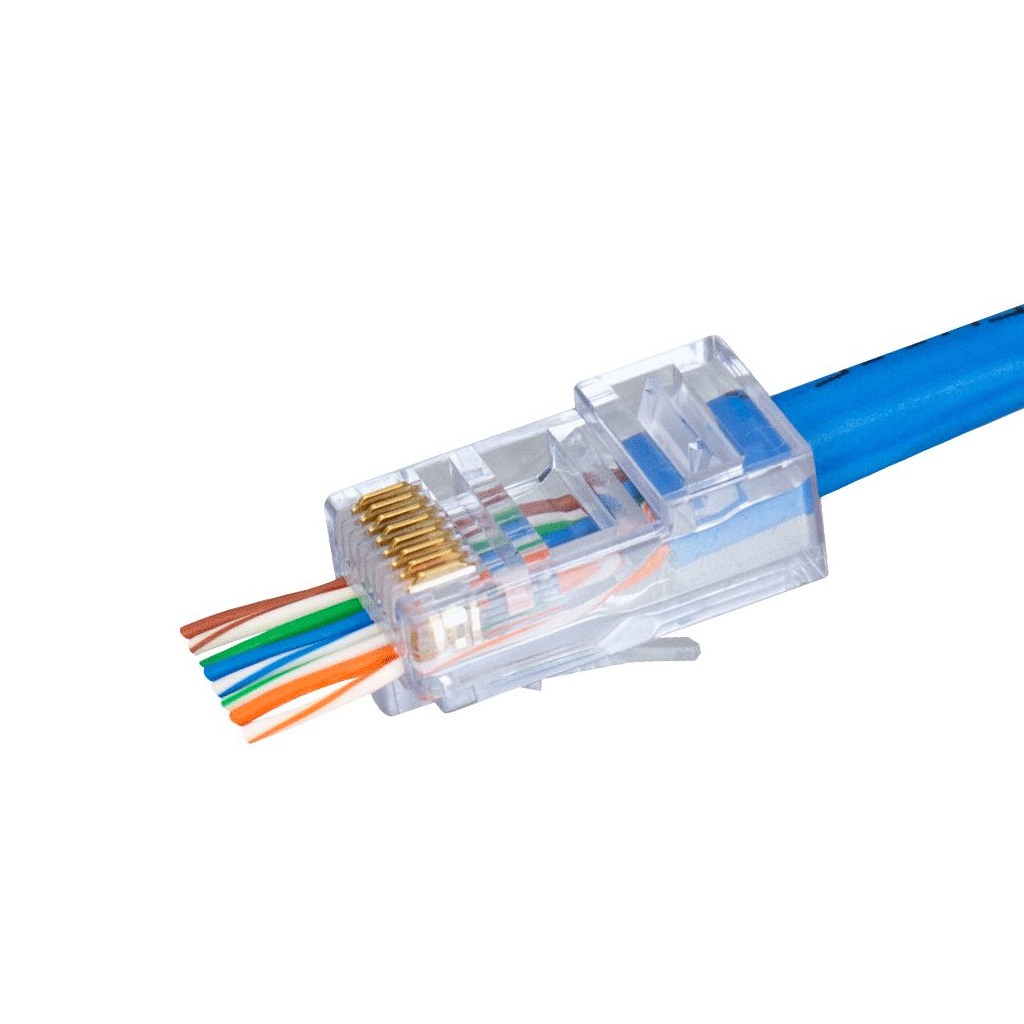

  • Single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar is required.
  • Supports 10GBaseT performance applications over unshielded twisted pair cables
  • Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends
  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • True 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs
  • Easily to find to identify the items in your bag or kit

    • Specifications:

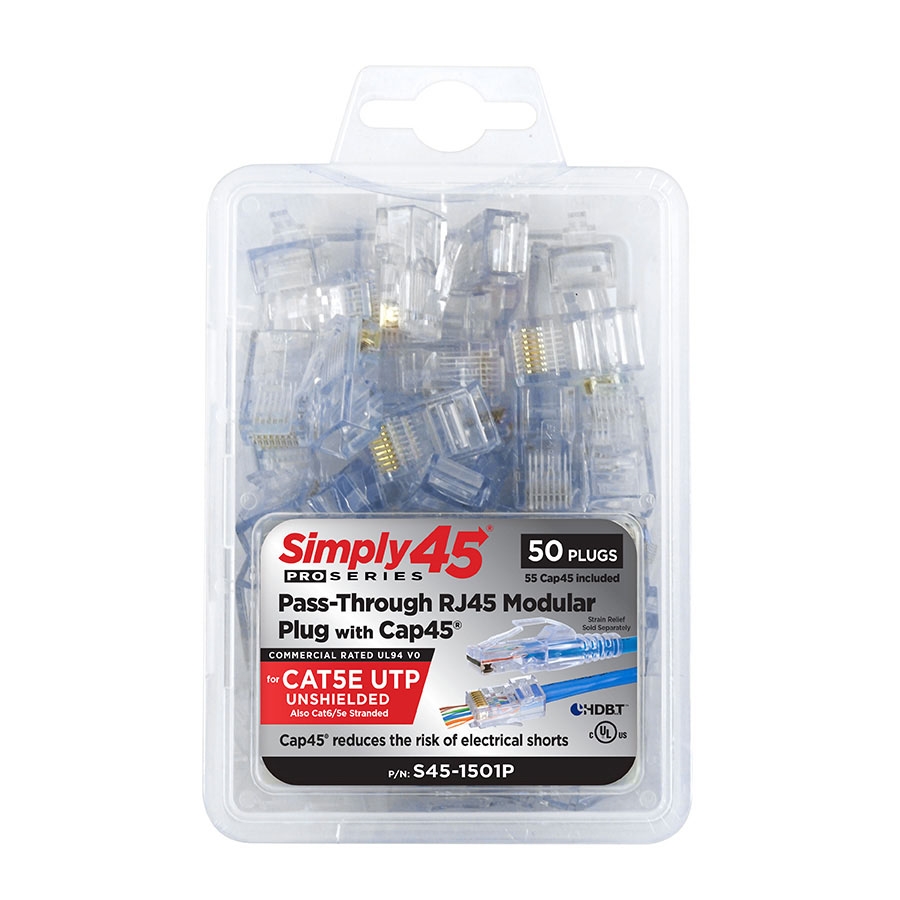

  • Quantity: 50 connectors
  • Max Cable OD 6.5mm (0.255″)
  • 24AWG Solid (Cat5e UTP), 28-26AWG Stranded (Cat5e/6 Stranded)
  • Wire Conductors: 0.95 – 1.05mm/ 0.037″ – 0.041″
  • Performance: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea
  • Compliance: ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC, UL94 V0 Commercial Rated
  • Dimensions (in/mm): 1.6 x 3.2 x 5.1 in / 41 x 81 x 130 mm
  • Weights (lb/kg): 0.250 lb / 0.113 kg
    •
