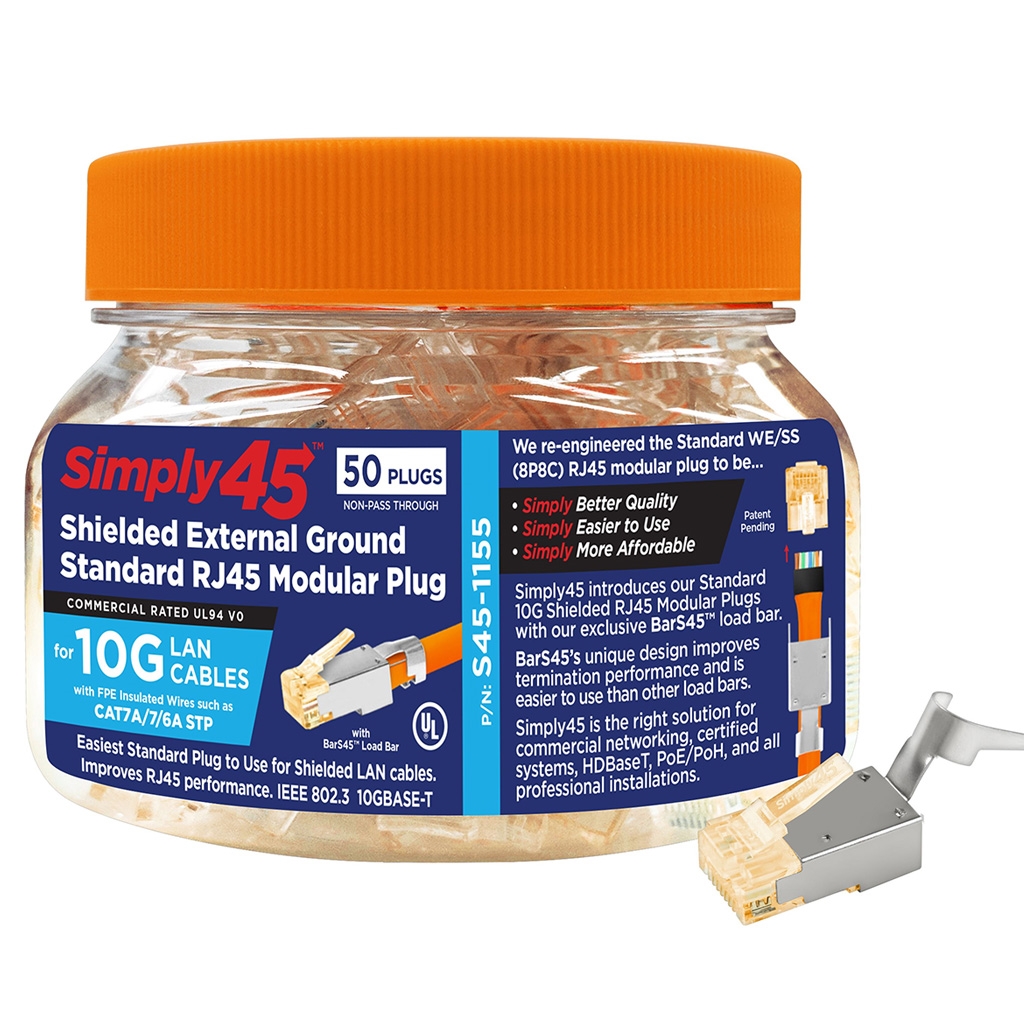

Simply45 Shielded 10G Cat7a/7/6a (external ground) - 50pc Jar

Simply45 Shielded 10G Cat7a/7/6a (external ground) - 50pc Jar




Alternative Views:


TTS PRICE: $90.28

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1155
QUANTITY:

PRODUCT DESCRIPTION


Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a was time consuming, frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar. Of course, you could use an industrial style RJ45 Field Plug connector, but those are expensive and still require more effort than they should. The Simply45® engineering team did extensive testing and development to design a high performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost effective.

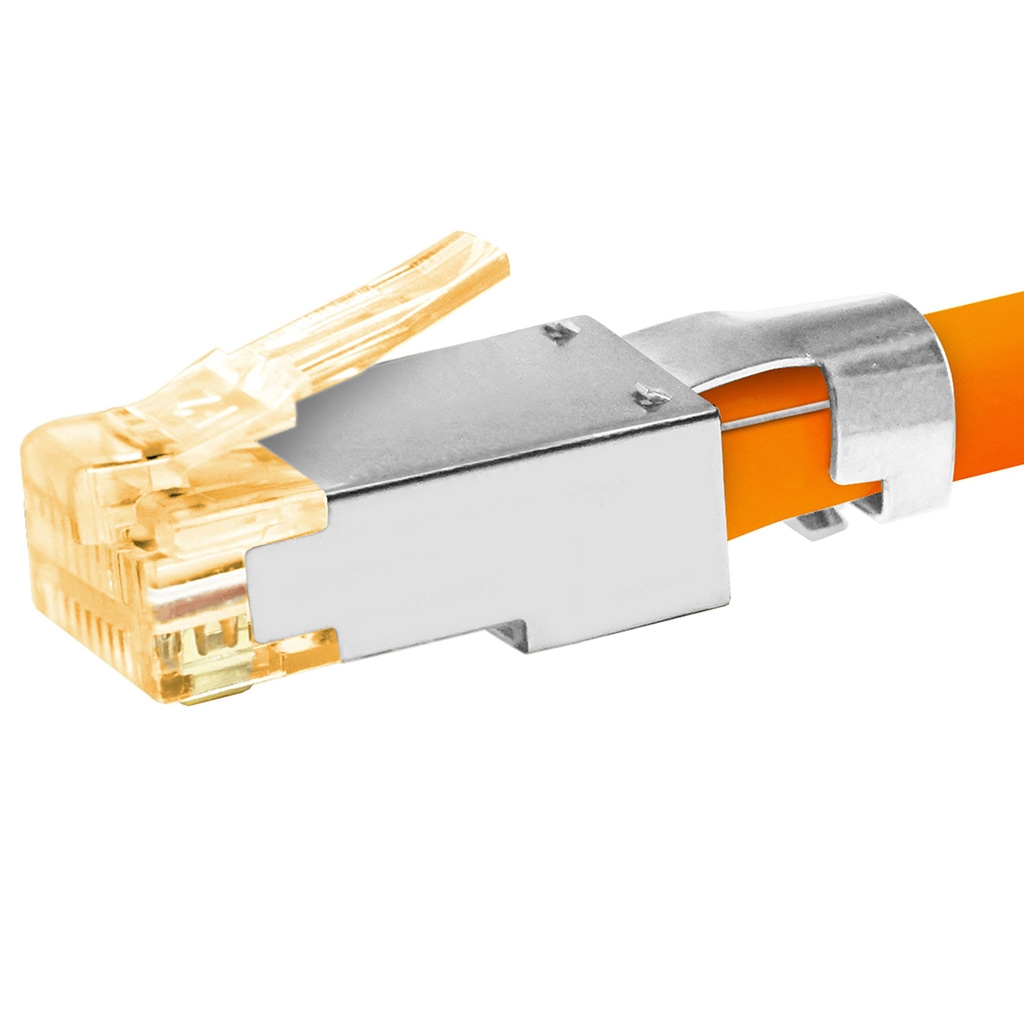

Introducing Simply45's S45-1155 Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires. FPE (foam polyethylene) insulated wires are found on most of today’s 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP and F/FTP LAN cable constructions. The S45-1155 are IEEE 802.3 10GBase-T compliant.

Features:

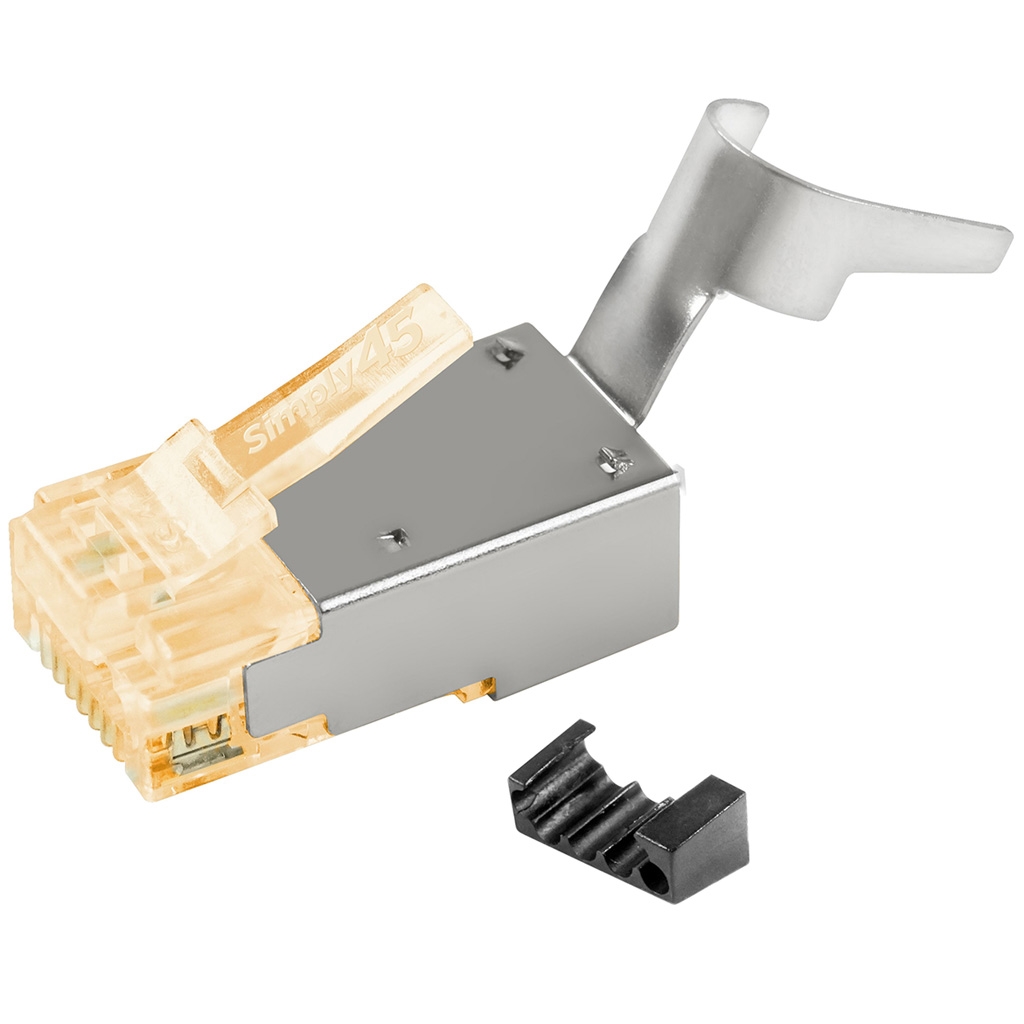

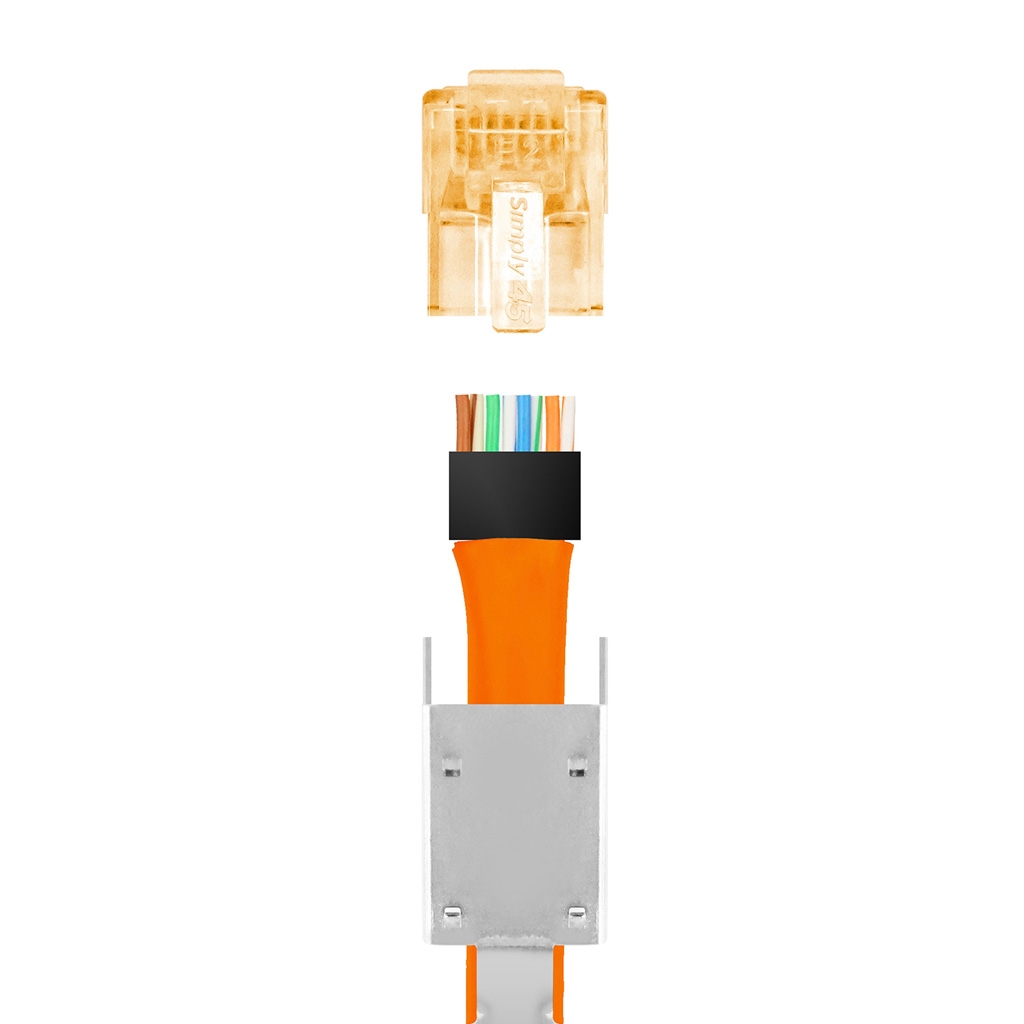

  • Bar45 combined with Simply45’s internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires
  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • Ideal for Solid and Stranded LAN Cables
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs
  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Caps
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

  • Specifications:
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23 AWG: 1.21mm - 1.45mm (0.047” - 0.057”)
  • Max LAN Cable OD: 8.0mm (0.315”)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
