Simply45 Shielded Pass Through Cat7a/7/6a/6 STP - 50pc Jar

Simply45 Shielded Pass Through Cat7a/7/6a/6 STP - 50pc Jar




Alternative Views:


TTS PRICE: $122.95

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1755P
QUANTITY:

PRODUCT DESCRIPTION

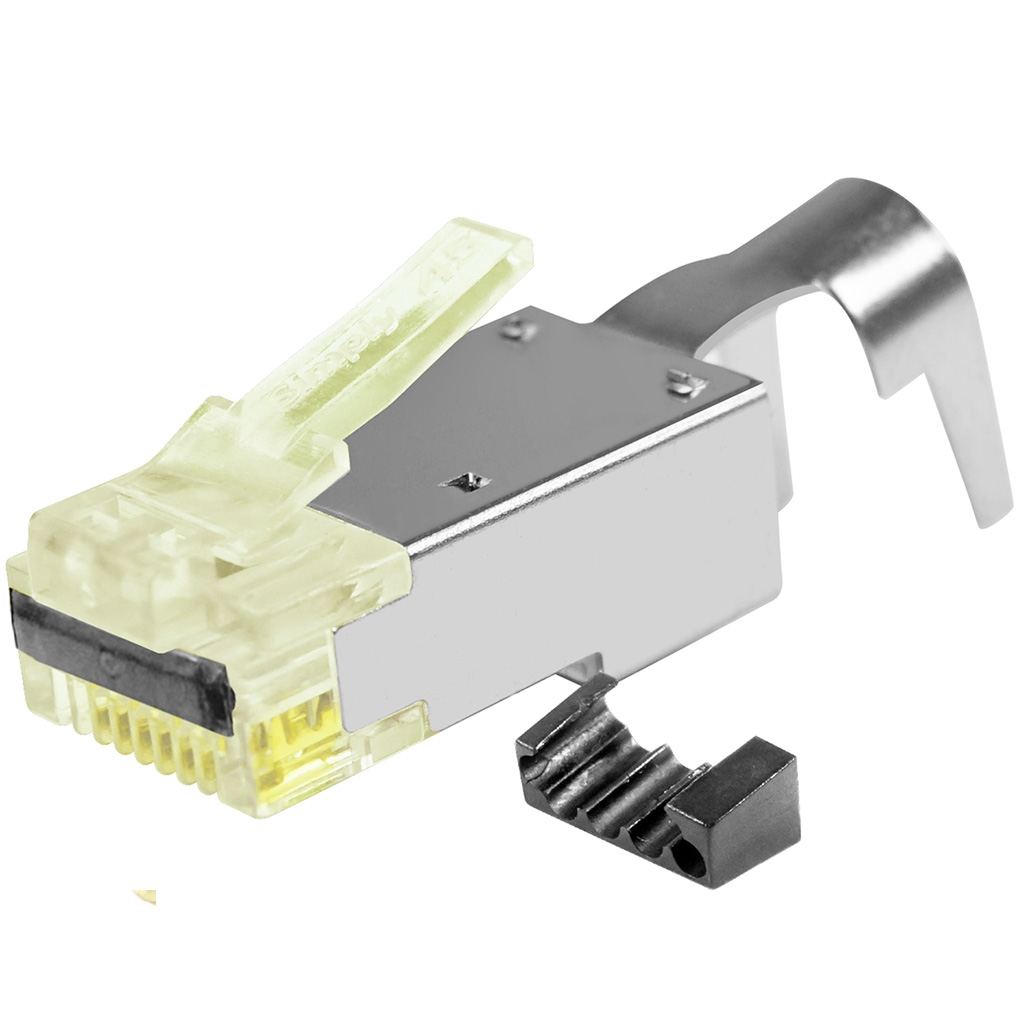

Simply45® the industry leading brand for RJ45 modular plug innovation and performance solutions introduces their ProSeries Shielded with External Ground Pass Through RJ45 Modular Plug, S45-1755P. The uniquely designed and patented Simply45® ProSeries S45-1755P simplifies and improves the terminated plug performance for shielded 10G LAN cables. The Simply45® ProSeries S45-1755P Pass Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cables.

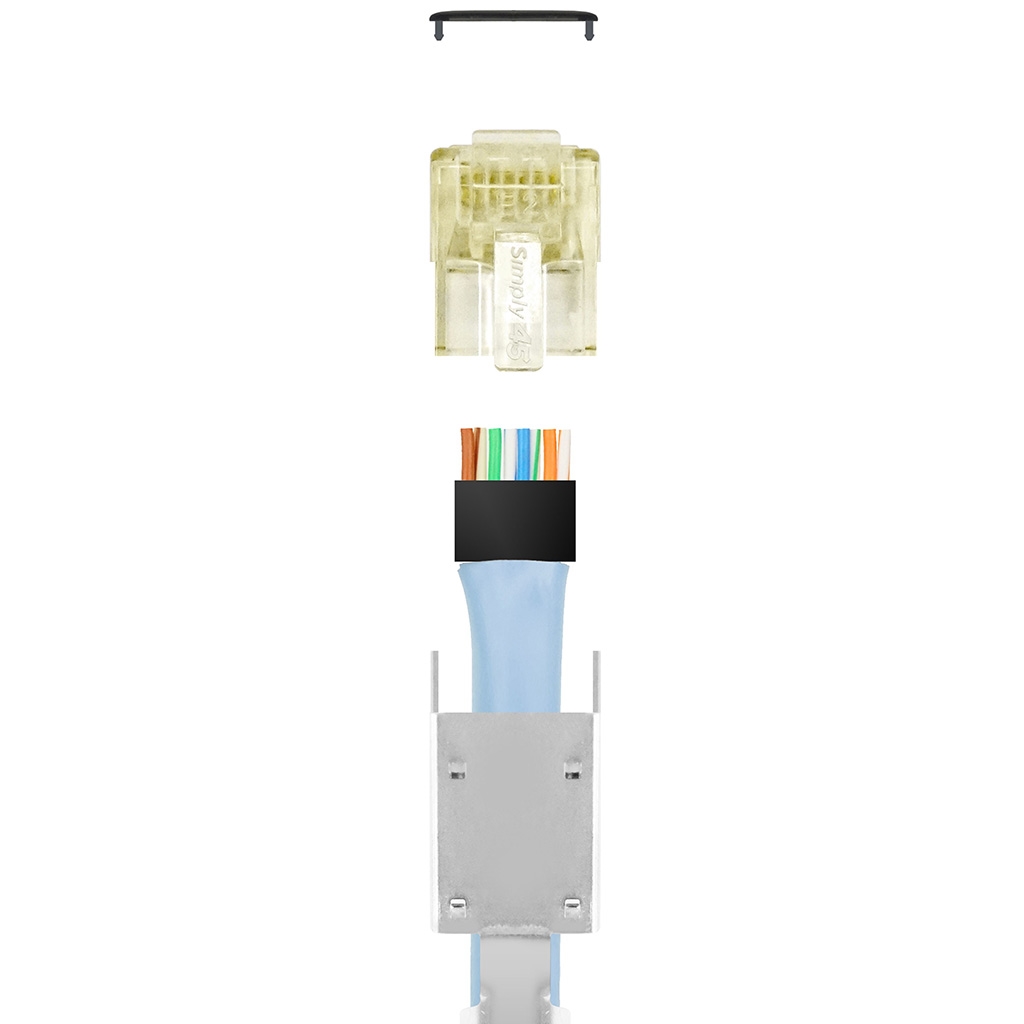

Simply45® ProSeries introduces the exclusive Cap45™ (PATENT: 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents against electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely. Cap45™ is a MUST HAVE for all pass through RJ45 modular plugs used in commercial and certified system terminations.

Features:
  • Two Piece Plug
  • Supports ANSI/TIA 568.2-D for Cat7a/7/6a/6; ISO/IEC 11801 Class F, Ea and E. Supports 10GBaseT performance applications over shielded twisted pair cables.
  • Bar45™ Load Bar is made of a material that provides better signal isolation improving NEXT performance; Improves the signal integrity by reducing the length of open untwisted wires inside the plug; the easiest and fastest load bar to use for 10G LAN cable termination
  • Cap45™ is an isolation cap/bar that snaps onto the front of the pass through RJ45 plug after termination, covering the exposed wire ends
  • High/Low Staggered Wire Insert
  • Accommodates Large Diameter Shielded LAN Cables

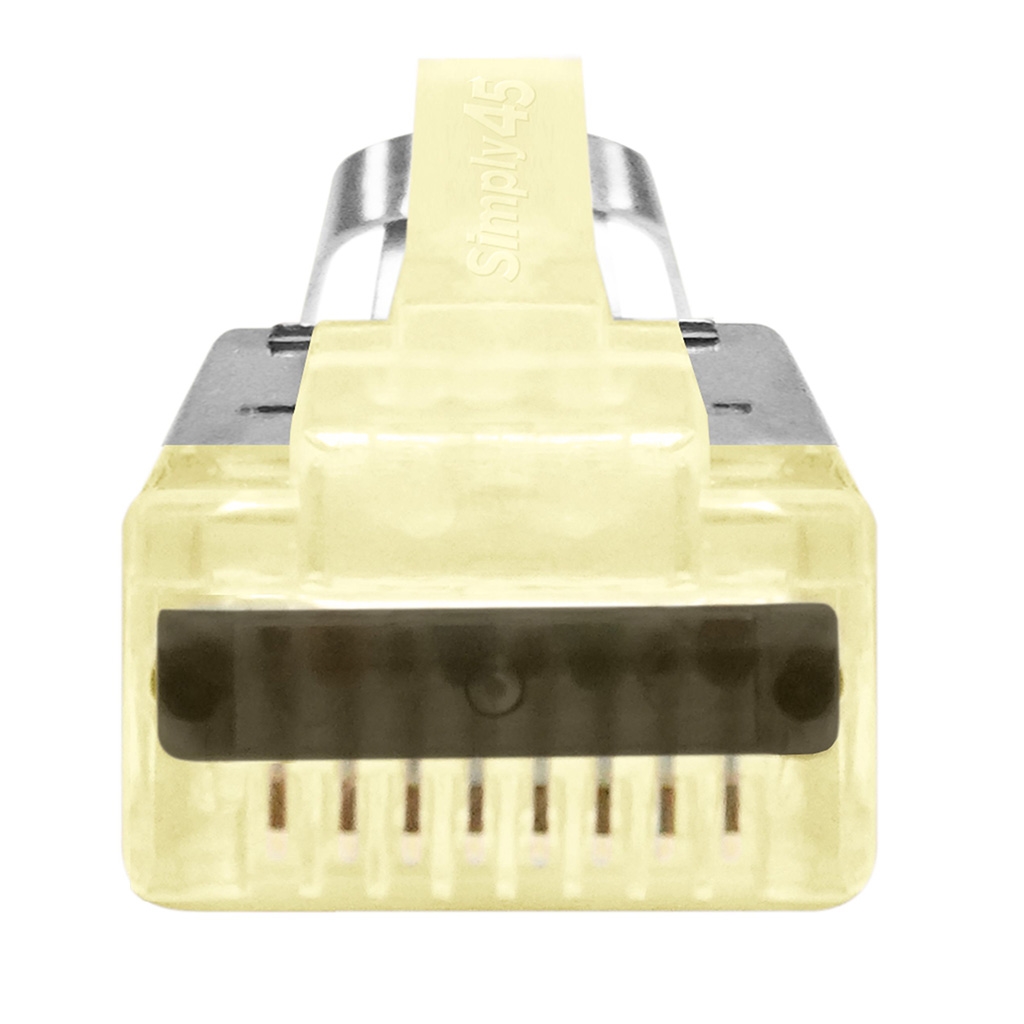

  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • Improved Crosstalk Performance
  • eUL94 V0 (IEC 60695-11-10) rated for all commercial installations, recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables
  • Color Tinted RJ45 Modular Plugs

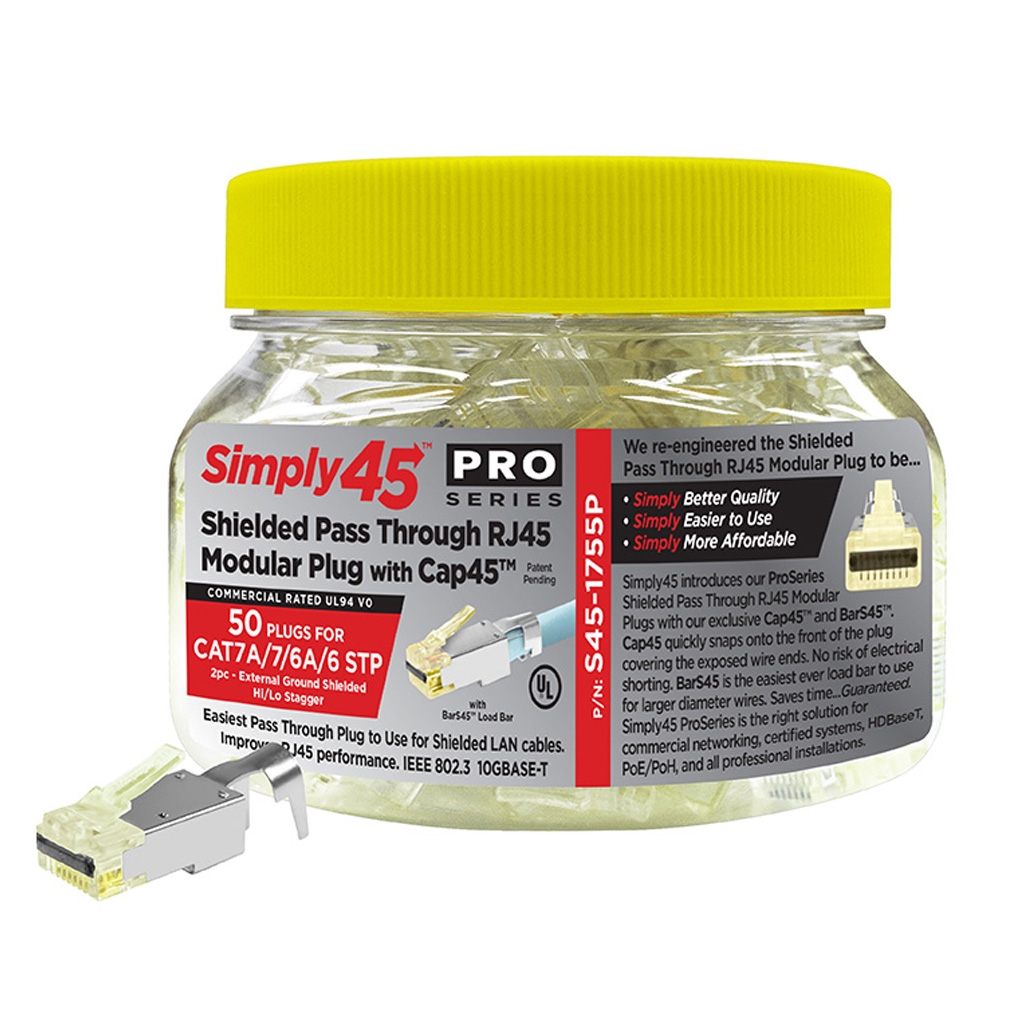

  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Caps
  • UL Listed
  • PoE/PoH Rated
  • Compliant to Industry Standards
  • Lifetime Warranty

  • Specifications:
  • Quantity: 50 pieces
  • Category Cable: Cat6a/7/7a
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23AWG: 1.15mm-1.35mm (0.045”-0.053”)
  • Max LAN Cable OD: 8mm (0.315”)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
