Sub-Band High Pass Filter

Home > Categories > RF Distribution > Diplexers >

TTS PRICE: $3.59

STATUS:

IN STOCK

Availability:

PRODUCT CODE: HPF-54HR

QUANTITY:

PRODUCT DESCRIPTION

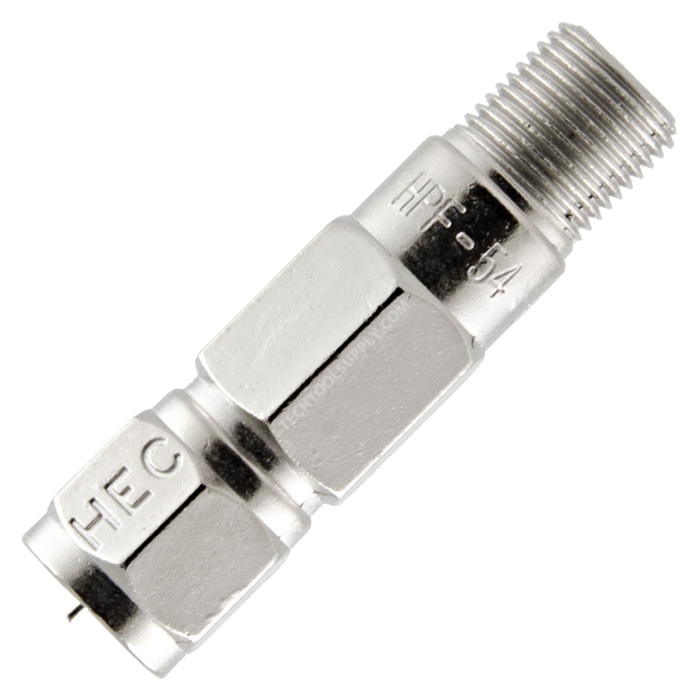

Holland's HPF-54HR high pass filter attenuates ingressive noise in the sub-band section of the cable spectrum to optimize return path services. This filter can also be used to eliminate or restrict user access to the sub-band return frequencies.

Features:

Small Size

Moisture Resistant

High Performance Seizing Pin for Increased Reliability

High Return Loss

High Sub Band Rejection

Specifications:

Frequency Range: 5 - 1000 MHz

Insertion Loss: (54-1000 MHz) 1 dB Max.

Sub Band Rejection: (5-40 MHz) -45 dB Min.

Return Loss: (54-1000 MHz) 20 dB Min.

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 1 WRITE A REVIEW

So far, this Product Review was helpful to 1 TTS Customers.

Very simple solution	January 19, 2018
Reviewer: GF Guy from Detroit MI

These filters are a compact inexpensive solution to the age old problem of sub-band noise. We recently used over 300 of them to block noise created by poorly designed power supplies in a certain TV set model. The noise had crippled normal communication on our cable plant. Once the filters were in place communication returned to normal.
