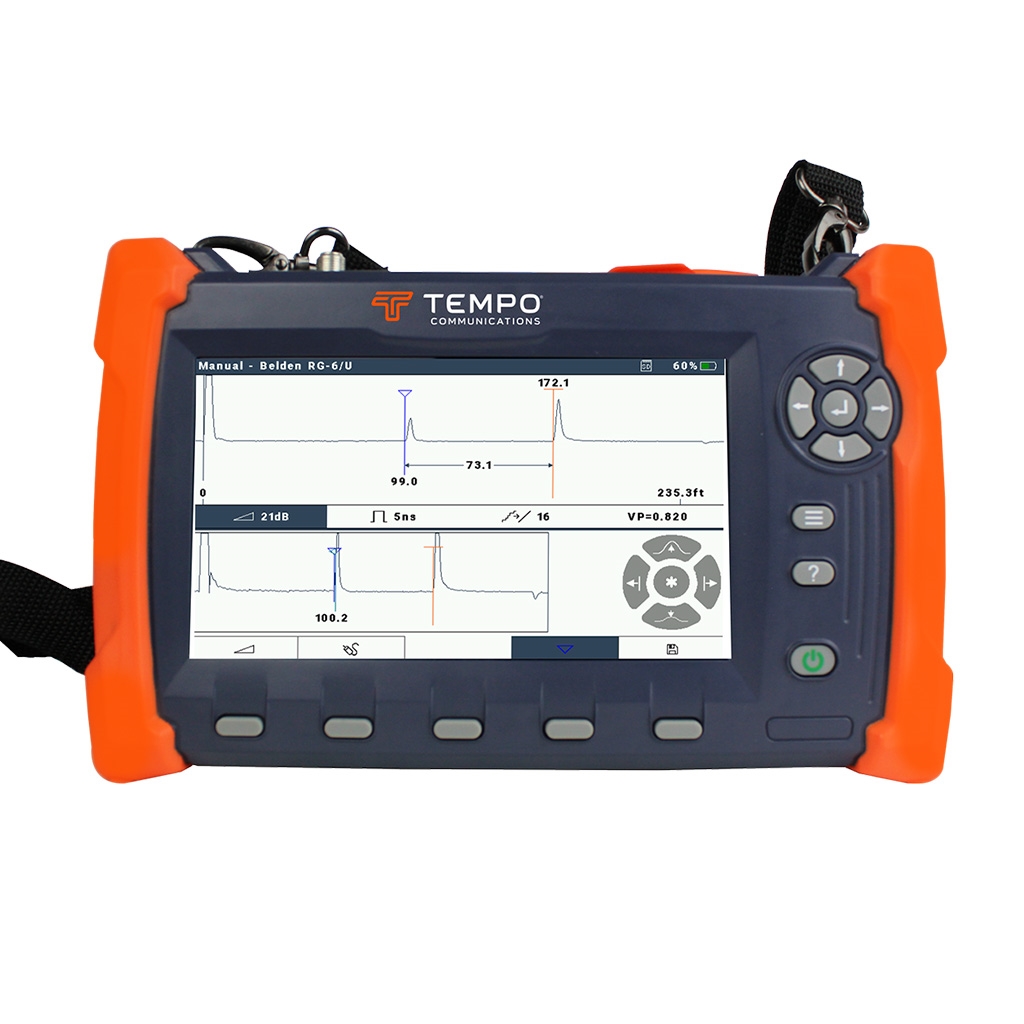

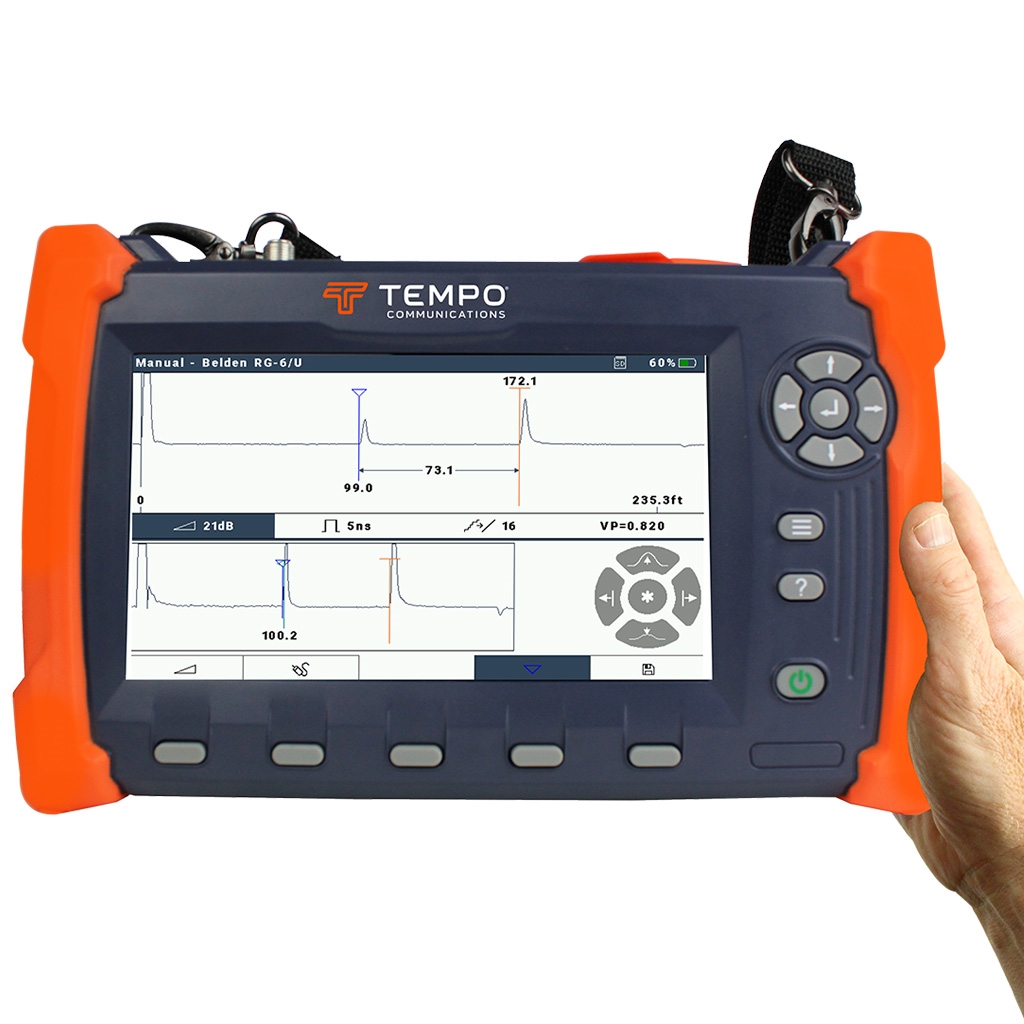

Tempo CableScout CS90 TDR - Pro Kit




Alternative Views:


TTS PRICE: $2,289.99


STATUS: ON ORDER


Availability: Usually Ships in 4 to 6 Weeks
PRODUCT CODE: TEM-CS90
QUANTITY:

PRODUCT DESCRIPTION


Tempo has been the “go-to” source for our advanced CableScout Coaxial Cable TDRs for many years. Used extensively by the CATV industry, CableScout TV90 previously set the standards that others have had to compete with. With CableScout CS90/TV90E we take those standards to a significantly higher level.

CS90 is the “Every Technician” TDR: as cable companies and their contractors can now afford to equip their entire workforce with a modern coax CATV TDR designed for the DOCSIS3.1 era. By applying more affordable modern and future-proof technology Tempo brings the capabilities of a 1 ns pulse and much higher bandwidth within reach of your whole team. Tempo supports this with a robust, ergonomic enclosure, internal lithium-polymer battery pack with fast charging and monitoring, a high-resolution sunlight-readable color display, and a simple intuitive user interface.

CS90 gives the user the option to save screenshots or full-range trace files for later analysis or that can be shared with others. Including “FastFind™” at no additional charge., FastFind is a software feature that automatically scans to find the end of cable or largest event, saving several key presses as the technician gets to the truth of what’s happening on the cable in seconds.

CS90 has multiple operating languages: English, French, German and Spanish at launch and we're working on several more. Software is now updatable in the field; copy the new software to the SD card, power up, select “update” and you’ll have the latest features in seconds. The SD card or a USB flash drive can additionally be used to “clone” cable types and settings between units, allowing deployment to the field force with just the right set of data they need and no other confusing cable types.

Features:
  • Large, Color, HiRes Backlit Display (Readable Outdoors in Bright Conditions)
  • Splash, Dust, and Shock-Resistant Packaging
  • Zero Dead Zone
  • 1, 5 and 25 ns pulse widths standard
  • FastFind™ whole cable overview
  • Protected 75 Ω F Connector
  • Intermittent Fault Location
  • Context-Sensitive Help Available for All Functions
  • Small, Portable, Lightweight Package
  • Internal Cable Types for Fast, Accurate Testing
  • Rechargeable Lithium Ion Battery for 8+ hrs. of use
  • Overview Window Shows Entire Cable & FastFind speeds Navigation to largest event
  • Narrow Pulse Width Enables Near-End Fault ID

  • Specifications:
  • Test Signal: Pulse
  • Type: ½ Sine Wave
  • Width: 1 ns, 5 ns, 25 ns
  • Impedance: 75 Ohm
  • Voltage: >4V Peak
  • Protection*: +/- 400VDC
  • Filtering: 1, 2, 4, 8, 16, 32
  • Size: 262mm x 162mm x 55mm
  • Weight: 900g
  • Operating Temperature: -20 to + 50 (0 to 30 charging) C
  • Storage Temperature: -20 to +60 C
  • Horizontal Resolution: 204 ps (approx. 3”/75 mm)
  • Maximum Distance: 14 kft (4.3 km) @ Vp=0.93
  • Display Resolution: 800 X 480
  • Display Size: 180mm 7” diagonal
  • Backlight Brightness: 1000nits
  • Test Result Storage: SD card or USB drive
  • Battery Type: Li-Ion polymer
  • Battery Capacity: 30 Wh; sufficient for >8 hr use with typical backlight
  • Battery Life: Battery Management System \ optimizes charging and lifetime

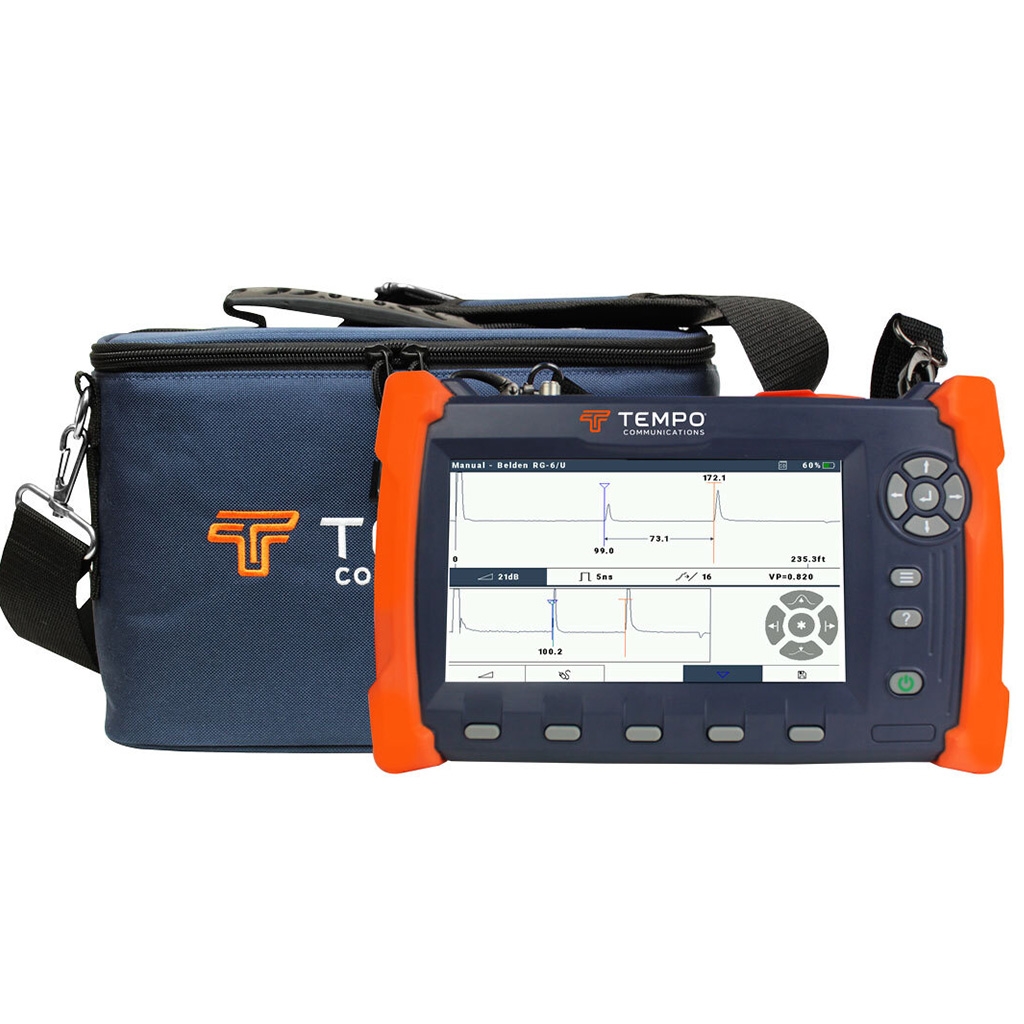

  • Kit Includes:
  • CableScout Main Unit (CS90/TV90E)
  • Universal AC/DC adapter
  • Vehicle 12V power cord
  • F to F "barrel" adapters
  • SV-03 Test Port adapter
  • F to BNC adapter
  • F to alligator clips cord
  • Quick start guide

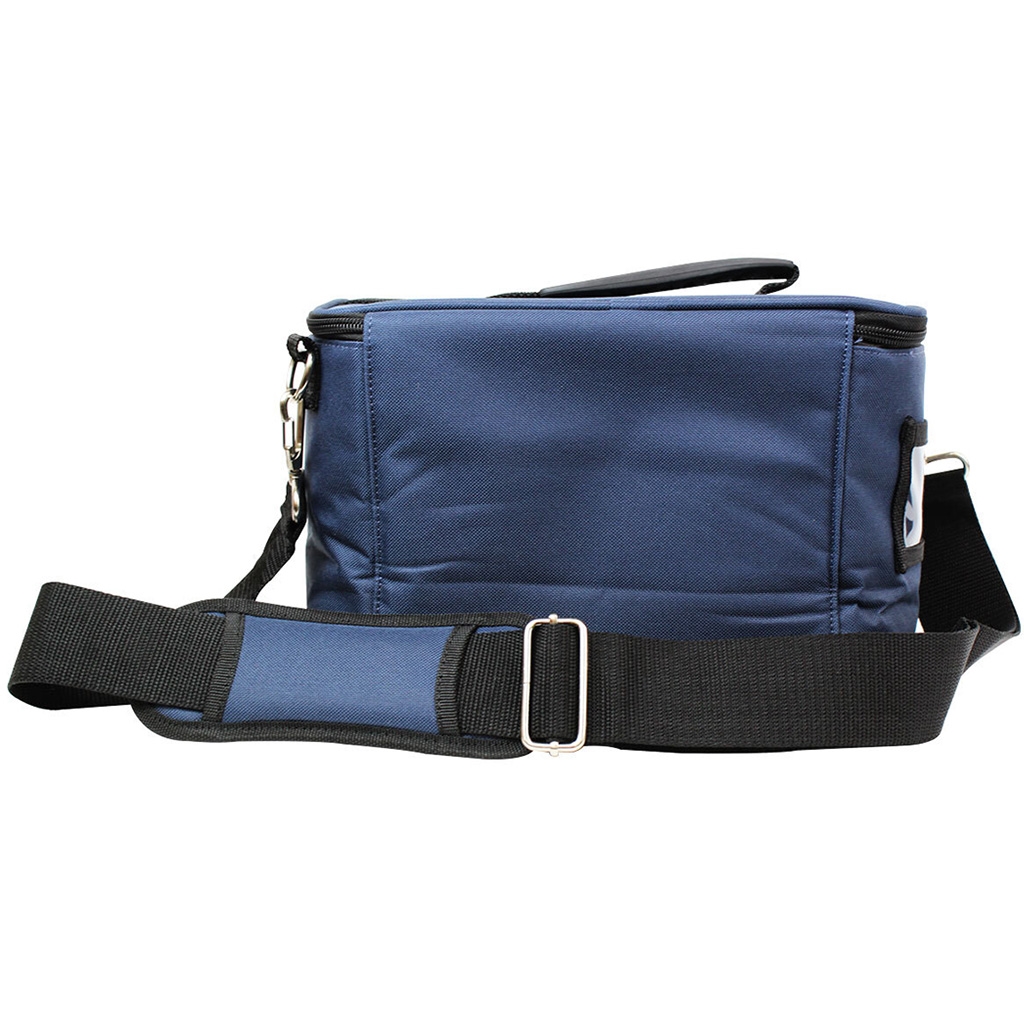

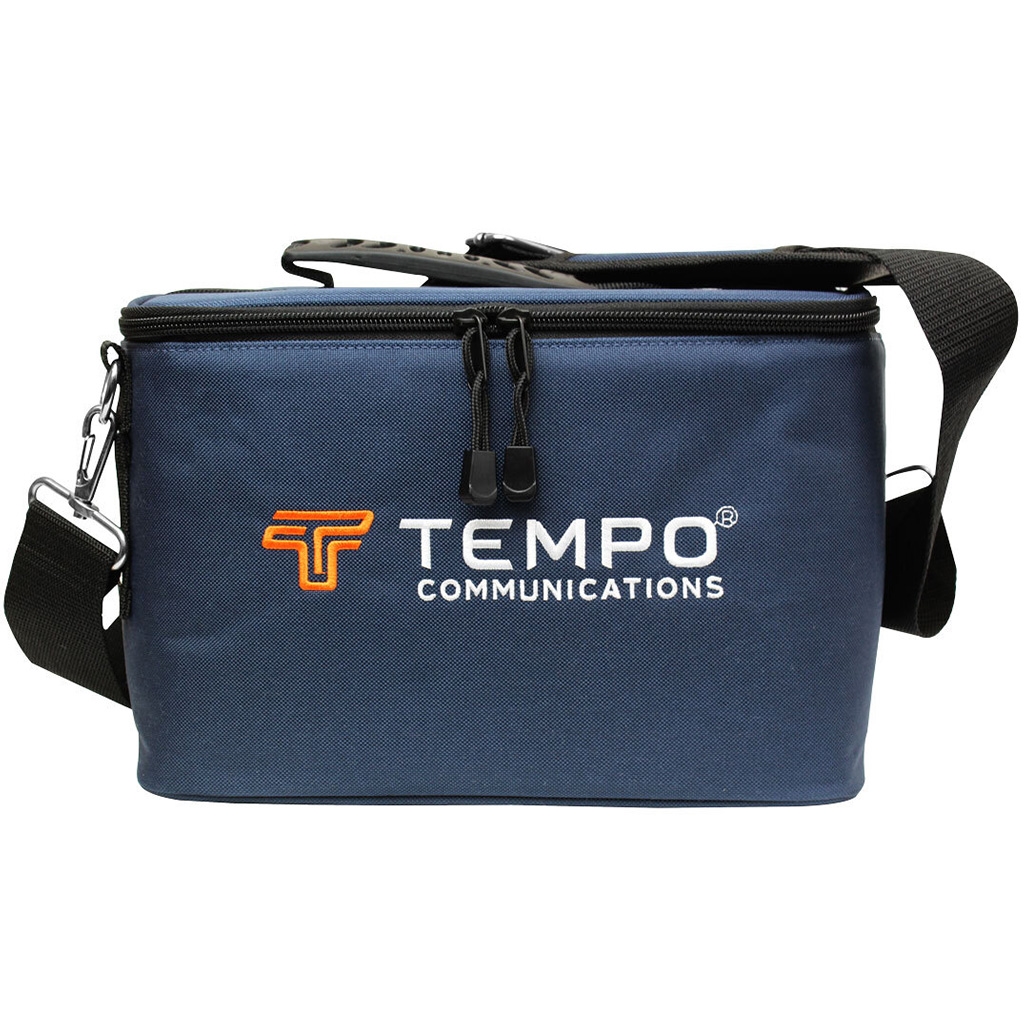

  • Carrying bag
