Tempo Drop Fiber Enclosure Kit

Tempo Drop Fiber Enclosure Kit




Alternative Views:


TTS PRICE: $56.99

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: TEM-DFE100
QUANTITY:

PRODUCT DESCRIPTION

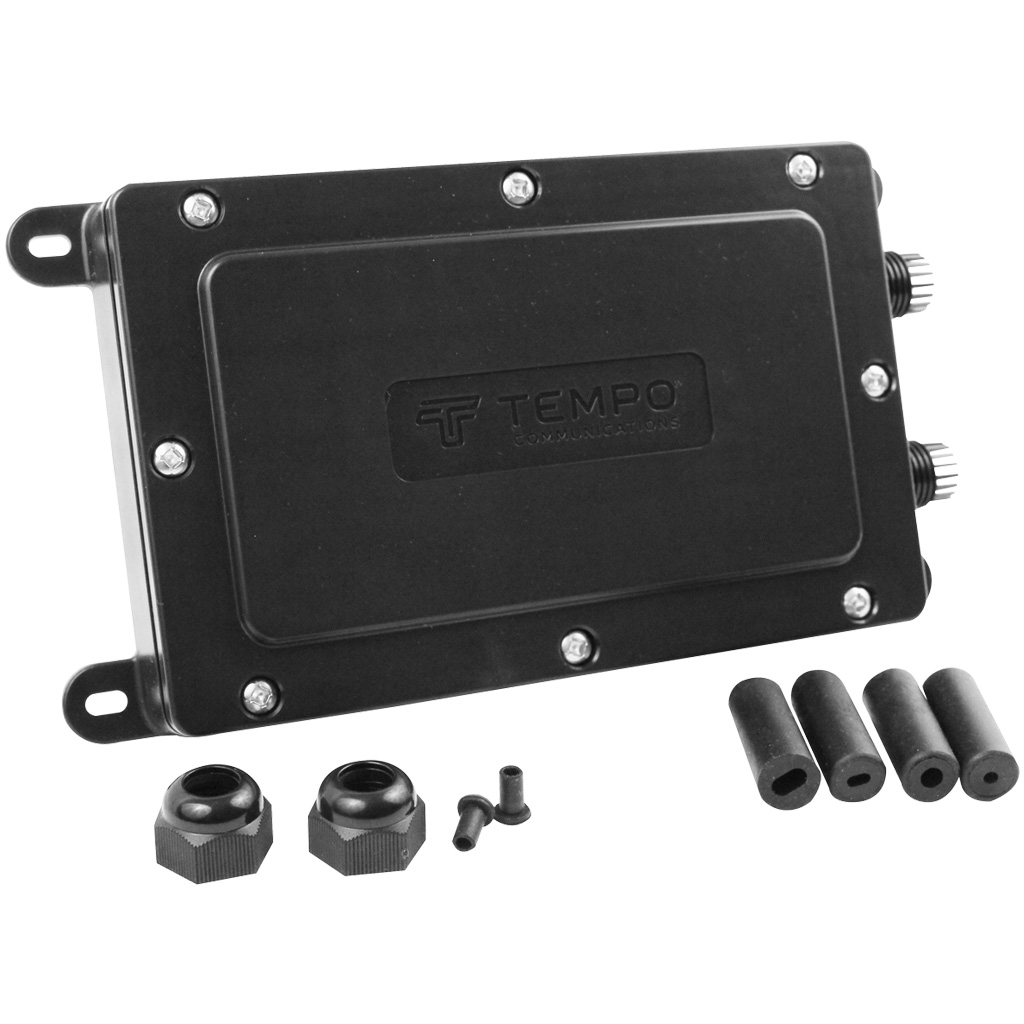

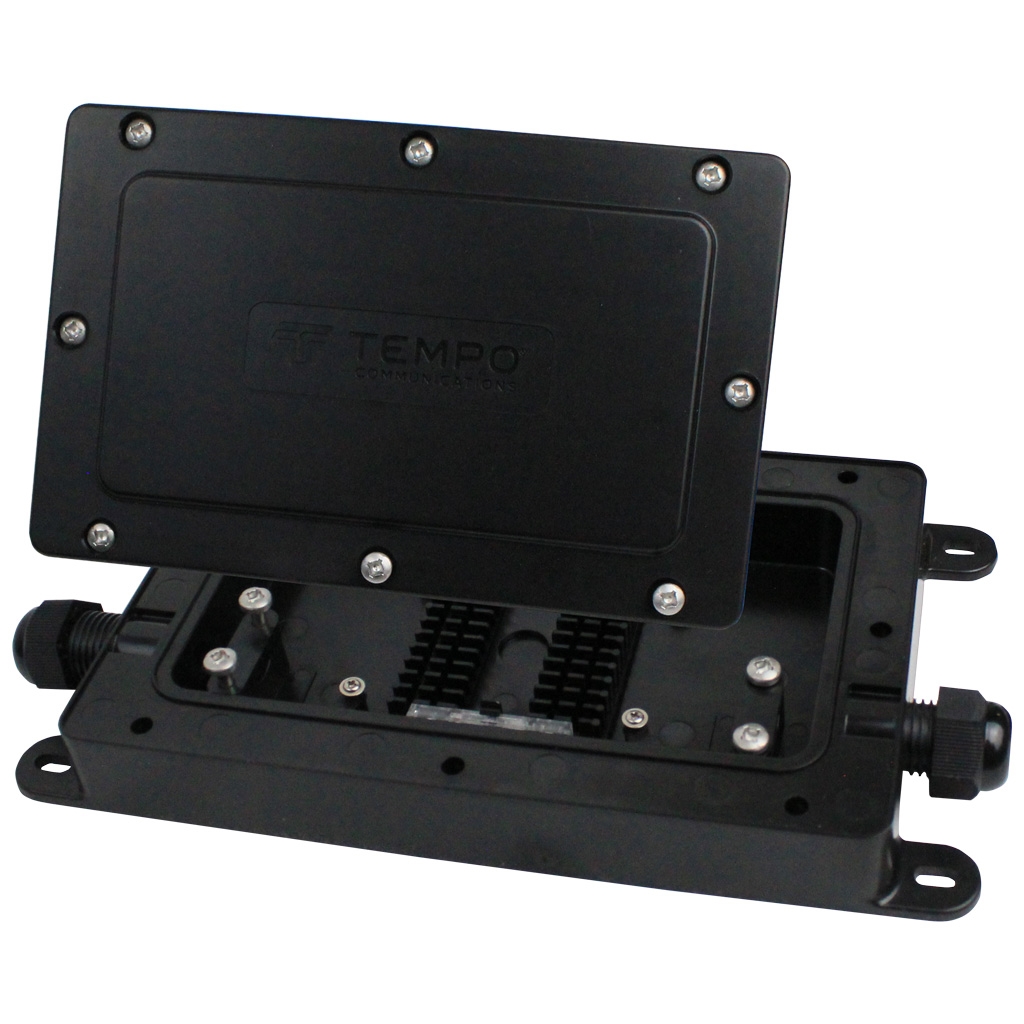

The Drop Fiber Enclosure Kit from Tempo is used to facilitate repairs of fiber optic cables. Common fiber sizes of 8.1mm, 5.4mm, and 5.1mm rectangular cables, and 3.0mm and 5.1mm round cables are accommodated with the supplied sealing gaskets.

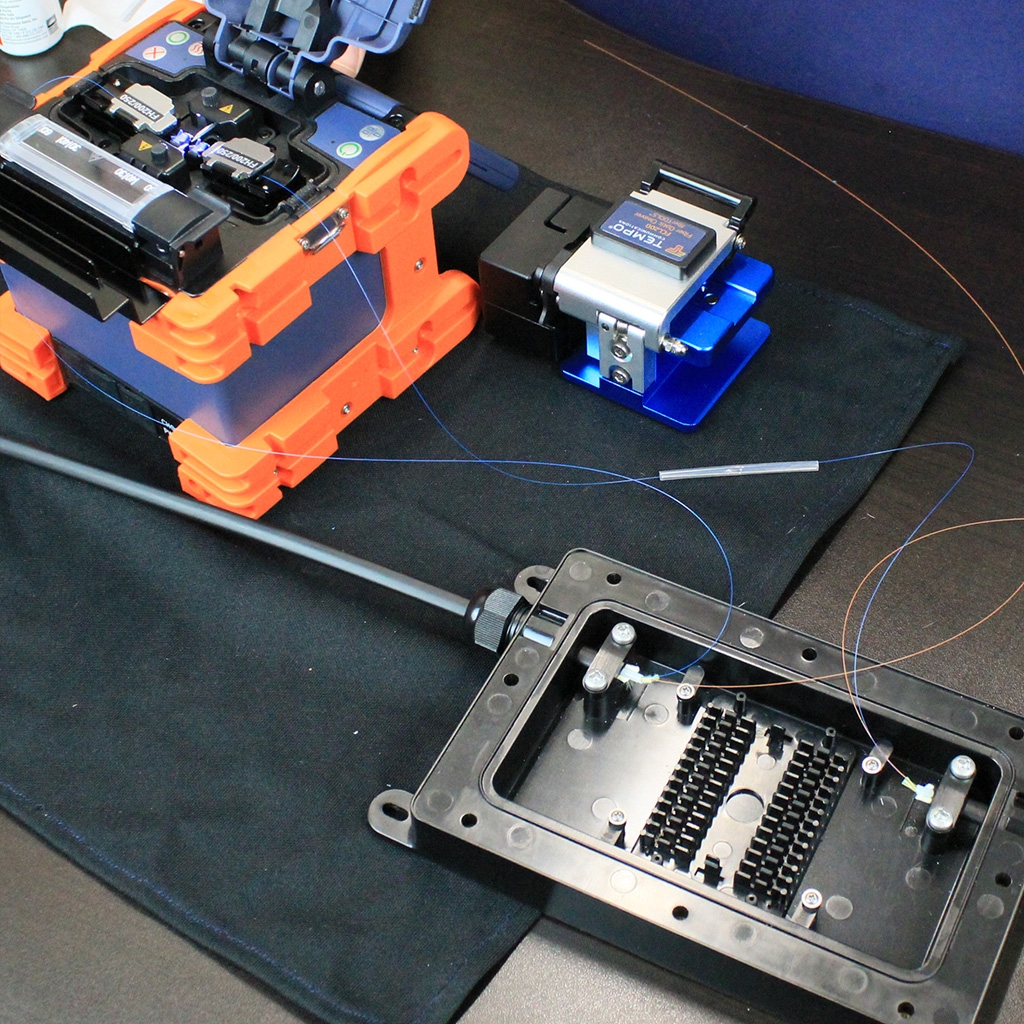

Both fusion splices (total of 12) and two mechanical splices are securely positioned within the IP68 rated enclosure. The enclosure can be permanently buried or mounted onto the side of a building.

Two DFE100 enclosures are typically used to repair a drop fiber as there is typically not enough slack cable to reconnect the fibers. It also provides a splice point location within the network build as well as a demarcation point at the premises.

Features:
  • IP68 rated for buried applications
  • Accommodates up to 12 fibers
  • Individual gaskets for 8.1, 5.4 and 5.1mm rectangular and 3.0 mm and 5.1 round cables
  • Fast assembly with common tools

  • Specifications:
  • IP Rating: IP68
  • Cables Sizes: 8.1mm, 5.4mm, 5.1mm rectangular and 5.1mm round
  • Mechanical Splice Locations: 2
  • Fusion Splice Locations: 12
  • Size: 8.85 x 4.72 x 1.34 (225 x 120 x 34mm)
  • Weight: 0.66lb (0.3kg)
  • Material: ABS with Polycarbonate (UV resistant)
  • Color: Black
  • Operating Temperature: -40 to +80C
  • Storage Temperature: -40 to +80C

  • Kit Includes:
  • 1 - Case Top
  • 1 - Case Bottom

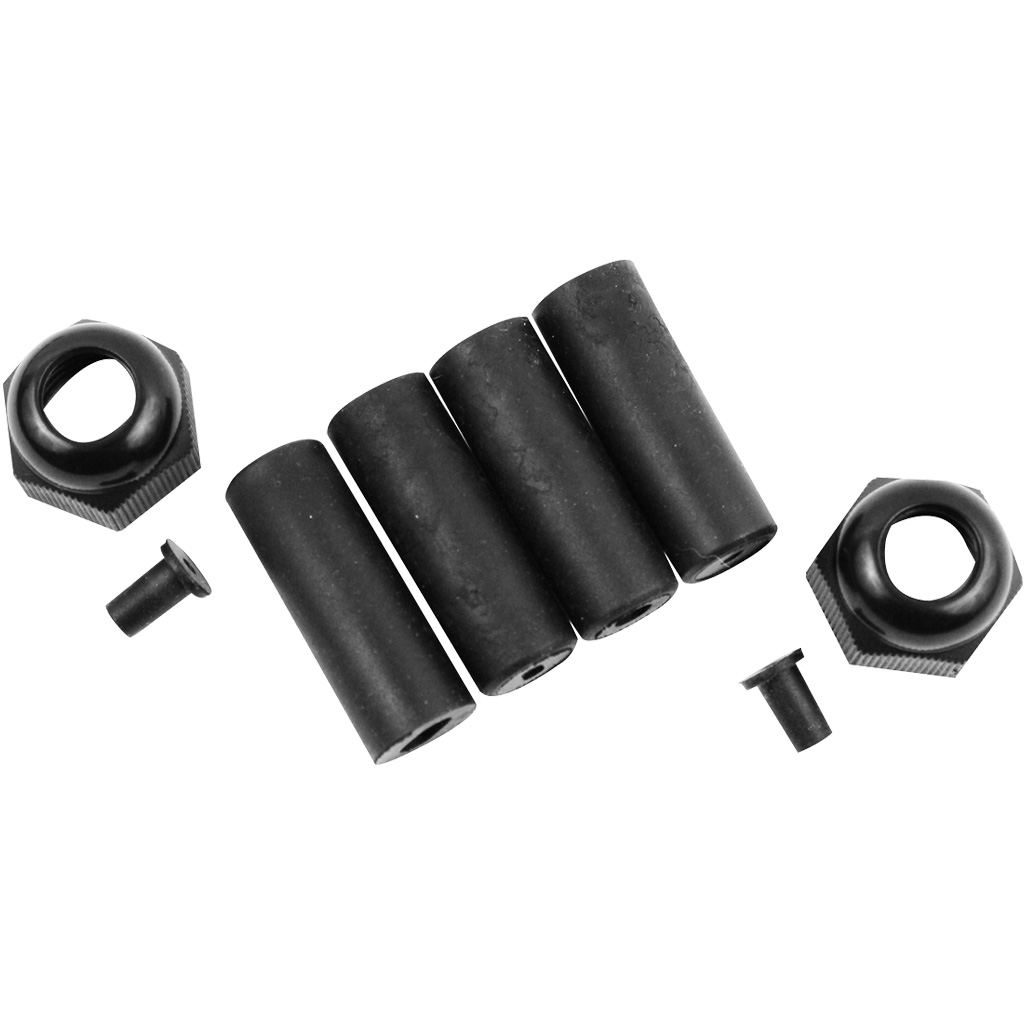

  • 2 - 8.1mm Rectangular Rubber Gaskets
  • 2 - 5.1mm/5.4mm Rectangular Rubber Gaskets
  • 2 - 5.1mm Round Rubber Gaskets
  • 2 - 3.0mm Round Rubber Gaskets
  • 2 - 3mm Cable Clamps
  • 2 - 37mm*6mm Mechanical Splices
