Network Toner & Probe for Active and Inactive

Network Toner & Probe for Active and Inactive

TTS PRICE: $96.99


Normally Ships Same Day

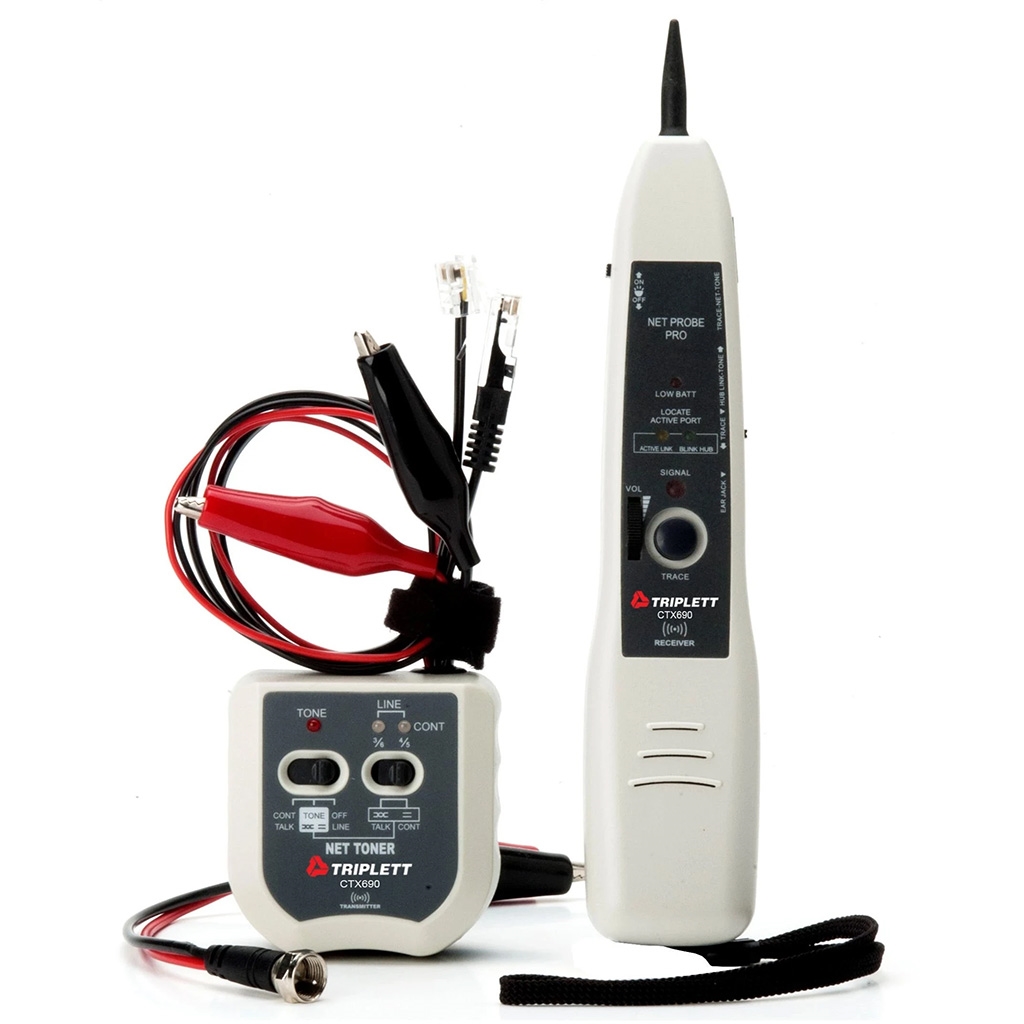

The CTX690 Network Toner and Probe Kit are designed specifically for locating and tracing cables on inactive or active networks and live or dead phone lines, as well as coaxial video cabling systems. Today’s media networks have a combination of twisted-pair data, telephone voice, coax, and security/alarm video wiring.

The CTX690 provides two robust selectable Net and Tel tones that allow cable installers and Datacom/Telecom technicians to plug directly into an active network, patch panel, network/telephone wall outlet, or live phone line making it easy to isolate the right wire/cable quickly. In addition, the toner can generate pulse/warble tones, check continuity/polarity, and provide talk battery power. The probe tests include trace, hub blink, and link mode and have a built-in flashlight. Includes Alligator Clips, RJ45 and RJ11 connectors, F connector adapter for coax cable, spare tip, and a carrying case.

  • Quickly trace active/inactive networks and live or dead phone lines
  • Insulated probe tip prevents short circuits
  • Adjustable sensitivity
  • Pulse and warble tones with audible and visual notification
  • Continuity/polarity tests, Hub blink and link modes, plus provides talk battery power

  • Specifications:
  • Input Voltage/Current: Max: 24VAC, 60VDC, 80mA
  • Power: 9V Batteries for Toner and Probe (not included)
  • Toner Dimensions: 2.5 x 2.4 x 1.4” (63 x 61.5 x 36mm)
  • Probe Dimensions: 8.3 x 1.6 x 1” (212 x 40 x 27.5mm)
  • Toner Weight: 2.6oz (75g)
  • Probe Weight: 2.8oz (80g)
