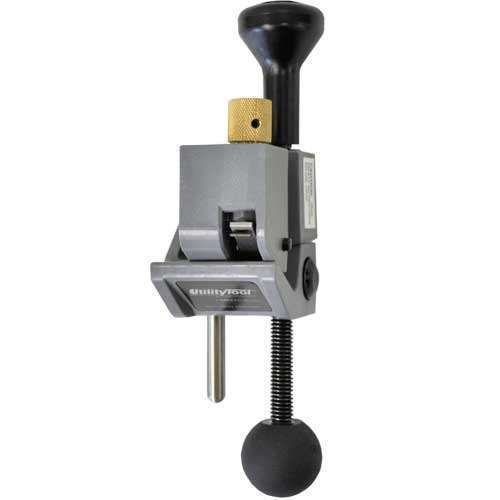

UtilityTool by Ripley Tools US07 Adjustable 600-1000V Secondary Cable Stripper

UtilityTool by Ripley Tools US07 Adjustable 600-1000V Secondary Cable Stripper


Alternative Views:


TTS PRICE: $243.17

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: UTIL-US07-7000
QUANTITY:

PRODUCT DESCRIPTION

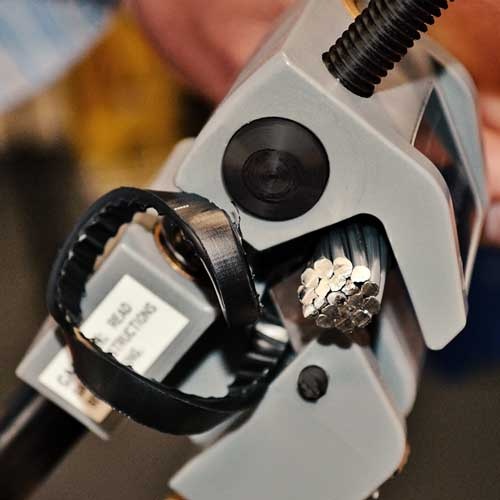

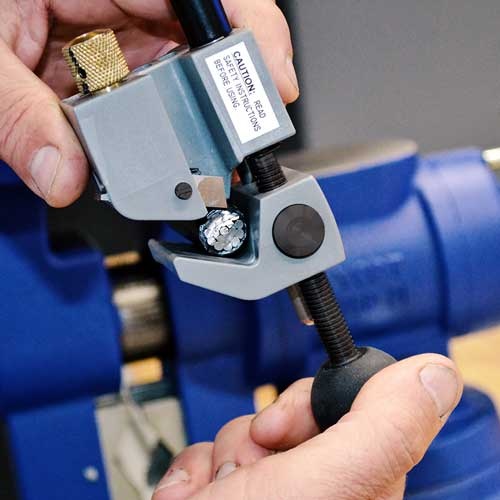

The UtilityTool US07 end strips or mid-span strips secondary cable insulation with no conductor damage, 8 AWG to 1000 kcmil.
A size-adjustment clamp fits THHN, XHHW and USE from 0.3in to 1.375in (7.6-35 mm), so there are no bushings to carry or swap.

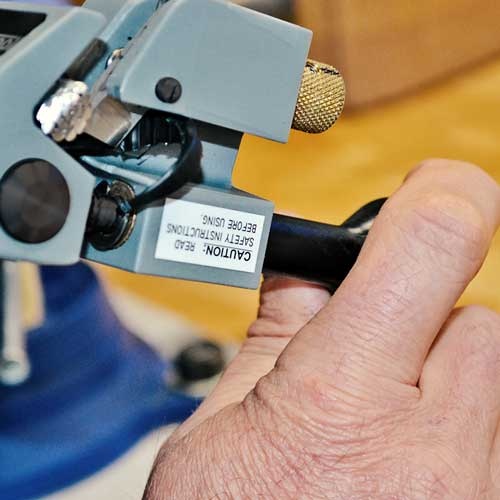

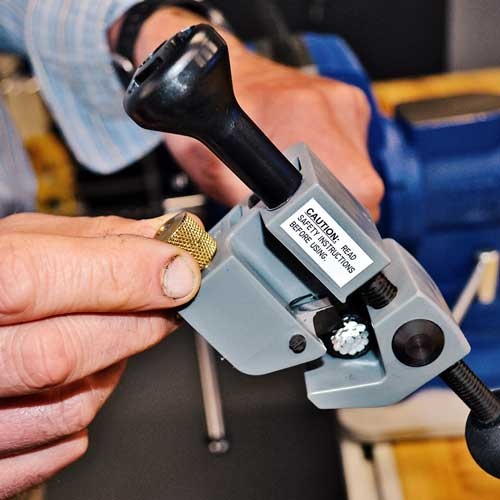

A detent knob and a fine-adjust knob match the blade to the insulation thickness for fast stripping.
It combines the end and mid-span stripping of the WS 71 and WS 72 with more stability and range - a T&D World 2020 Top Tools of the Trade winner.

Features:
  • End or mid-span strip, 8 AWG to 1000 kcmil secondary cable
  • THHN, XHHW and USE, 0.3-1.375in (7.6-35 mm) OD - no bushings needed
  • Detent and fine-adjust knobs match insulation thickness (45-125 mils)
  • Recessed, replaceable tool steel blade (US07-7500)
  • Durable bronze bushings for long life
  • T&D World 2020 Top Tools of the Trade Award

Specifications:
  • Model: Ripley UtilityTool US07-7000
  • Cable OD: 0.3-1.375in (7.6-35 mm)
  • Voltage: 600 V - 1 kV
  • Insulation Thickness: 45-125 mils
  • Material: Impact-resistant polymer
  • Replacement Blade: US07-7500
  • UPC: 856848006724
