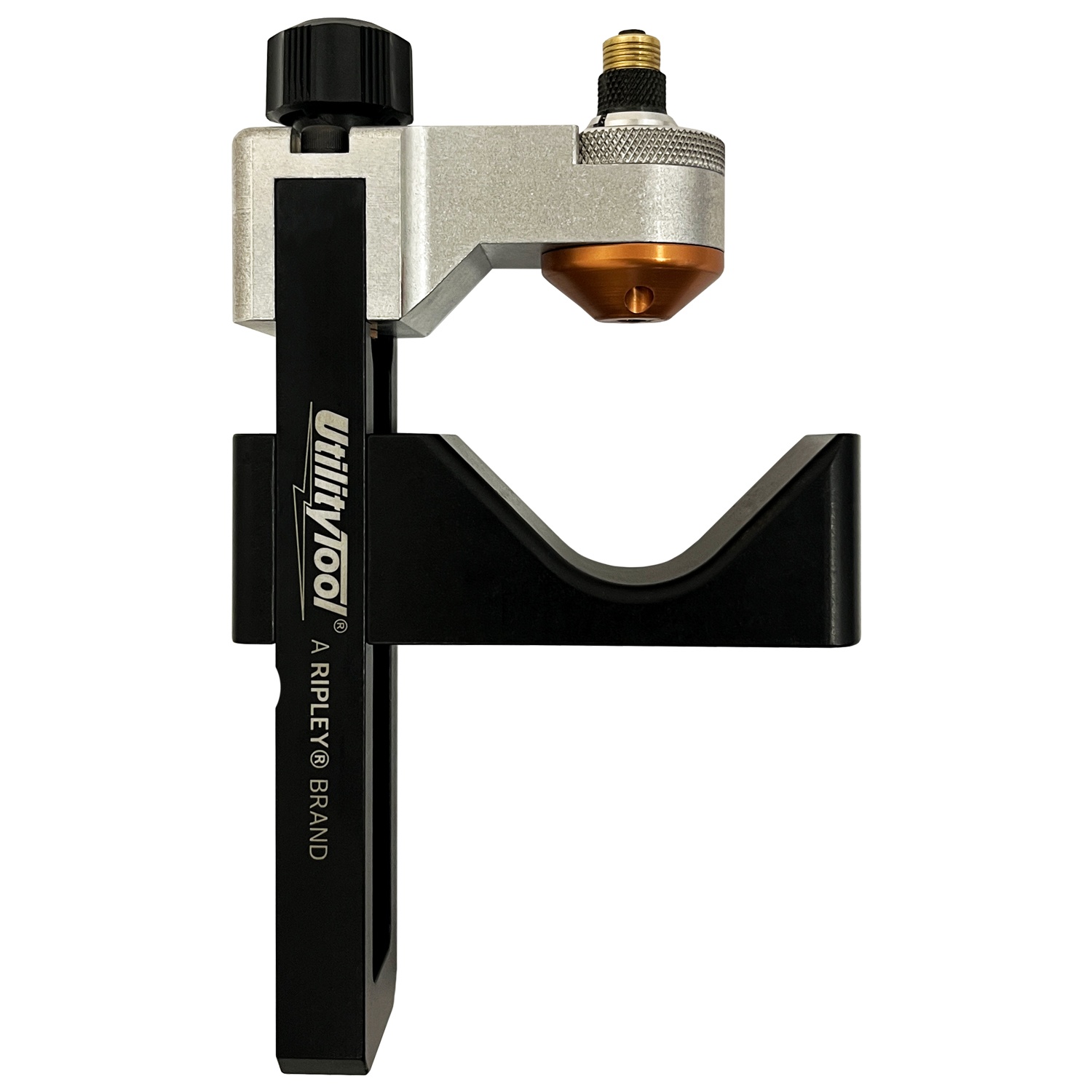

Ripley UtilityTool US15 PRO MAX Large Format Slitting Tool - 1.50"-3.15" (38-80 mm), Inch Scale
The UtilityTool US15 PRO MAX takes the US15 PRO up to large cable: slit, ring and spiral cuts on 38 to 80 mm diameters. Built to remove outer sheathing and primary insulation on low and medium voltage power cable, with a high-grade steel blade that cuts up to 5.5 mm deep. It handles PE, XLPE, PVC, EPR, silicone rubber, EPDM, TGGT and Sealpic®. Blade depth adjusts up to 0.216in (5.5 mm) in 0.002in (0.05 mm) steps on an inch scale. Also available with a metric scale: US15-7110. For 10-60 mm cable see the US15 PRO.
Features:
Slit, ring and spiral cuts on 1.50-3.15in (38-80 mm) cable
PE, XLPE, PVC, EPR, silicone rubber, EPDM, TGGT and Sealpic® insulation
Blade depth up to 0.216in (5.5 mm) in 0.002in increments - inch scale
Recessed blade protects the operator and the blade

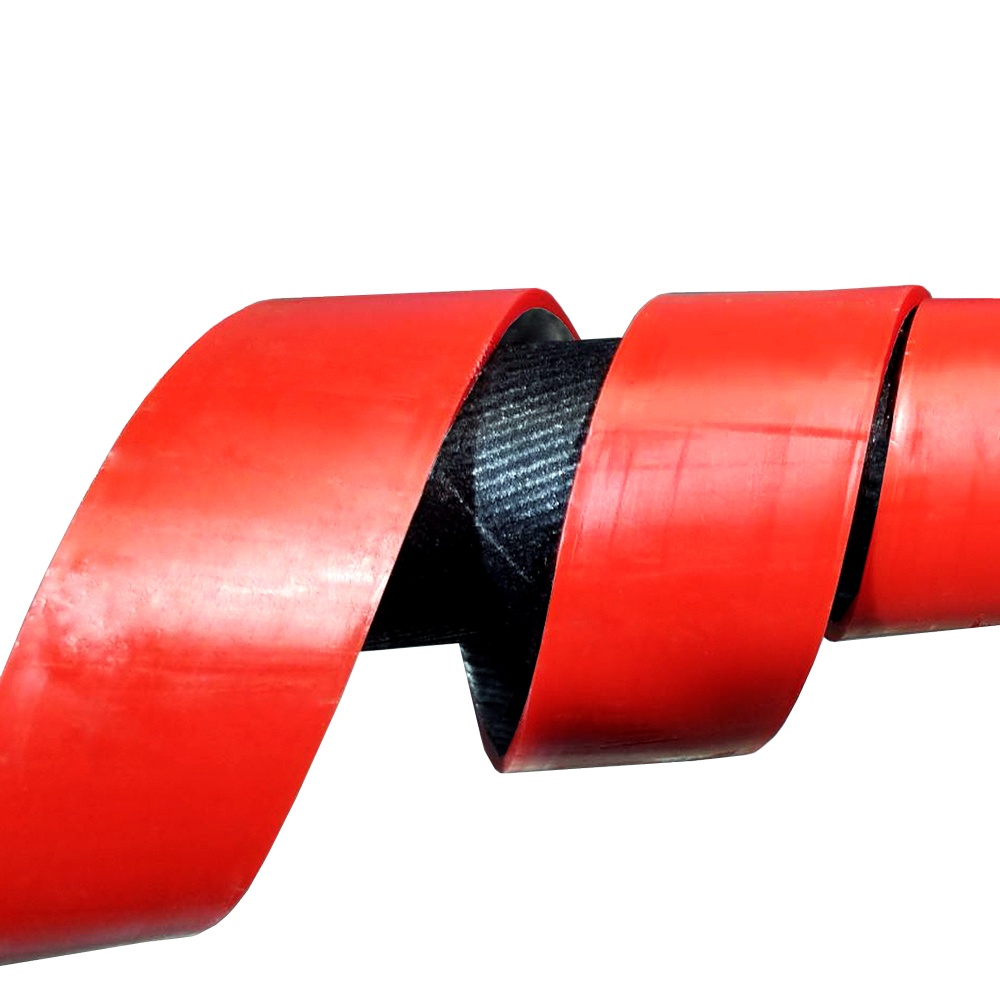

Ring, spiral and longitudinal cuts - adjust the blade position
Replaceable machined, ground tool steel blade
Reinforced diameter jaw travels on a threaded rod for stable, precise cuts
Specifications:
Cable OD: 1.50-3.15in (38-80 mm)
Adjustable Blade Depth: Up to 0.216" (5.5 mm)

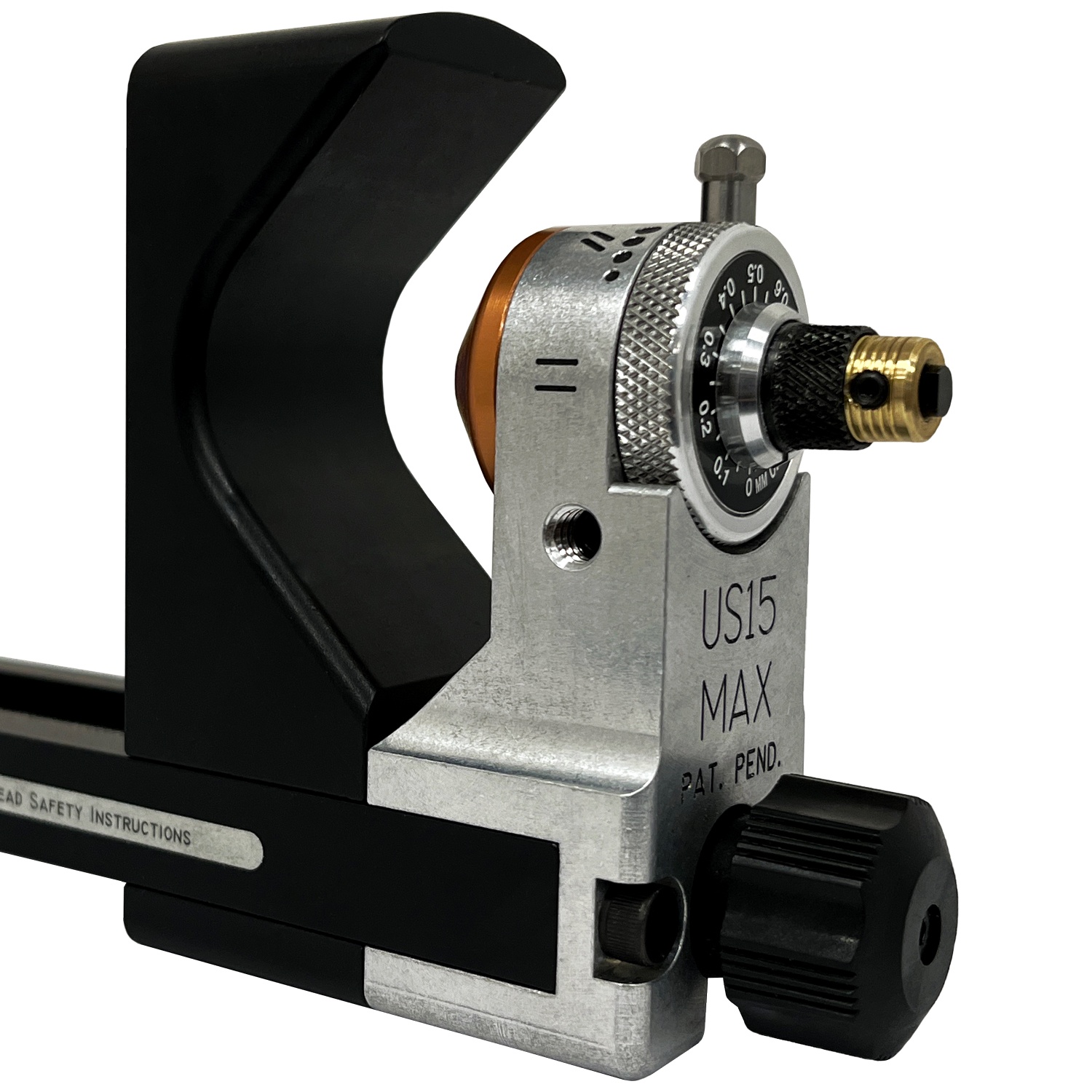

Scale: Inch, 0.002" increments
Cutting Type: Radial, Spiral, Longitudinal
Cable Access: Mid-Span, End
Material: Impact-resistant polymer
Length: 6.875" (174.6 mm)
Width: 4.0" (101.6 mm)
Weight: 1.31 lb (594.2 g)
Model: US15-7111
Available Models:
| Part # | Model | Ripley # | Scale |
|---|
| UTIL-US15-7110 | US15 PRO MAX Large Slitting Tool (Metric Scale) | US15-7110 | Metric |
| UTIL-US15-7111 | US15 PRO MAX Large Slitting Tool (Inch Scale) (this item) | US15-7111 | Inch |
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| - | US15-7501 | Machined and ground tool steel replacement blade |
US15 PRO / PRO MAX Instruction Sheet
|
|
|
 |
|
 |
|
