New!  UtilityTool by Ripley Tools US16 Drill Operated Jacket Removal Tool - up to 1.5in Cable

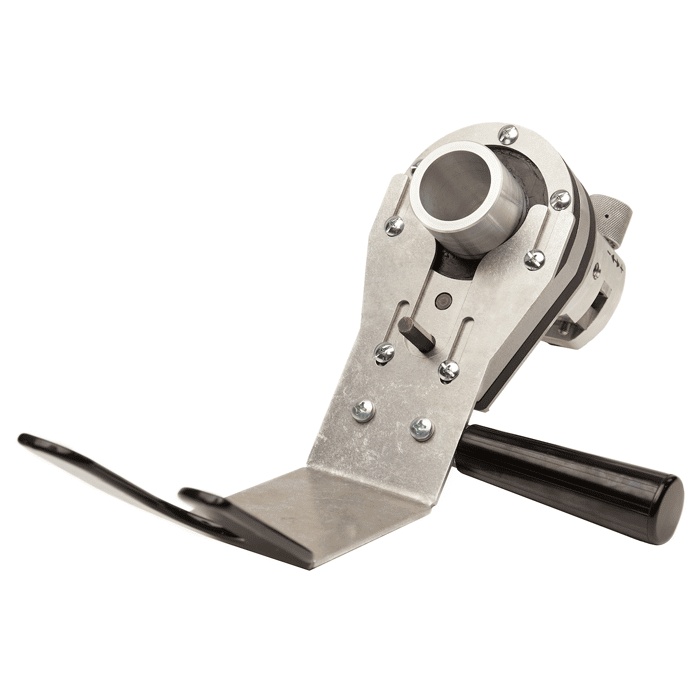

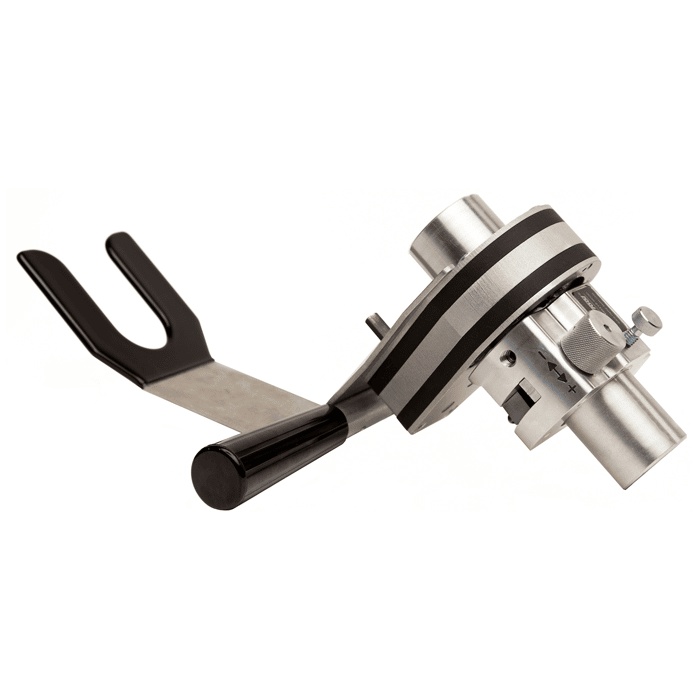

UtilityTool by Ripley Tools US16 Drill Operated Jacket Removal Tool - up to 1.5in Cable


Alternative Views:
TTS PRICE: $2,095.09

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-US16-7000
QUANTITY:

PRODUCT DESCRIPTION


Ripley UtilityTool US16 Drill Operated Jacket Removal Tool - MV Cable up to 1.5" (38 mm)

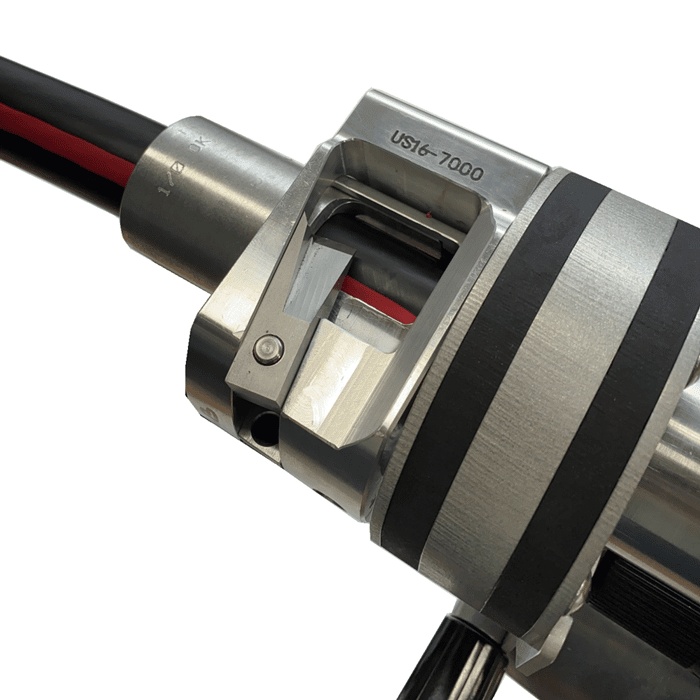

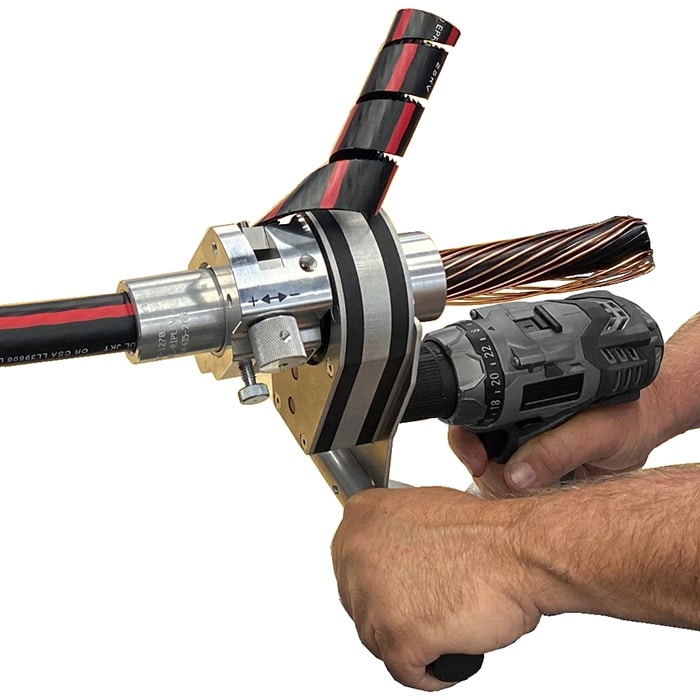

The UtilityTool US16 strips the outer jacket off medium voltage power cable with a speed drill doing the work. It cleanly removes the jacket to expose the shield on cable up to 1.5in (38 mm) in diameter. The self-feeding design does the work, and micro-indexing blade depth control protects the shield. It handles jacketed concentric neutral, flat strap and tape shield medium voltage cable, plus dead-ending tree wire, strand anchors and other covered guy wire. For cable to 2.625in, see the US16 MAX.

Features:
  • Drill-powered jacket removal on cable up to 1.5" (38 mm)
  • Self-feeding design greatly reduces fatigue and strain
  • Micro-indexing blade depth control protects the cable shield
  • Simple, safe blade depth adjustment; ergonomic design
  • Concentric neutral, flat strap and tape shield MV cable
  • Also dead-ends tree wire, strand anchors and covered guy wire
  • Bushings required for other insulation and jacket diameters - other bushings sold separately

    • Includes:
  • 3 x Basic bushings (1.025in, 1.1in and 1.325in bores)

    • Specifications:
  • Max. Cable Outer Diameter: 1.5" (38 mm)
  • Stripping Application: Power-driven (speed drill)
  • Handles: Ergonomic
  • Dimensions: 13" x 10.5" x 4.25" (330 x 266.7 x 107.95 mm)
  • Weight: 4.55 lb (2.06 kg)
  • Model: US16-7000


    • Replacement Parts:
    Part #Ripley #Description
    -US16-7500Replacement blade

    Compatible Bushings:
    Part #Ripley #Description
    UTIL-US16-7100-0700US16-7100-0700US16 bushing - 0.665" - 0.690" (16.89 - 17.53 mm) OD over insulation / semi-con
    UTIL-US16-7100-0725US16-7100-0725US16 bushing - 0.690" - 0.715" (17.53 - 18.16 mm) OD over insulation / semi-con
    UTIL-US16-7100-0750US16-7100-0750US16 bushing - 0.715" - 0.740" (18.16 - 18.80 mm) OD over insulation / semi-con
    UTIL-US16-7100-0775US16-7100-0775US16 bushing - 0.740" - 0.765" (18.80 - 19.43 mm) OD over insulation / semi-con
    UTIL-US16-7100-0800US16-7100-0800US16 bushing - 0.765" - 0.790" (19.43 - 20.07 mm) OD over insulation / semi-con
    UTIL-US16-7100-0825US16-7100-0825US16 bushing - 0.790" - 0.815" (20.07 - 20.70 mm) OD over insulation / semi-con
    UTIL-US16-7100-0850US16-7100-0850US16 bushing - 0.815" - 0.840" (20.70 - 21.34 mm) OD over insulation / semi-con
    UTIL-US16-7100-0875US16-7100-0875US16 bushing - 0.840" - 0.865" (21.34 - 21.97 mm) OD over insulation / semi-con
    UTIL-US16-7100-0900US16-7100-0900US16 bushing - 0.865" - 0.890" (21.97 - 22.61 mm) OD over insulation / semi-con
    UTIL-US16-7100-0925US16-7100-0925US16 bushing - 0.890" - 0.915" (22.61 - 23.24 mm) OD over insulation / semi-con
    UTIL-US16-7100-0950US16-7100-0950US16 bushing - 0.915" - 0.940" (23.24 - 23.88 mm) OD over insulation / semi-con
    UTIL-US16-7100-0975US16-7100-0975US16 bushing - 0.940" - 0.965" (23.88 - 24.51 mm) OD over insulation / semi-con
    UTIL-US16-7100-1000US16-7100-1000US16 bushing - 0.965" - 0.990" (24.51 - 25.15 mm) OD over insulation / semi-con
    UTIL-US16-7100-1025US16-7100-1025US16 bushing - 0.990" - 1.015" (25.15 - 25.78 mm) OD over insulation / semi-con

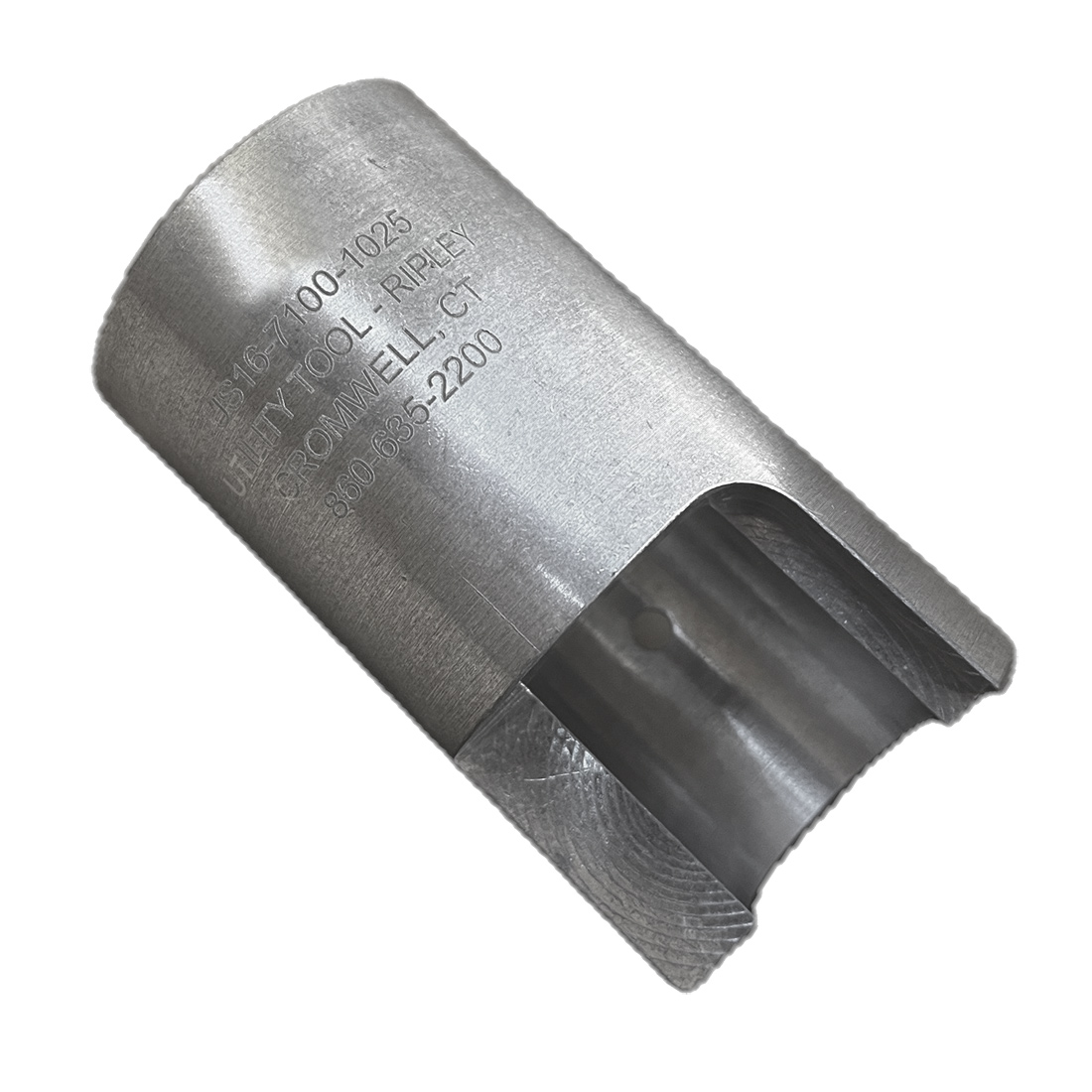

    UTIL-US16-7100-1050US16-7100-1050US16 bushing - 1.015" - 1.040" (25.78 - 26.42 mm) OD over insulation / semi-con
    UTIL-US16-7100-1075US16-7100-1075US16 bushing - 1.040" - 1.065" (26.42 - 27.05 mm) OD over insulation / semi-con
    UTIL-US16-7100-1100US16-7100-1100US16 bushing - 1.065" - 1.090" (27.05 - 27.69 mm) OD over insulation / semi-con
    UTIL-US16-7100-1125US16-7100-1125US16 bushing - 1.090" - 1.115" (27.69 - 28.32 mm) OD over insulation / semi-con
    UTIL-US16-7100-1150US16-7100-1150US16 bushing - 1.115" - 1.140" (28.32 - 28.96 mm) OD over insulation / semi-con
    UTIL-US16-7100-1175US16-7100-1175US16 bushing - 1.140" - 1.165" (28.96 - 29.59 mm) OD over insulation / semi-con
    UTIL-US16-7100-1200US16-7100-1200US16 bushing - 1.165" - 1.190" (29.59 - 30.23 mm) OD over insulation / semi-con
    UTIL-US16-7100-1225US16-7100-1225US16 bushing - 1.190" - 1.215" (30.23 - 30.86 mm) OD over insulation / semi-con
    UTIL-US16-7100-1250US16-7100-1250US16 bushing - 1.215" - 1.240" (30.86 - 31.50 mm) OD over insulation / semi-con
    UTIL-US16-7100-1275US16-7100-1275US16 bushing - 1.240" - 1.265" (31.50 - 32.13 mm) OD over insulation / semi-con
    UTIL-US16-7100-1300US16-7100-1300US16 bushing - 1.265" - 1.290" (32.13 - 32.77 mm) OD over insulation / semi-con
    UTIL-US16-7100-1325US16-7100-1325US16 bushing - 1.290" - 1.315" (32.77 - 33.40 mm) OD over insulation / semi-con
    UTIL-US16-7100-1350US16-7100-1350US16 bushing - 1.315" - 1.340" (33.40 - 34.04 mm) OD over insulation / semi-con
    UTIL-US16-7100-1375US16-7100-1375US16 bushing - 1.340" - 1.365" (34.04 - 34.67 mm) OD over insulation / semi-con
    UTIL-US16-7100-1400US16-7100-1400US16 bushing - 1.365" - 1.390" (34.67 - 35.31 mm) OD over insulation / semi-con
    UTIL-US16-7100-1425US16-7100-1425US16 bushing - 1.390" - 1.415" (35.31 - 35.94 mm) OD over insulation / semi-con
    UTIL-US16-7100-1450US16-7100-1450US16 bushing - 1.415" - 1.440" (35.94 - 36.58 mm) OD over insulation / semi-con
    UTIL-US16-7100-1475US16-7100-1475US16 bushing - 1.440" - 1.465" (36.58 - 37.21 mm) OD over insulation / semi-con
    US16 Instruction Sheet US16-7000 Bushing Interface Drawing
