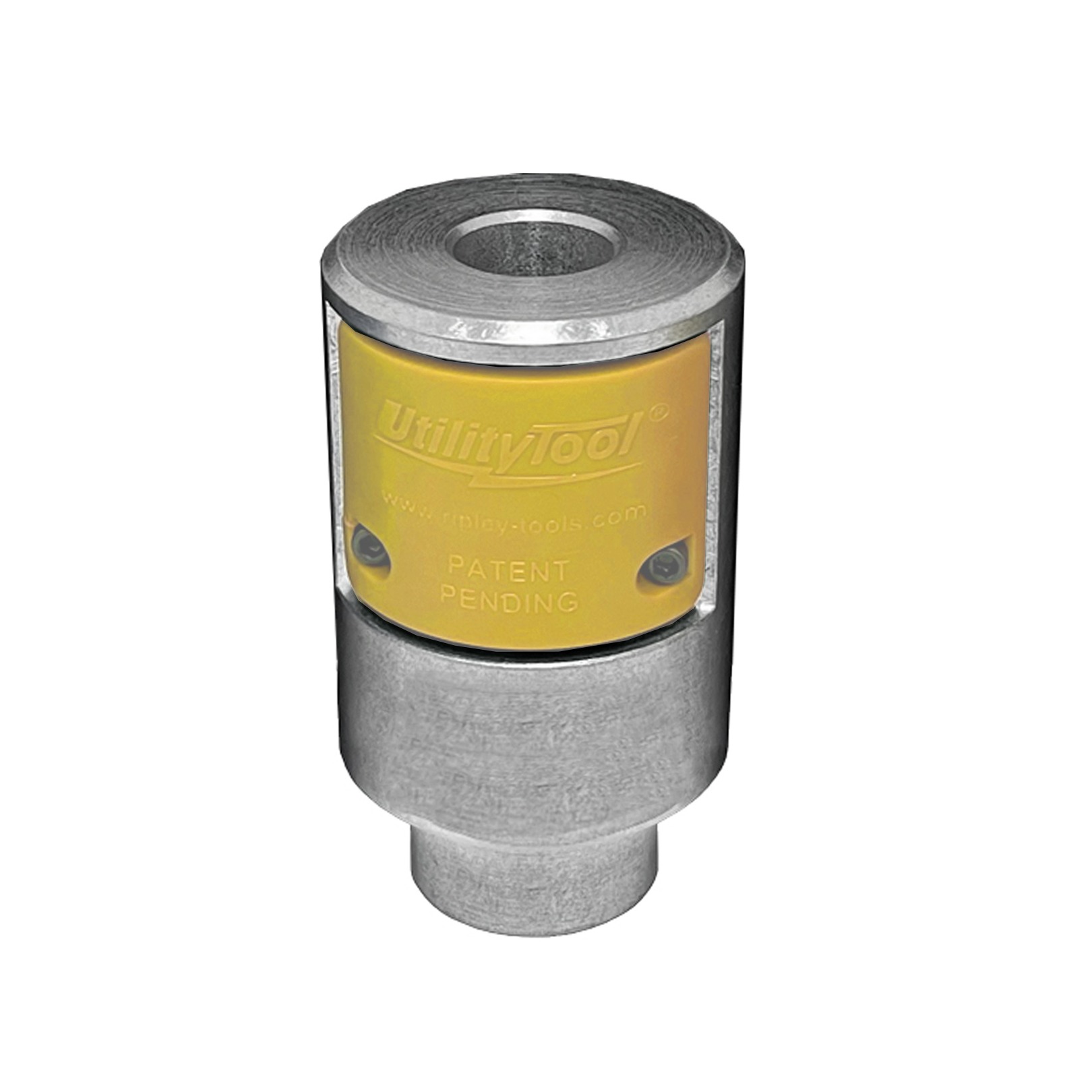

Ripley UtilityTool US21 VariStrip Bushing - 250 - 300 kcmil THHN/XHHW (US21-7004)
The US21-7004 variable bushing assembly fits Ripley's US21 VariStrip drill adaptable tool body and end strips THHN / XHHW building wire in the 250 - 300 kcmil range. Its spring-loaded ramp handles several conductor sizes in one bushing, and the yellow collar identifies the size at a glance.
Features:
Variable bushing for 250 - 300 kcmil THHN / XHHW
Covers: 250 MCM CU, 300 MCM CU, 250 MCM AL, 300 MCM AL
Yellow color-coded collar
Quick-change connect collar fits the US21 tool body
Included:
1 x US21 VariStrip Bushing - 250 - 300 kcmil THHN/XHHW, Yellow (Ripley # US21-7004)
Specifications:
Model: VariStrip 250 - 300 kcmil (Ripley Part # US21-7004)
Wire: THHN / XHHW
Range: 250 MCM CU, 300 MCM CU, 250 MCM AL, 300 MCM AL
Color Code: Yellow
Available Bushings:
| Part # | Model | Ripley # | Color | Covers |
|---|
| UTIL-US21-7001 | VariStrip #2 - #1 AWG | US21-7001 | Purple | #2 AWG CU, #1 AWG CU, #2 AWG AL, #1 AWG AL |
| UTIL-US21-7002 | VariStrip 1/0 - 2/0 AWG | US21-7002 | Blue | 1/0 CU, 2/0 CU, 1/0 AL, 2/0 AL |
| UTIL-US21-7003 | VariStrip 3/0 - 4/0 AWG | US21-7003 | Green | 3/0 CU, 4/0 CU, 3/0 AL, 4/0 AL |
| UTIL-US21-7004 | VariStrip 250 - 300 kcmil (this item) | US21-7004 | Yellow | 250 MCM CU, 300 MCM CU, 250 MCM AL, 300 MCM AL |
| UTIL-US21-7005 | VariStrip 350 - 400 kcmil | US21-7005 | Orange | 350 MCM CU, 400 MCM CU, 350 MCM AL, 400 MCM AL |
| UTIL-US21-7006 | VariStrip 500 kcmil | US21-7006 | Red | 500 MCM CU, 500 MCM AL |
| UTIL-US21-7007 | VariStrip 600 kcmil | US21-7007 | Black | 600 MCM CU, 600 MCM AL |
| UTIL-US21-7008 | VariStrip 750 kcmil | US21-7008 | Gray | 750 MCM CU, 750 MCM AL |
Fits These Tools:
