Ripley 15-110090 WS 22 Square-Cut Replacement Bushing, 1.090in Max

Home > Categories > Utility & MV Cable Prep > Replacement Bushings & Blades >

UtilityTool by Ripley Tools WS 22 Square-Cut Replacement Bushing, 1.090in Max Cable OD (110 Mil Insulation, 600 kcmil Compacted)

Alternative Views:

TTS PRICE: $111.99

STATUS: ON ORDER

Availability:

EXTENDED LEAD TIME

PRODUCT CODE: UTIL-15-110090

QUANTITY:

PRODUCT DESCRIPTION

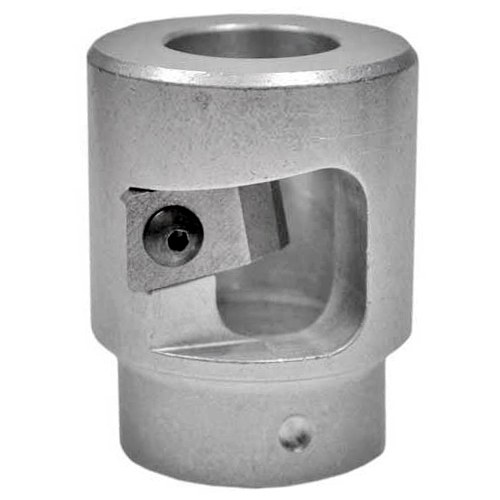

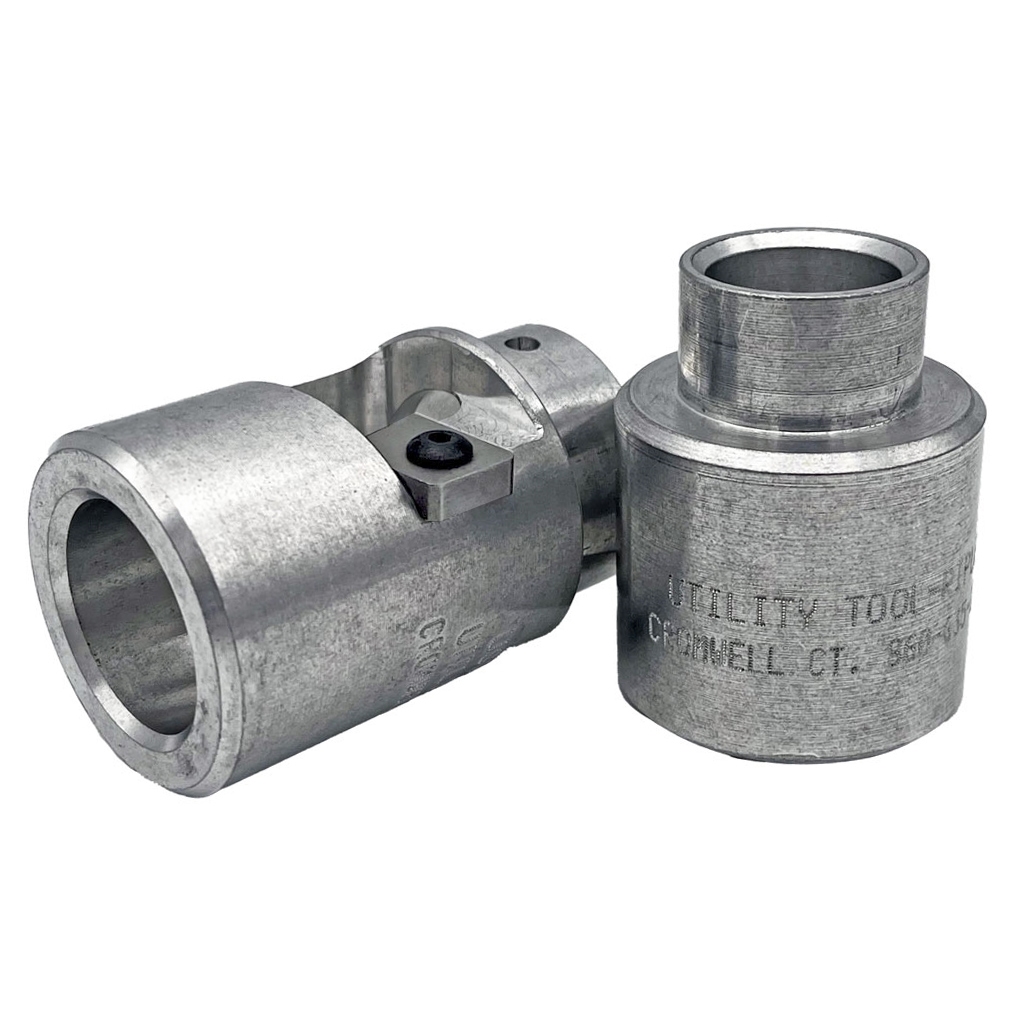

Ripley UtilityTool WS 22 Square-Cut Bushing 15-110090 - 1.090" Max OD, 110 mil, Compacted 600 kcmil

Requires Tool Body: This bushing is an accessory for the Ripley WS 22A Power-Driven End Stripper and the WS 22 and WS 22 SNAP tool bodies (each sold separately). It does not function as a standalone stripping tool.

The Ripley Tools WS 22 Series Square-Cut Bushing (SKU 15-110090) is a precision accessory bushing built for the UtilityTool WS 22 tool body, the WS 22A power-driven end stripper and the WS 22 SNAP. It is sized for cables with a maximum outer diameter of 1.090in (27.69 mm) over a 110 mil insulation wall - matched to 600 kcmil compacted conductor - giving technicians a precise fit for consistent, clean square-cut end stripping. Part of the WS 22 bushing family that supports 600V secondary cable with concentric, compressed, and compacted conductors from #1/0 AWG up to 1,000 kcmil, this bushing lets crews quickly configure their WS 22 or WS 22A tool body for the exact cable size on the job - no need to swap to an entirely different tool for each diameter.

Features:

Precision square-cut bushing sized for 1.090in max cable OD with 110 mil insulation

Ripley application: Compacted 600 kcmil

Rated for 600V secondary power cable applications

Ripley recommends two bushings per WS 22A tool

Specifications:

Bushing Type: Square-Cut

Max Cable Outer Diameter: 1.090" (27.69 mm)

Insulation Thickness: 110 mils

Conductor Type / Size: Compacted 600 kcmil

Voltage Rating: 600 V secondary cable

Sold As: Individual bushing (2 recommended per tool)

Model: 15-110090

Available Bushings:

Part #	Model	Ripley #	Conductor	Max. Cable O.D.	Insulation
UTIL-15-140090		15-140090	Concentric 1000 kcmil	1.390" (35.31 mm)	110 mils
UTIL-15-135060		15-135060	Concentric 1000 kcmil	1.340" (34.04 mm)	80 mils
RIP-15-75075		15-75075	Compacted 250 kcmil; Compressed 4/0 AWG; Concentric 4/0 AWG	0.740" (18.80 mm)	95 mils
UTIL-15-77560		15-77560	Concentric 250 kcmil	0.765" (19.43 mm)	80 mils
RIP-15-70075		15-70075	Concentric 3/0 AWG; Compacted 4/0 AWG	0.690" (17.53 mm)	95 mils
UTIL-15-87590		15-87590	Compacted 350 kcmil	0.865" (21.97 mm)	110 mils
RIP-15-105090		15-105090	Compressed 500 kcmil	1.040" (26.42 mm)	110 mils
UTIL-15-100060		15-100060	Concentric 500 kcmil	0.990" (25.15 mm)	80 mils
UTIL-15-110090	15-110090 (this item)	15-110090	Compacted 600 kcmil	1.090" (27.69 mm)	110 mils
UTIL-15-112590		15-112590	Compressed 600 kcmil	1.115" (28.32 mm)	110 mils
UTIL-15-107560		15-107560	Compressed 600 kcmil; Concentric 600 kcmil; Compacted 700 kcmil	1.065" (27.05 mm)	80 mils
UTIL-15-120090		15-120090	Compressed 700 kcmil; Compacted 800 kcmil	1.190" (30.23 mm)	110 mils
RIP-15-122590		15-122590	Concentric 700 kcmil; Compressed 750 kcmil	-	110 mils
UTIL-15-117560		15-117560	Concentric 700 kcmil; Compressed 750 kcmil	1.165" (29.59 mm)	80 mils
UTIL-15-115075		15-115075	Compacted 750 kcmil	1.140" (28.96 mm)	95 mils
UTIL-15-120060		15-120060	Concentric 750 kcmil; Compressed 800 kcmil; Compacted 900 kcmil	1.190" (30.23 mm)	80 mils

Replacement Parts:

Part #	Ripley #	Description
UTIL-R12302	R12302	Replacement blade for WS 22 square-cut bushings

Fits These Tools:

Part #	Ripley #	Description
-	-	WS 22 tool body
RIP-12340	R12340	WS 22A power-driven end stripper - 3/8in drill drive
RIP-12340-2	12340-2	WS 22A power-driven end stripper - 3/8in square drive
UTIL-12340-1	12340-1	WS 22A power-driven end stripper - 1/4in hex drive
-	-	WS 22 SNAP tool body
