Ripley 27712 WS 49H Airport Lighting Cable Stripper & Penciling Tool

Home > Categories > Utility & MV Cable Prep > Cable End Strippers >

UtilityTool by Ripley Tools WS 49H 5kV Airport Lighting Cable Stripper & Penciling Tool - #4 & #6 AWG

Alternative Views:

TTS PRICE: $423.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-27712

QUANTITY:

PRODUCT DESCRIPTION

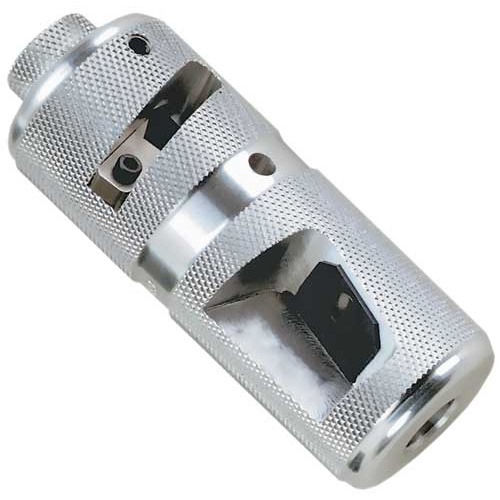

Ripley UtilityTool WS 49H 5 kV Airport Lighting Cable Stripper & Penciling Tool - #4 & #6 AWG

The WS 49H is a combination stripping and penciling tool for 5 kV L-824 Type C airport lighting cable in #4 and #6 AWG. In one tool it strips the insulation back 0.75" (19 mm) and pencils it 0.5" (12.7 mm) for a clean splice or termination.

Bushings compensate for the cable diameters, and the guarded blade protects the user. For #8 AWG cable, see the WS 49.

Features:

Strips and pencils 5 kV L-824 Type C airport lighting cable

Sized for #4 and #6 AWG

0.75in (19 mm) strip and 0.5in (12.7 mm) pencil

Bushings compensate for cable diameter

Guarded blade for safety

Specifications:

Model: Ripley UtilityTool WS 49H (Ripley Part # 27712)

Cable: 5 kV L-824 Type C, #4 / #6 AWG

Strip Length: 0.75in (19.05 mm)

Pencil Length: 0.5in (12.7 mm)

Max Voltage: 5 kV

Length: 3.5in (89 mm)

Weight: 10 oz (284 g)

Available Models:

Part #	Model	Ripley #	Cable Size	Penciling Blade
RIP-27700	WS 49	27700	#8 AWG	27702
UTIL-27712	WS 49H (this item)	27712	#4 AWG / #6 AWG	27714

Replacement Parts:

Part #	Ripley #	Description
-	27714	CB 94H penciling blade (WS 49H)
-	19207	CB 6667 stripping blade

WS 49 Instruction Sheet
