Wiha Master Tech ESD MicroBits - 65pc Set

Wiha Master Tech ESD MicroBits - 65pc Set




Alternative Views:


TTS PRICE: $121.34

STATUS: ON ORDER



Availability:
Normally Ships Same Day

PRODUCT CODE: WIHA-75965
QUANTITY:

PRODUCT DESCRIPTION

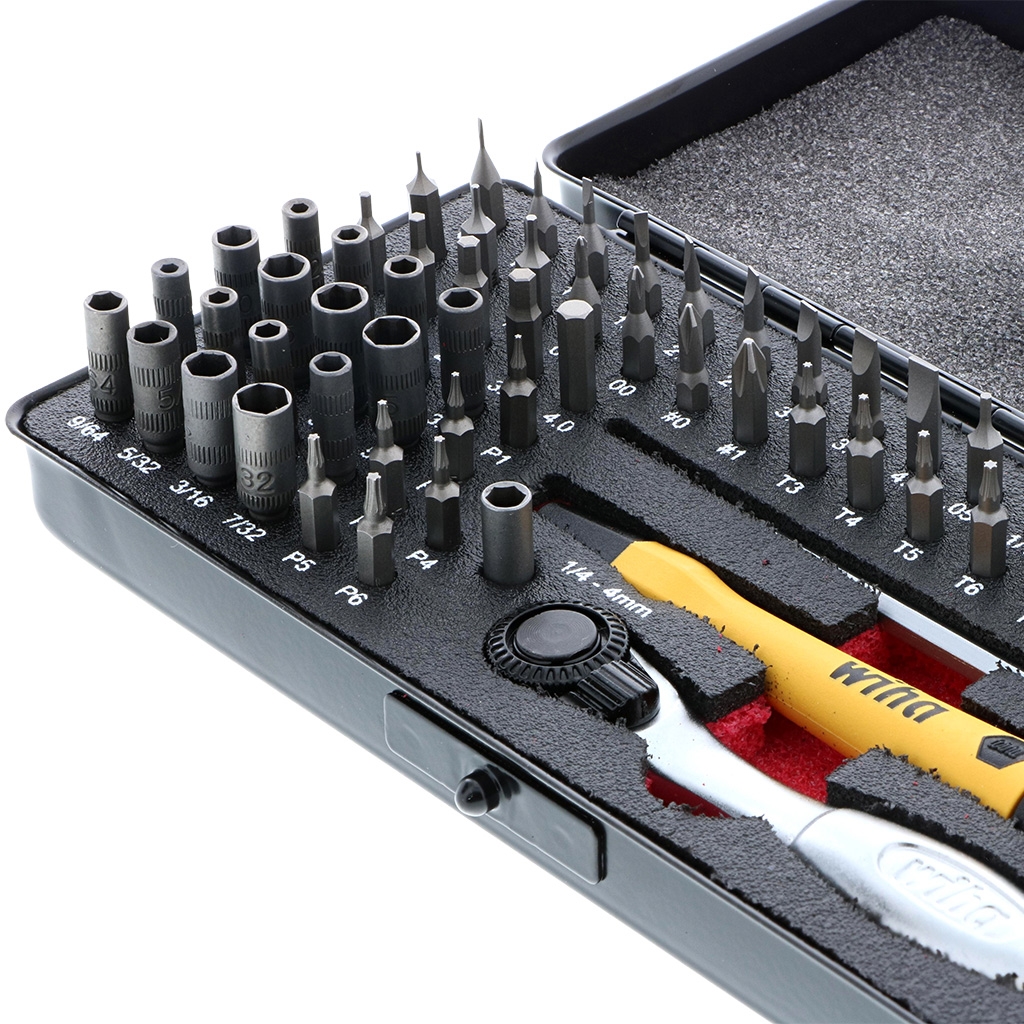

A careful touch is required for high-precision work to ensure small screwed connections are not damaged in model-making, electronics, or precision mechanics. The ESD MicroBit 75965 set provides the perfect essential equipment for these areas of use. The comprehensive bit set covers all standard small profile sizes, which are needed for delicate and precision screw fastening tasks. The bits in the set are safely stored neatly away in a robust, clearly organized box. The ESD precision screw handle is manufactured in line with the IEC 61340-5-1 international standard and guarantees maximum protection for electronic components. With a surface resistance between 106 and 109 ohms, it safely channels electrostatic energy away in a controlled fashion. The set also contains a bit ratchet, which allows powerful screw fastening. Thanks to a switching angle of just 5°, the ratchet is also suitable for use in confined spaces.

Wiha's 75965 is ideal for electronics, remote control models, precision mechanics. ESD Precision Handle for low torque applications or work on static sensitive electronic components. For all micro-fastening purposes in precision mechanics, model-making, and the electronics sector. Suitable for working on components susceptible to electrostatic discharge. Almost all standard small screwdriver sizes are included with a bit ratchet for robust fastening. Thanks to a switching angle of just 5°, also suitable for use in very confined spaces.

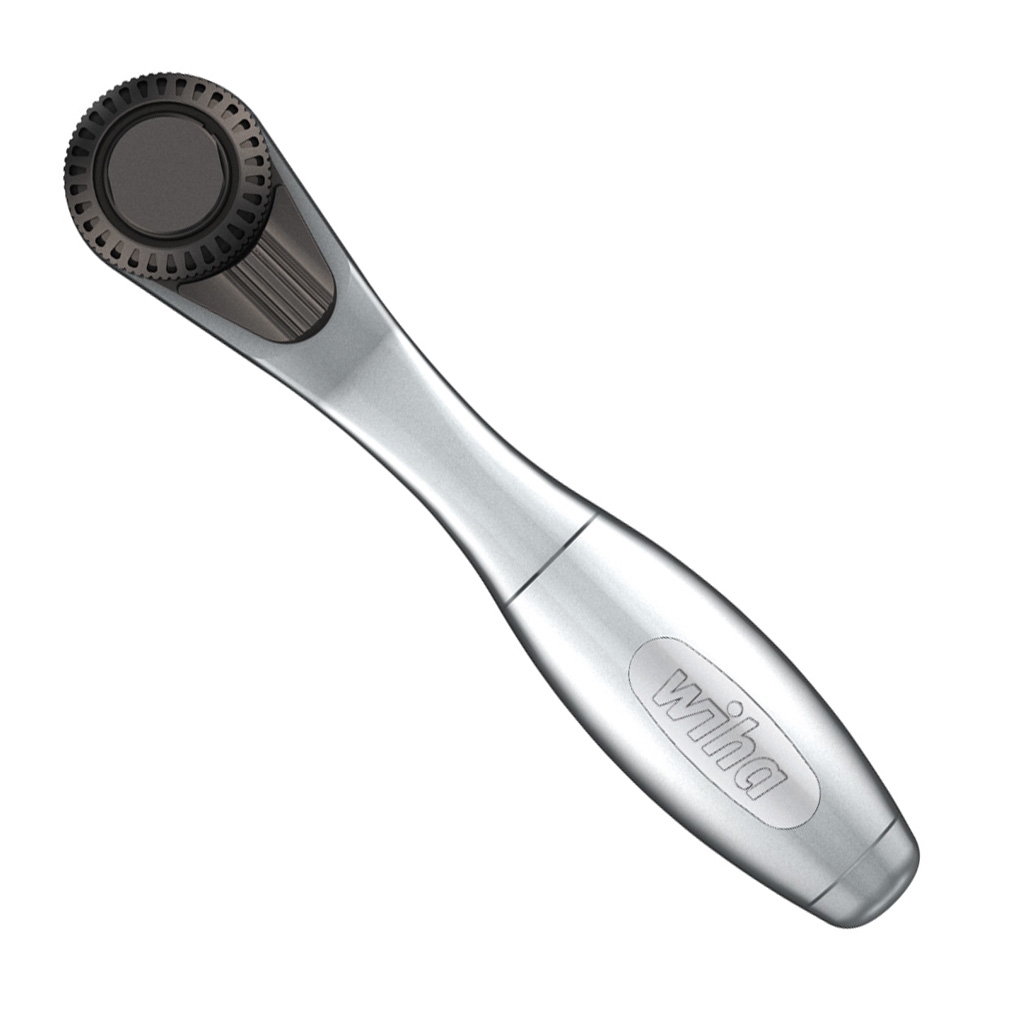

Ratchet Features:
  • Extra fine 72 tooth reversible ratchet
  • Fast action rotation thumb ring ratchet
  • Drop forged, especially robust
  • Maximum ergonomics due to user-specific SoftFinish form
  • Clockwise and anticlockwise direction can be switched via switching lever

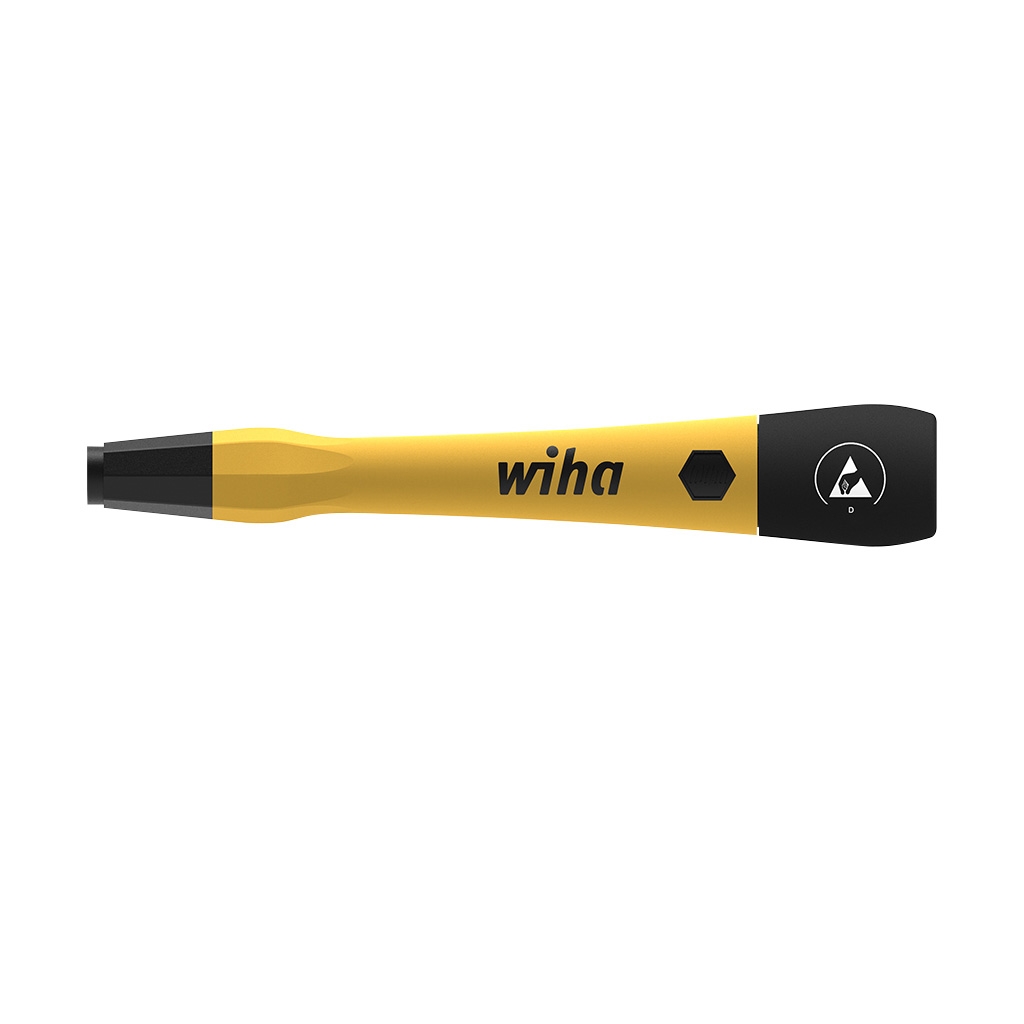

  • Handle Features:
  • Made of high-quality cadmium-free plastic
  • Tapered shape allows rapid rotation
  • Handles proportioned to blade size for optimum torque
  • Precision turning and control with the rotating cap

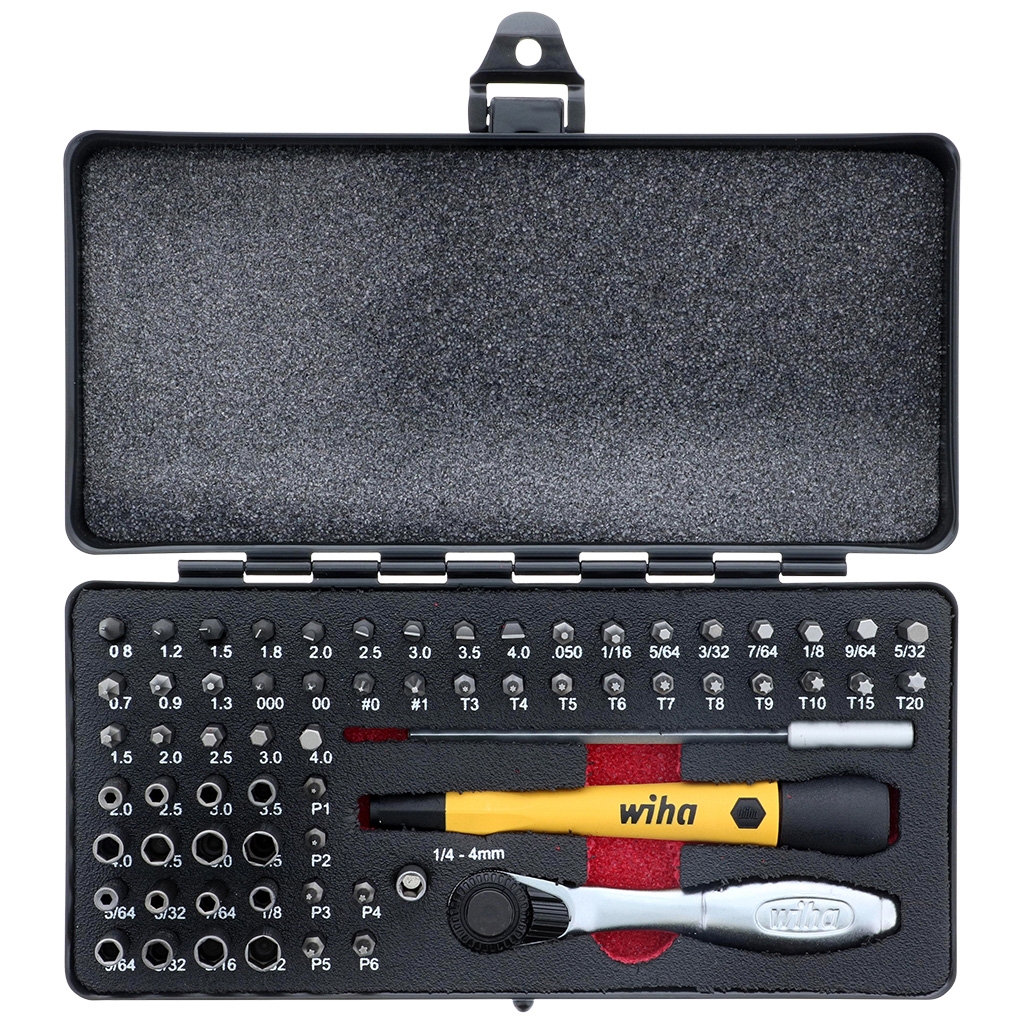

  • Bits Included:
  • Slotted: .8, 1.2, 1.5, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0mm
  • Phillips: #000, #00, #0, #1
  • Hex Metric: .7, .9, 1.35, 1.5, 2.0, 2.5, 3.0, 4.0mm
  • Hex Inch: .050, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32
  • Torx: T3, T4, T5, T6, T7, T8, T9, T10, T15, T20
  • Nut Driver Inch: 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32
  • Nut Driver Metric: 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5mm
  • Pentalobe: PL1, PL2, PL3, PL4, PL5, PL6
  • 1 - Micro Bit to 1/4" Drive Insert Bit Adapter

  • Specifications:
  • Weight (lbs): 1.160000

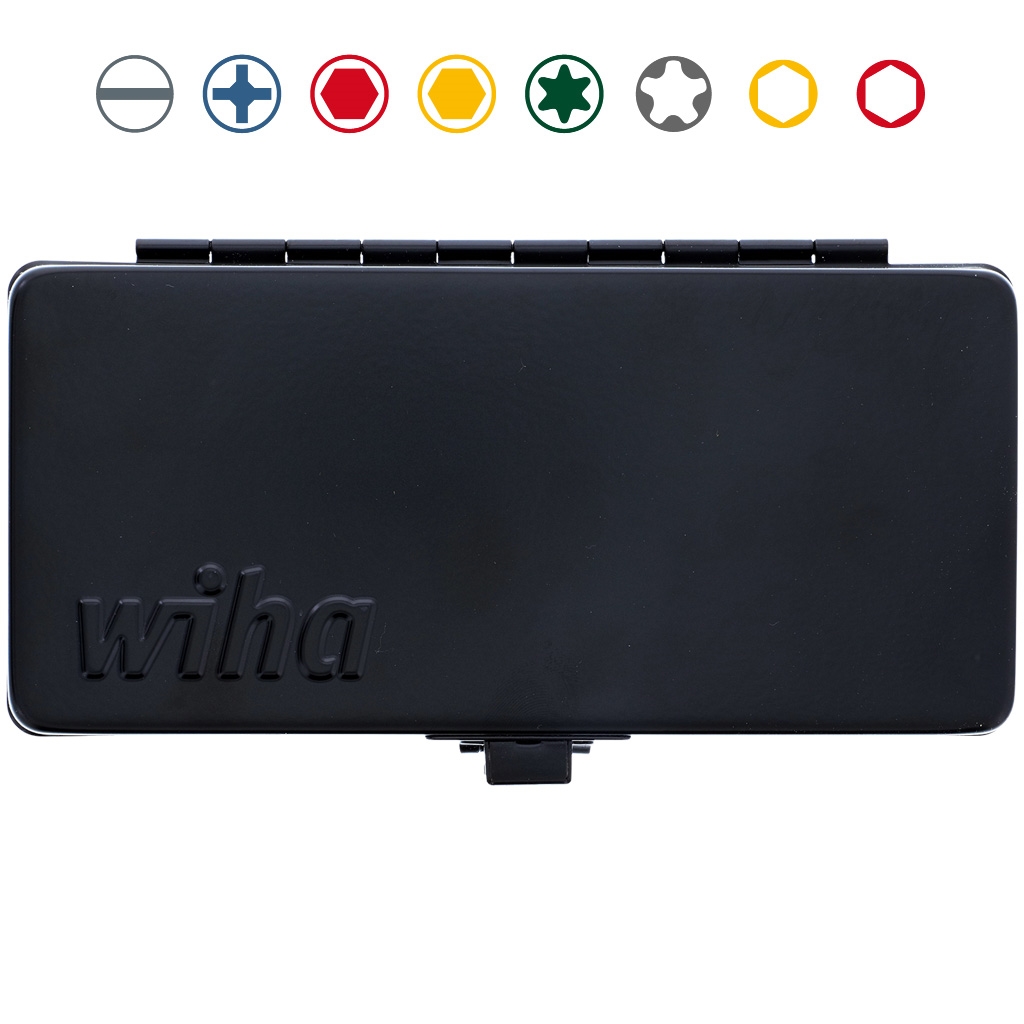

  • Packaging: Metal Box
  • Head Type: Slotted, Phillips, Hex Metric, Hex Inch, Torx, Pentalobe, Nut Driver Inch, Nut Driver Metric
  • Bit Type: Standard
  • Pieces In Set: 65
  • Handle Grip Types: ESD Safe
