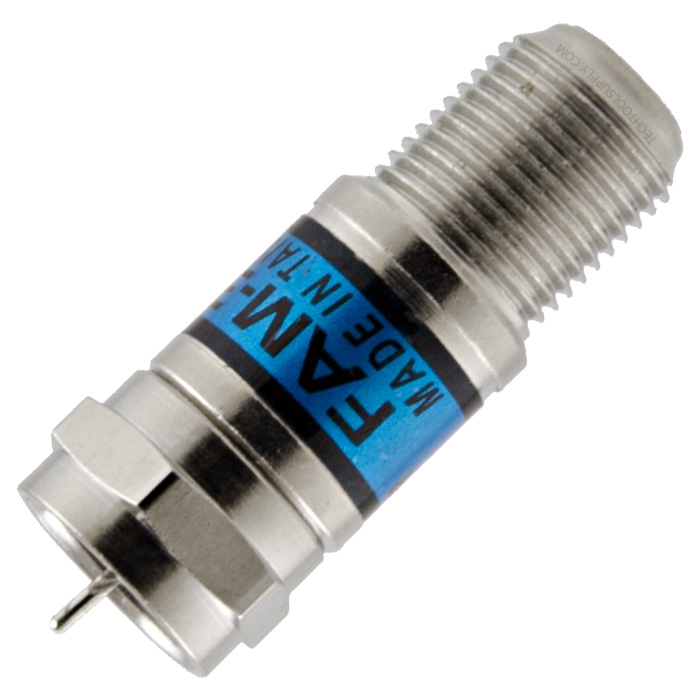

16dB Attenuator 5Mhz-3Ghz

16dB Attenuator 5Mhz-3Ghz


TTS PRICE: $1.19

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: FAM-16
QUANTITY:

PRODUCT DESCRIPTION


Holland Electronics Attenuator series has been developed to meet the requirements and improve performance of CATV, Off-Air, SMATV, and other RF distribution systems. The FAM-16 in-line attenuator can be inserted in coaxial cable feeds to reduce signal levels. Combinations of attenuators may be used together to create the exact signal loss needed.

Specifications:
  • Frequency Range: 5MHz-3GHz
  • High Accuracy (5%)
  • Attenuator Value: 16dB
  • Flatness: .8
  • Return Loss (.5 GHz / 1 GHz / 2 GHz): 25 / 22 / 18 (dB)
  • Body Material: Brass - C3602
  • Plating: 4um Nickel
  • Center Pin: 8mm Steel

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Better again! January 29, 2019
    Reviewer: Tim Custer from Warren, PA United States
    These had been good attenuators but had slipped a bit in quality the last year or so.  They seem redesigned and are now back on par with the older ones.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Needed new attenuator March 2, 2017
    Reviewer: Anonymous Person from TN United States
    Needed this to bring down the power of Downstream while increasing power of Upstream. Cable modem reports many fewer errors.
