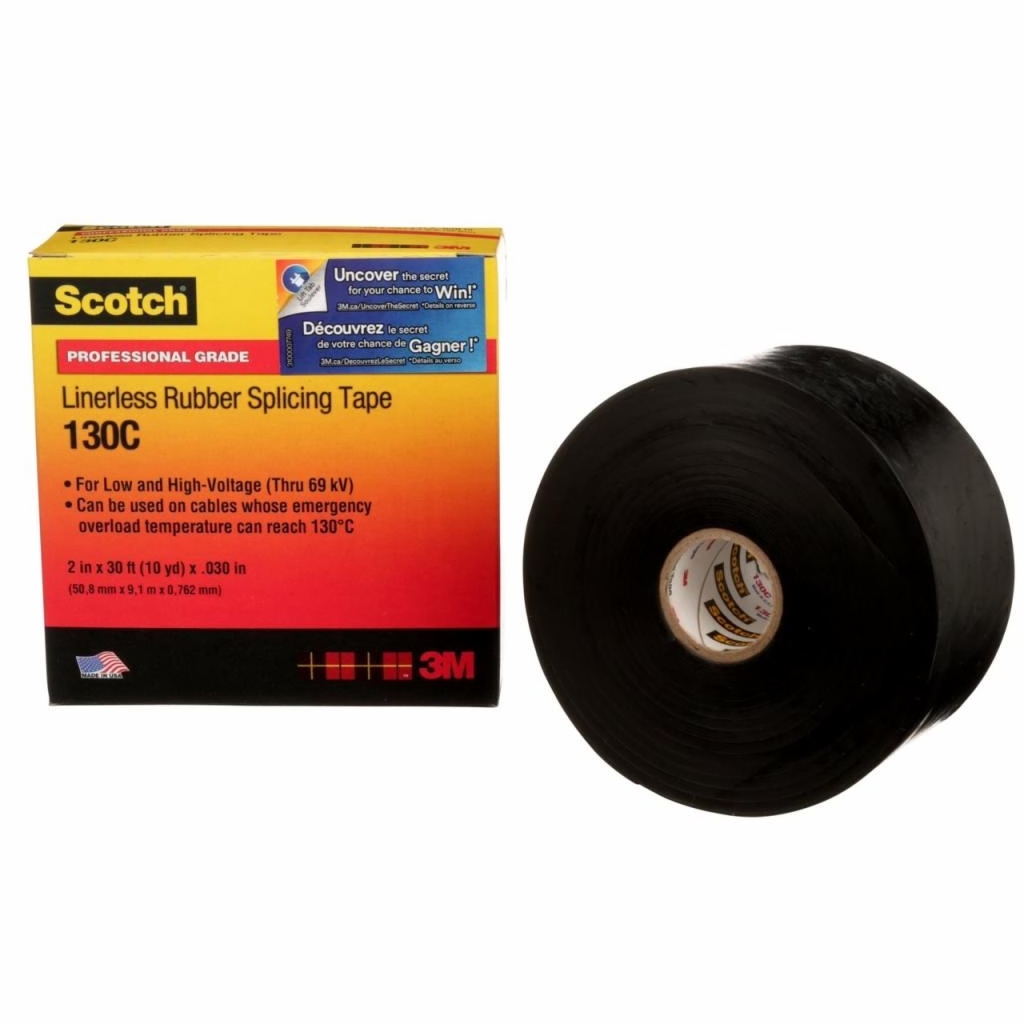

3M Linerless Rubber Splicing Tape

3M Linerless Rubber Splicing Tape




Alternative Views:


TTS PRICE: $25.99


STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: 3M-130C-34X30FT
QUANTITY:

PRODUCT DESCRIPTION


Scotch Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber-resin adhesive and a self-fusing, ethylene propylene backing. The 130C-34X30FT tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low- and high-voltage, bus bar insulation, end-sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups.

Features:
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Suitable for splicing and terminating cables and wires
  • Provides an excellent thermal dissipation of splice heat
  • Tensile strength rating of 17 lbs. per inch meets professional electrical standards
  • Withstands temperatures up to 194 degrees F (90 degrees C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

  • Specifications:
  • Adhesive Material: Rubber Resin
  • Application/Industry: Appliance and Fixture, Commercial Construction, Communications, Industrial Construction, Maintenance and Repair Operations, Mining, Solar, Utility, Wind Power
  • Applications: Insulation
  • Backing Material: Ethylene Rubber
  • Backing Thickness (metric) 0.76 mm
  • Brand: Scotch
  • Breaking Strength: 7.5 lb/in
  • Color: Black
  • Dielectric Strength: 750 V/mil
  • Dielectric Strength (V/mil): 750
  • Elongation: 850 %
  • Elongation at Break: 850%
  • Emergency Overload Temperature (Celsius): 130C
  • Emergency Overload Temperature (Fahrenheit): 266F
  • High Temperature Rating: 194F (90C)
  • Insulated: Yes
  • Insulation Resistance: >10^15 megohms
  • Length: 30 Linear Foot
  • Length (Metric): 9.1 m
  • Liner/Linerless: Linerless
  • Material: Linerless EPR
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Operating Temperature (Celsius): Up to 90 C
  • Operating Temperature (Fahrenheit): Up to 194 F
  • Product Markets: Electrical Construction, Electrical MRO, Power Distribution
  • Product Type: Rubber and Splicing Tapes
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Self-Extinguishing: No
  • Self Sticking/Amalgamating: Yes
  • Shelf Life: 5 Year
  • Solution for Access Network: FTTH/FTTB/CATV, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Infrastructure Accessories
  • Specifications: ASTM D-4388 Type 1, 2 & 3, HH-I- 553C
  • Suitable for High Voltage: Yes
  • Tape Grade: Premium
  • Tape Type: Professional Grade Rubber Tape
  • Tape Width (metric) 19 mm
  • Tensile Strength: 250 psi
  • Tensile Strength (metric): 1723 kPa
  • Thickness: 30 mil
  • Total Thickness: 0.76 mm
  • UV Resistant: Yes
  • Voltage Application: High Voltage
  • Vulcanizing: Yes
  • Width: 0.75 Inch (19mm)
