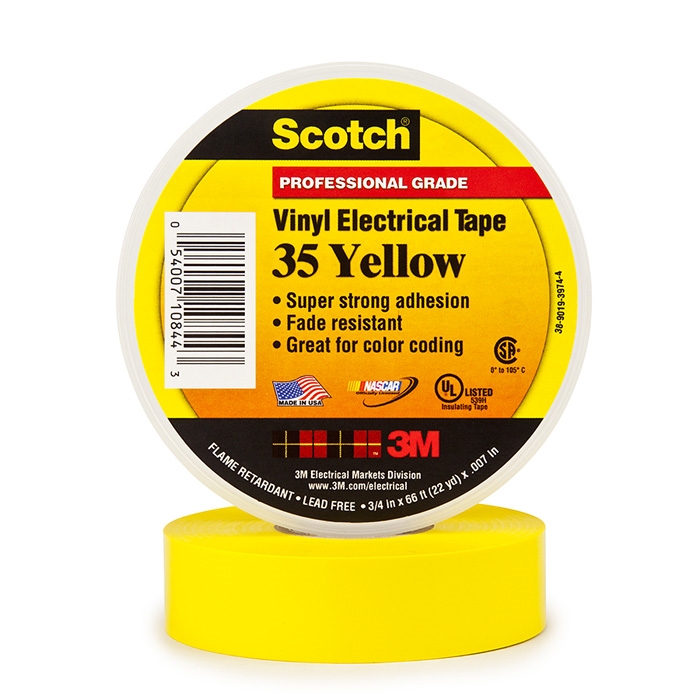

3M Scotch Vinyl Electrical Tape 35 - Yellow

3M Scotch Vinyl Electrical Tape 35 - Yellow




TTS PRICE: $8.29

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: 3M-35YL
QUANTITY:

PRODUCT DESCRIPTION


Scotch Vinyl Electrical Tape 35 is a premium-grade, 7-mil thick polyvinyl chloride (PVC) color-coding tape. Outstanding electrical and mechanical properties make this tape excellent for use in phase identification, color coding of motor leads and piping systems.

Scotch Vinyl Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure-sensitive, rubber-resin adhesive and an elastic PVC backing. This tape is flame-retardant and is highly resistant to UV rays, abrasion, moisture, alkalis, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant.

Features:
  • Excellent electrical and mechanical protection from combined pressure-sensitive, rubber-resin adhesive and PVC backing
  • Pressure sensitive rubber adhesive bonds easily and securely
  • Suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas
  • Tensile strength rating of 17 lbs. per inch meets professional electrical standards
  • Withstands a temperature range of 32 to 221 degrees F (0 to 105 degrees C)
  • UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant

  • Specifications:
  • Color: Yellow
  • Width: 3/4in (19mm)
  • Length: 66ft (20m)
  • Adhesion to Steel: 2,2 N/cm
  • Adhesive Material: Rubber Resin
  • Adhesive Type: Rubber
  • Agency Approvals: CSA Certified, UL Listed
  • Backing Material: Vinyl
  • Backing Thickness (metric): 0.18 mm
  • Breaking Strength: 17 lb/in
  • Chemical Resistant: Yes
  • Dielectric Strength: 1250 V/mil
  • Elongation: 225 %
  • Elongation at Break: 225%
  • Flame Retardant: Yes
  • High Temperature Rating 221F (105C)
  • Insulated: Yes
  • Insulation Resistance: > 10^6 megohms
  • Low Temperature Rating: 32F (0C)
  • Material: PVC
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Operating Temperature (Celsius): Up to 105 Degree Celsius
  • Operating Temperature Range (Celsius): 0 C to 105 C
  • Operating Temperature Range (Fahrenheit): 32 F to 220 F
  • RoHS 2011/65/EU Compliant: Yes
  • Self-Extinguishing: No
  • Self Sticking/Amalgamating: No
  • Shelf Life: 5 Year
  • Tape Grade: Premium
  • Tape Type: Vinyl
  • Thickness: 7 mil
  • Thickness (Metric): 0.178 mm
  • Total Thickness: 0.18 mm
  • UL File Number: E129200
  • UV Resistant: Yes
  • Voltage Application: Low Voltage
  • Voltage Range: 0 - 600 V
  • Voltage Rating: 600 V
  • Vulcanizing: No
