6dB Attenuator 5Mhz-3Ghz

6dB Attenuator 5Mhz-3Ghz


TTS PRICE: $1.79

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: FAM-6
QUANTITY:

PRODUCT DESCRIPTION

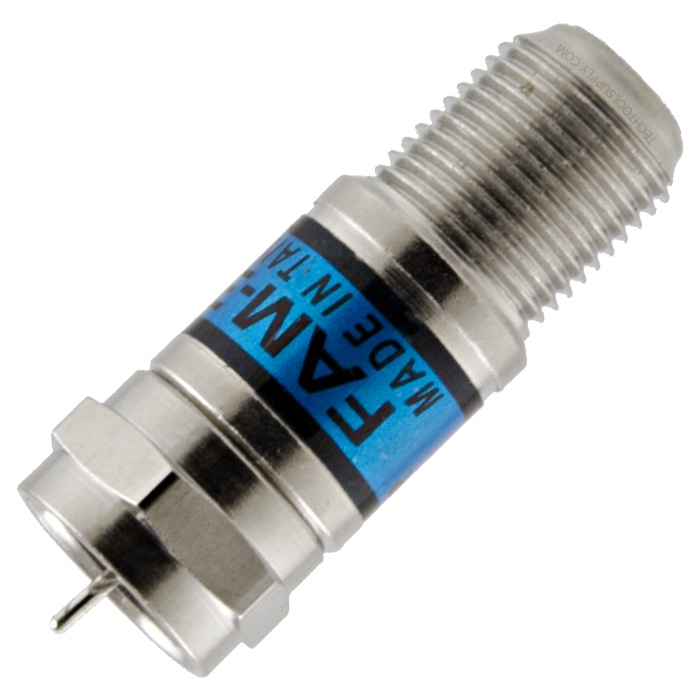

Holland Electronics Attenuator series has been developed to meet the requirements and improve performance of CATV, Off-Air, SMATV, and other RF distribution systems. The FAM-6 in-line attenuator can be inserted in coaxial cable feeds to reduce signal levels. Combinations of attenuators may be used together to create the exact signal loss needed.

Specifications:
  • Frequency Range: 5MHz-3GHz
  • High Accuracy (5%)
  • Attenuator Value: 6dB
  • Flatness: .8
  • Return Loss (.5 GHz / 1 GHz / 2 GHz): 25 / 22 / 18 (dB)
  • Body Material: Brass - C3602
  • Plating: 4um Nickel
  • Center Pin: 8mm Steel
    •

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 5 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Works great! Tuesday, August 29, 2023
    Reviewer: St. Clair from Swansea, IL United States
    Exactly what I needed.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    4 of 5 Freetv Wednesday, October 21, 2020
    Reviewer: Anonymous Person from Granada Hills, CA United States
    Seems to help untangle some of the too strong signals so that my antenna works a little better.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Less of all that Wednesday, March 6, 2019
    Reviewer: Randall from SAMMAMISH, WA United States
    Yup, it reduces the signal level by 6db. I checked it. It was used to simulate cable loss on the bench but has other uses as well.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Better Again! Tuesday, January 29, 2019
    Reviewer: Tim Custer from Warren, PA United States
    These had been good attenuators but had slipped a bit in quality the last year or so.  They seem redesigned and are now back on par with the older ones.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Would definitely shop here again! Wednesday, March 15, 2017
    Reviewer: Jacob from Denham Springs, LA United States
    Exactly what I ordered, great prices, and it arrived several days sooner than originally expected!

    Was this review helpful to you?
