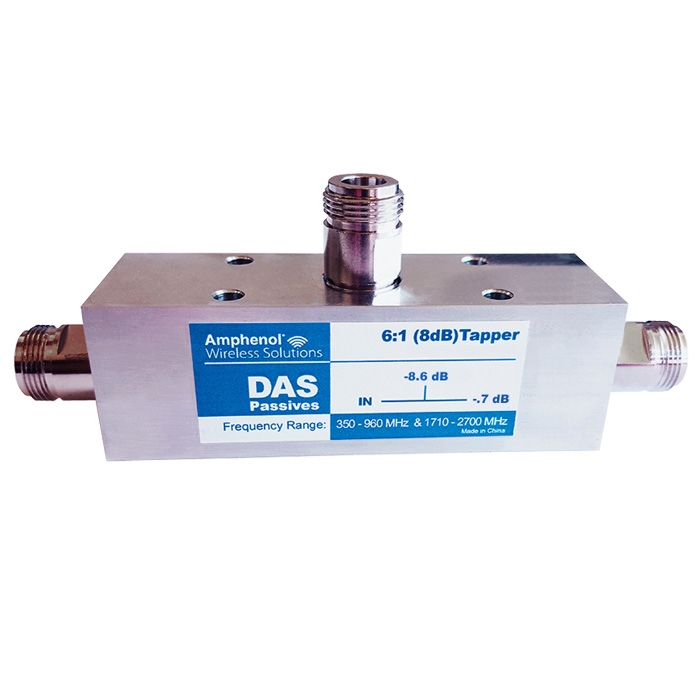

Amphenol 350-2700 MHz 4.3-10 DAS Tapper

Home > Categories > RF Distribution > Amplifiers > Satellite Amplifiers >

Amphenol 350-2700 MHz 4.3-10 DAS Tapper - 8dB

TTS PRICE: $141.99

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: HOL-HPT8-B-35027

QUANTITY:

PRODUCT DESCRIPTION

Amphenol's Tappers receive and distribute high power, wireless signals in a fixed proportion to the DAS network. With RF performance optimized for carrier signals in the 350-2700 MHz bands, the HPT8-B-35027 offers fixed-ration split of 6:1. These tappers offer low VSWR (high return loss) at the input port. Tight machining tolerances in the internal air dielectric design allow a narrow flatness tolerance to the tap port. Materials and plating were carefully chosen to achieve minimal PIM for low PIM applications.

These DAS tappers offer excellent signal reliability indoors and out - meeting IP67 specifications.

Features:

Low PIM Tested and Verified

500 Watt Average Power Rating

Minimal RF Insertion Loss

High Environment Reliability; IP67

RoHS Compliant

Specifications:

Output Split Ratio, Nominal (dB Inequality between Outputs): 6:1/8.0dB

Outputs Ref. to Input Level, Including Loss (dB):

Main/Branch (dB): -0.7/-8.6
Branch Flatness: ±0.8

Input VSWR Maximum:

700-2500 MHz: 1.2:1
350-2700 MHz: 1.2:1

Frequency Bands: 350 - 960 MHz and 1,710 - 2,700 MHz; Uncoupled: 1550-1650 MHz

Dissipative Loss: 0.1 dB ,am/ (main line)

Power Rating: 500W avg., 3 kW peak

Impedance: 50Ω nominal

Intermod. (PIM): <-161 dBc (Test with 2x20W tones)

Environment: IP67

Temperature Range: -35°C to -75°C

Connectors (Body/Finish): Brass/Trimetal

Housing Finish: Passivated Aluminum

Weight, nom: 14 oz (380 g)

Mounting: Bracket supplied
