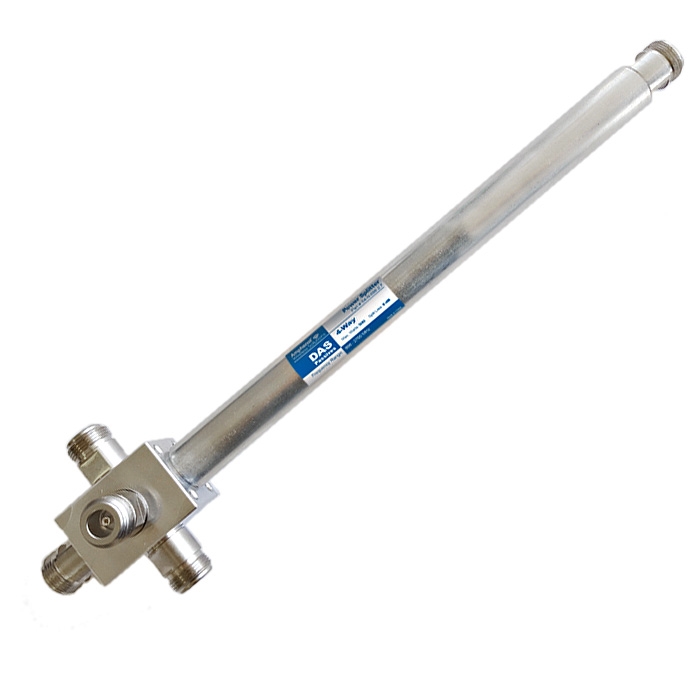

Amphenol 694-2700 MHz 4.3-10 DAS Power Splitter - 4-Way

Amphenol 694-2700 MHz 4.3-10 DAS Power Splitter - 4-Way




TTS PRICE: $151.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-HPS-4B-69827
QUANTITY:

PRODUCT DESCRIPTION


Amphenol's HPS 4-way splitter distributes wireless signals evenly throughout a DAS system. RF performance is optimized for carrier signals in the 694-2700 MHz band. The tight dimensional tolerances of the splitter's internal machines components and air dielectric design offers excellent low input VSWR (high return loss) to minimize network reflections. Insertion loss variances to output ports are also constrained to a minimum - an important detail when designing a network.

Mechanically, the splitter case material and component metal plating compositions make these splitters suitable for low PIM applications. Meeting IP67 specifications, the HPS splitters offer excellent signal and mechanical reliability indoors and out.

Features:
  • Low PIM < -161 dBc
  • Broad Frequency Range
  • Rated to 500 Watts
  • Low VSWR and Loss
  • Low PIM Tested and Verified
  • Meets IP67 Specifications
  • RoHS Compliant

  • Specifications:
  • Ways Split: 4
  • Frequency Band (MHz): 694-2700
  • Split Loss (dB): 6
  • Amplitude Balance (dB), Typical: 0.25
  • Input VSWR: <1.25:1
  • Impedance: 50Ω nominal
  • Power Rating: 500W avg., 3kW pk.
  • PIM -2 tones at +43 dBm: <- 161 dBc
  • Environment: IP67, RoHS compliant
  • Operating Temperature: -35C to +75C
  • Connectors Finish: Brass/Triplate
  • Housing Finish: Passivative Aluminum
  • Mounting: Bracket & clip supplied
  • Weight (lbs.)/(kg): 0.70/0.32
