Platinum Tools ezEX44 Shielded Connector (ext Ground) - 25pc

Platinum Tools ezEX-44 Shielded Connector - 25pc

Alternative Views:

TTS PRICE: $54.91

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: PLA-100025C

QUANTITY:

PRODUCT DESCRIPTION

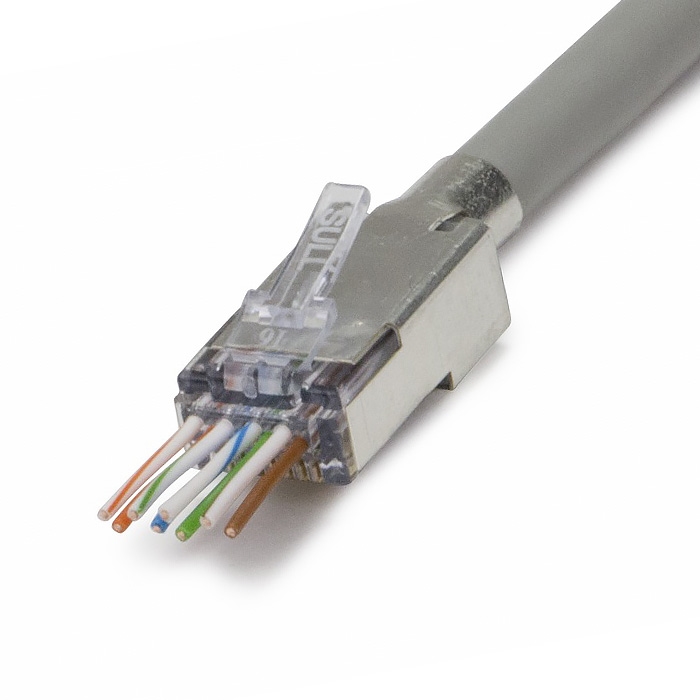

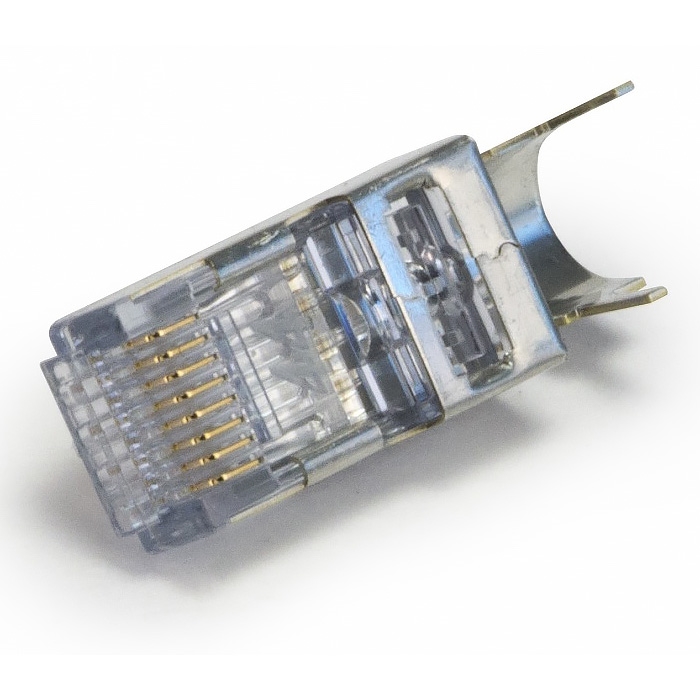

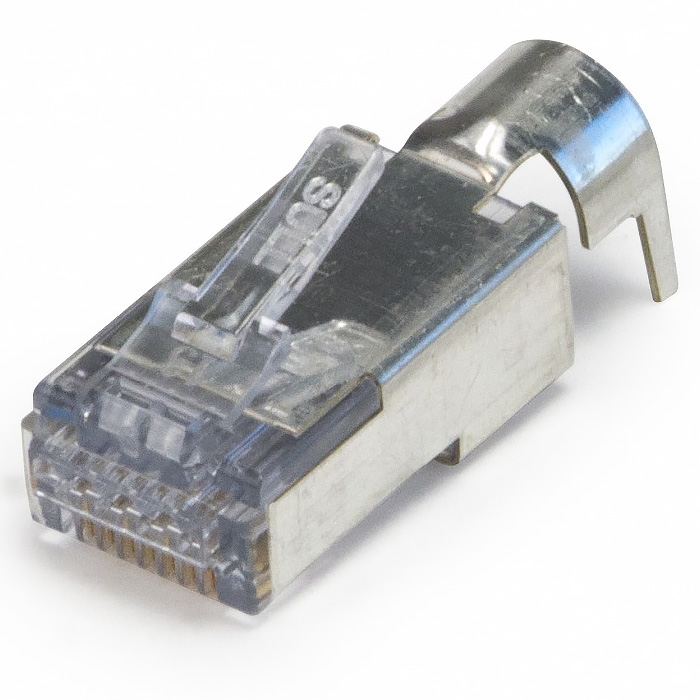

The ezEX 44 RJ45 shielded connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C), found here: Platinum Tools EXO Crimp Frame w/ EXO-EX Die.

Features:

Hi-Lo stagger to isolate each conductor

Simple one piece/pass through design, no bars or liners

Shielded 5e/6/6A compliant

Specifications:

Quantity: 25 connectors

Insulation Diameter (Conductor) - size range: 0.039” – 0.044” (1.0 –1.12mm)

Max Outer Diameter: 0.305” (7.75mm)

Solid or Stranded: 24-22 AWG

Compliant: TAA, TIA, RoHS, UL & FCC
