This kit includes everything you need to properly terminate most CAT6A cable with RJ45 ends. This kit includes Platinum Tools newest crimper which consists of the EXO tool and ezEX Die. This Kit is designed to work with .043in-.048in conductors with a max overall jacket diameter of .290in (Typically CAT6A).
Are you new to EZ-RJ45? Looking for a simple to learn RJ45 connector for your technicians? This is it!

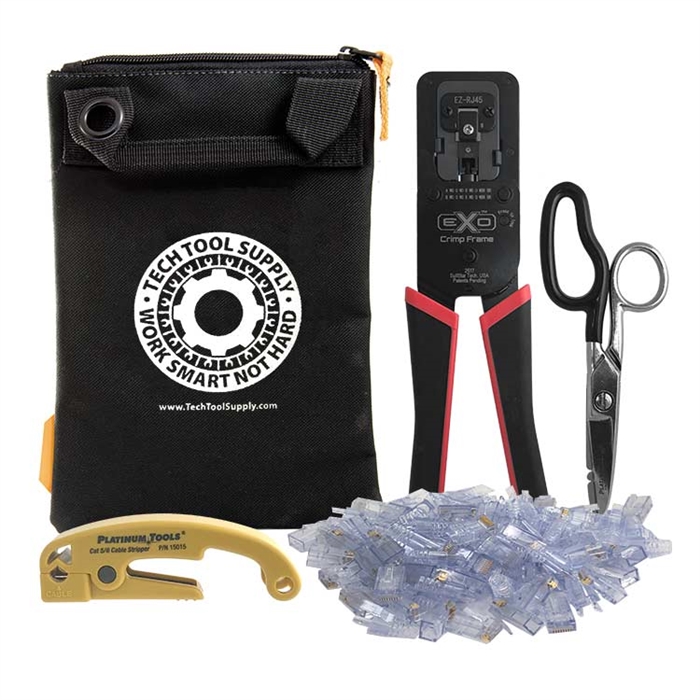

This EZ-RJ45 Kit includes everything you see in Platinum Tools EZ-RJ45 termination video as seen below. With this kit, you will be able to make perfect RJ45 terminations on most CAT6A cables.
EXO Frame & exEZ Die / Crimping Tool (PLA-100061C)
Pro Electricians Scissors (10525)
CAT5/6 Stripper (15015)
50 exEZ48 CAT6A Connectors (PLA-100029C)
TTS-SGB Tool Pouch
What's so special about EZ-RJ45
: The patented EZ-RJ45 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance. Crimp with the patented exEZ Die and EXO Tool...crimps and trims in one cycle. Manufactured in the USA. Patented.
Thru holes allow wire pairs to be inserted thru front of connector for faster terminations
Works with solid or stranded wire
Simple one piece design...no bars or liners
FCC compliant, UL rated. Use in category 3, 5, 5E compliant data networks
EZ to verify wire sequence
EXO EZ-RJ45 Crimping Tool
:We are huge fans of manufacturers that are forward thinking with their product development; the EXO Crimp Frame is a great example of that. As technology advances, wire and connectors are going to continue to evolve. Platinum Tools EXO Crimp Frame is engineered to allow users to swap out dies as needed and avoid having to purchase an entirely new tool. The EXO Crimp Frame has dies available for EZ-RJ45 (not included) as well as the newer exEZ-RJ45 connectors (included).
This EXO Crimp Frame comes equipped with Platinum Tools EXO-EX die which is designed specifically for the exEZ-RJ45 connector.
If you are not familiar with the ezEX-RJ45 connectors, they were engineered specifically for terminating larger diameter twisted-pair cables with conductor sizes up to .048in. The exEZ-RJ45 allows for the larger wire by cleverly staggering each conductor. As with all EZ connectors, the wiring can be quickly verified by the wires protruding prior to crimping. It is important to note the exEZ-RJ45 connectors can only be crimped with this EXO crimper and EXO-EX Die.
One really cool feature that stuck out to our team is the "click" you hear once the connector is in the crimper. That "click" means it's the right connector for the die and it's ready to crimp. Another great addition is the push button lock mechanism that makes the tool easy to put back into your tool bag. When it's in it's locked position, the Die is firmly secured in the frame and will not let loose and fall out.
The EXO-EX Die (part number: PLA-100071C) included with this Crimper is not backward compatible with current EZ-RJ45 connectors. This Die must only be used with ezEX44 and ezEX48 connectors.
Single cycle crimp and flush trim
EXO Die is easily interchangeable
Reversible EXO Die for ambidextrous operation
Connectors lock into tool for correct positioning during crimp
Push button lock for easy storage
Ergonomic comfort grip TPR handles
Includes EXO-EX Die for crimping ezEX44 and ezEX48 connectors
Terminates larger cables and conducts Cat6 and Cat6A
EXO Crimp Frame works with EZ-RJ45 Die for crimping EZ-RJ45 connectors
: Platinum Tools Professional Electrician's Scissors are designed for use in electrical, telephone and datacom service applications. The ergonomically designed large ring provides more power while reducing fatigue and wrist strain. The bottom blade features serrated teeth for gripping cable and wire. The Professional Electrician's Scissors are a great addition to any tool kit.
Cuts stranded wire to 12 AWG
Cuts solid wire to 16 AWG
Trims kevlar in fiber optic cable
Strips 19 to 23 AWG wire
Serrated edges on back of blades for cleaning wire and binding posts
: This economical tool has been specifically designed to strip the cable jackets from Category 5 and 5e twisted pair cables. No adjustments are required and will not nick the inner conductors. Durable high impact plastic housing is molded from yellow plastic to make it easier to locate. Long life blade.
Designed for stripping the cable jacket on Category 5, 5e cables
No adjustments required
Will not nick inner conductor
