Platinum Tools 106230 Cat6A Flex RJ45 Connector - Shielded, Field-Installable, Tool-less
The Shielded Cat6A Flex Connector from Platinum Tools makes Cat6A and Cat7 terminations easier than ever. The unique patented design ensures top tier performance for Cat6A and Cat7 cabling. These connectors provide a low cost, easy termination solution with high performance and superior connectivity options.
Features:
Tool-less termination design - no crimp tool required
Minimal tools required for preparation
Works with both solid and stranded conductors
Machine-precision-set contact height

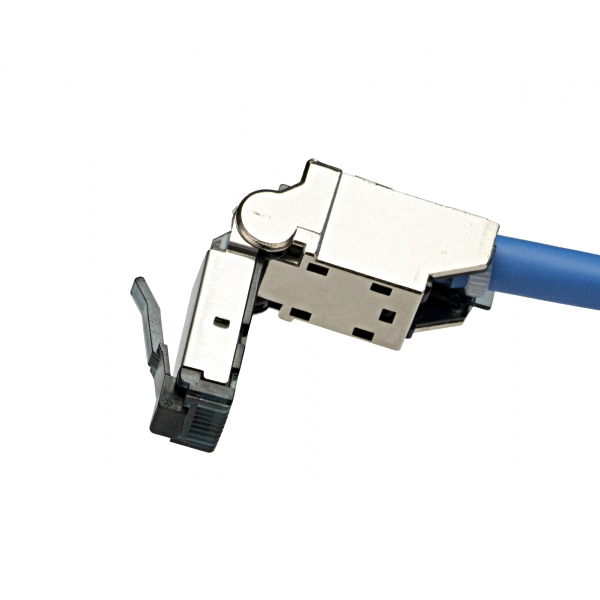

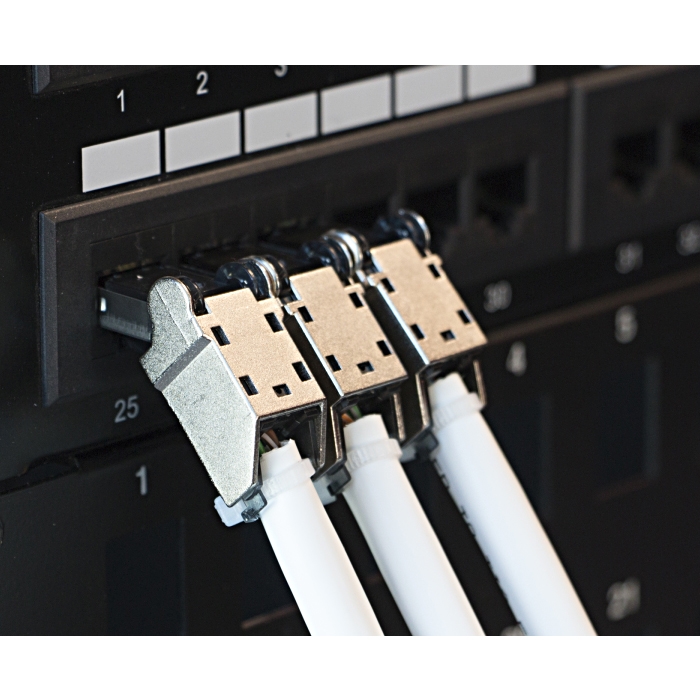

Flexes 90 degrees down and 45 degrees up for low-profile installations and tight cable paths
Specifications:
Connector Type: Field-Installable RJ45 (8P8C) Flex Connector
Category: Cat6A; also compatible with Cat5e and Cat6
Cable: Accommodates Cat6A and Cat7 Cables up to 9.0mm and 26-22 AWG Conductors
Conductors: Solid and stranded
Flex Range: Can flex 90 degrees down and 45 degrees up
Frequency: Rated up to 1GHz
Performance: 10-Gigabit certified, PoE+ rated
Shielding: Shielded with internal ground
Material: Polycarbonate
Color: Metal
Quantity: 1
Packaging: Bulk bag
Model: 106230
Product Instruction Sheet
