New!  Platinum Tools ezEX44 Shielded Connector (ext Ground) - 50pc

Platinum Tools ezEX-44 Shielded Connector - 50pc


Alternative Views:
TTS PRICE: $108.35


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: PLA-202051J
QUANTITY:

PRODUCT DESCRIPTION

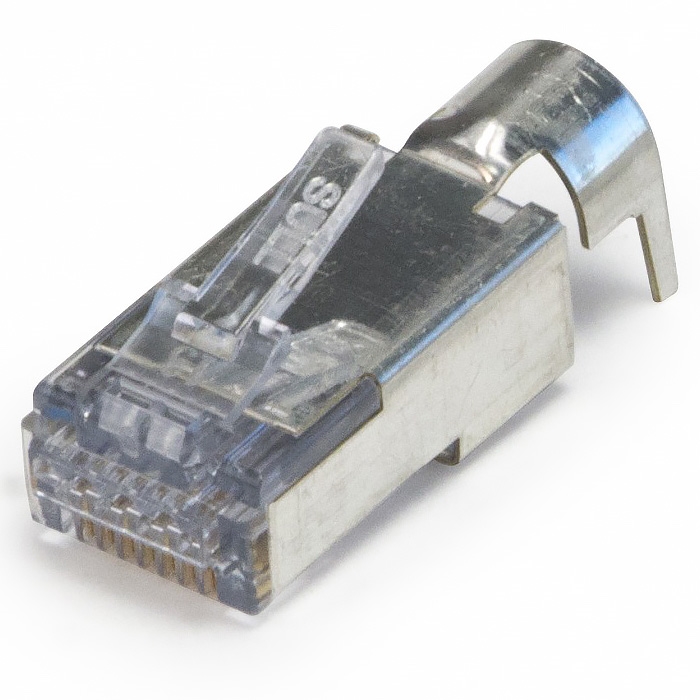

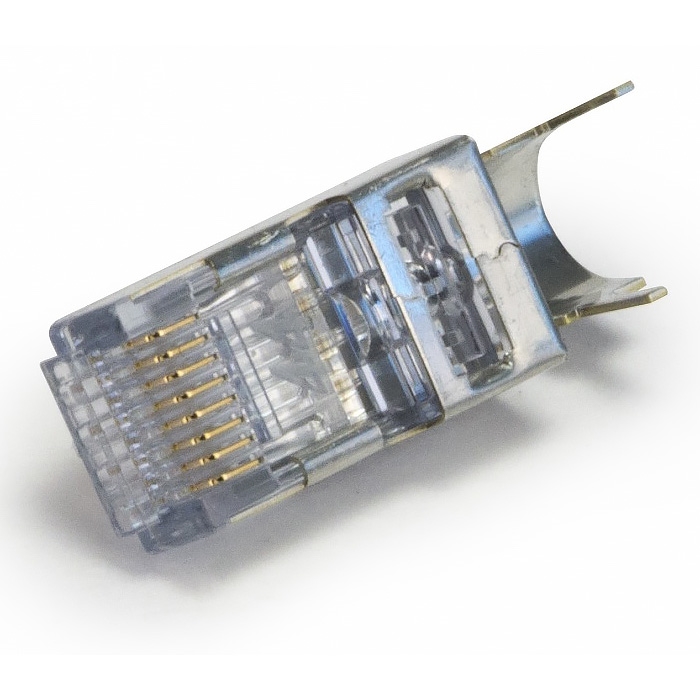

Platinum Tools 202051J ezEX44 Shielded RJ45 Connectors - External Ground, Cat6, Jar of 50

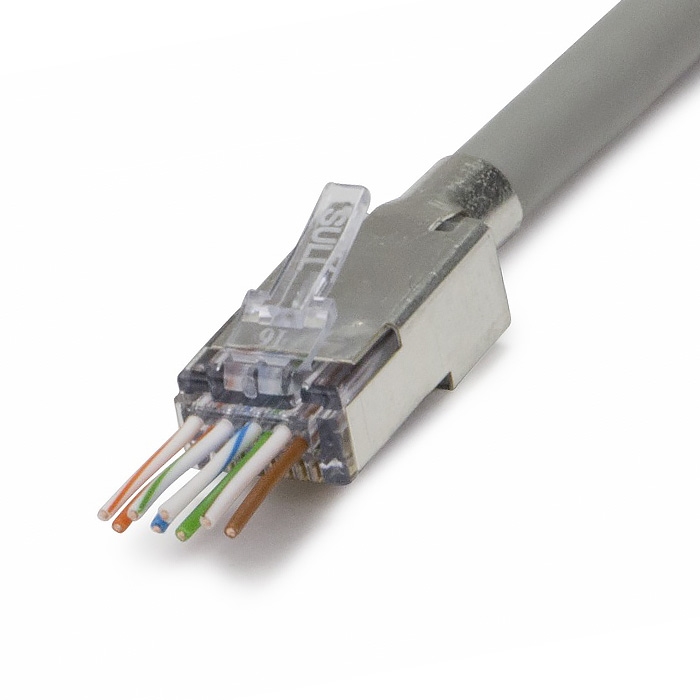

The ezEX44 RJ45 shielded connectors feature a unique integrated Hi-Lo stagger load bar and allow 'big' conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating.

This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C).

Features:
  • ezEX-RJ45 pass-through design (ezEX44 series)
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded with external ground
  • Shielded 5e/6/6A compliant
  • Packed 50 per jar with screw lid

    • Specifications:
  • Connector Type: RJ45, shielded ezEX-RJ45 pass-through (ezEX44)
  • Shielding: Shielded, external ground
  • Quantity: 50 connectors (jar)
  • Insulation Diameter (Conductor): 0.039" - 0.044" (1.0 - 1.12mm)
  • Max Outer Diameter: 0.305" (7.75mm)
  • Conductor: Solid or Stranded, 22-24 AWG
  • Material: Polycarbonate
  • Compliant: TAA, TIA, RoHS, UL & FCC
  • Model: 202051J


    • Fits These Tools:
    Part #Platinum #Description
    PLA-100061C100061CEXO crimp frame with EXO-EX die - required to terminate ezEX-RJ45 connectors
    PLA-100071C100071CEXO-EX die only, for an EXO crimp frame you already own

    Related Products:
    Part #Platinum #Description
    PLA-100025C100025CezEX44 shielded connectors with external ground, 25 pc
    PLA-202050J202050JezEX44 shielded connectors with internal ground, jar of 50
    PLA-105029105029ezEX48 shielded connectors with external ground, 100 pc
    PLA-20392039Copper foil strips for shielded RJ45 connectors, 100 pcs
    ezEX-RJ45 Termination System Flyer ezEX-RJ45 Connectors Product Sheet ezEX-RJ45 Product Sheet
