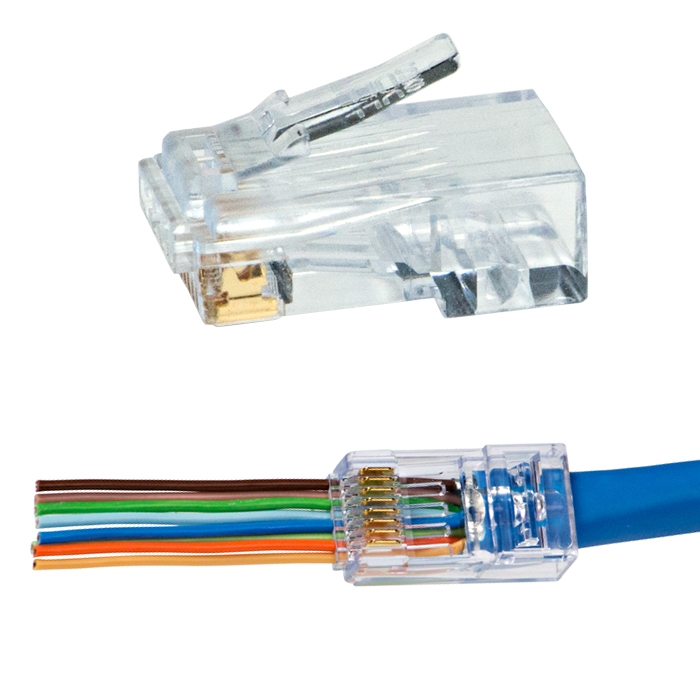

The ezEX44 RJ45 connectors from Platinum Tools are designed for larger diameter conductors (typically Cat6). Featuring a unique integrated Hi-Lo stagger that allows big conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.
These connectors can ONLY be terminated with the EXO Crimp Frame and EXO-EX Die (PLA-100061C).

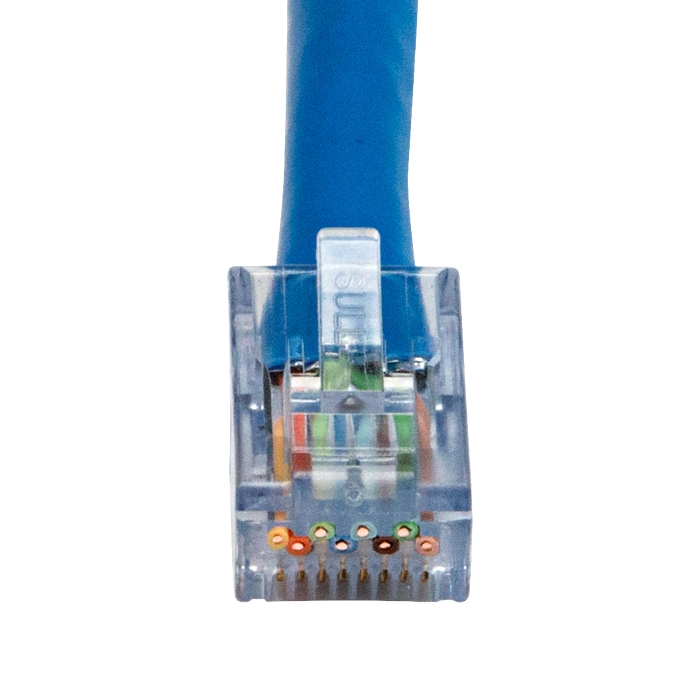

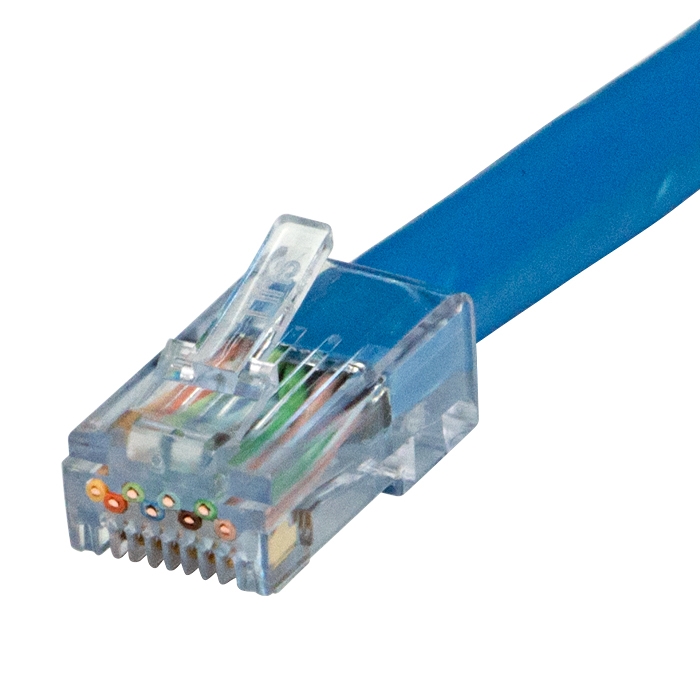

Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass through design, no bars or liners

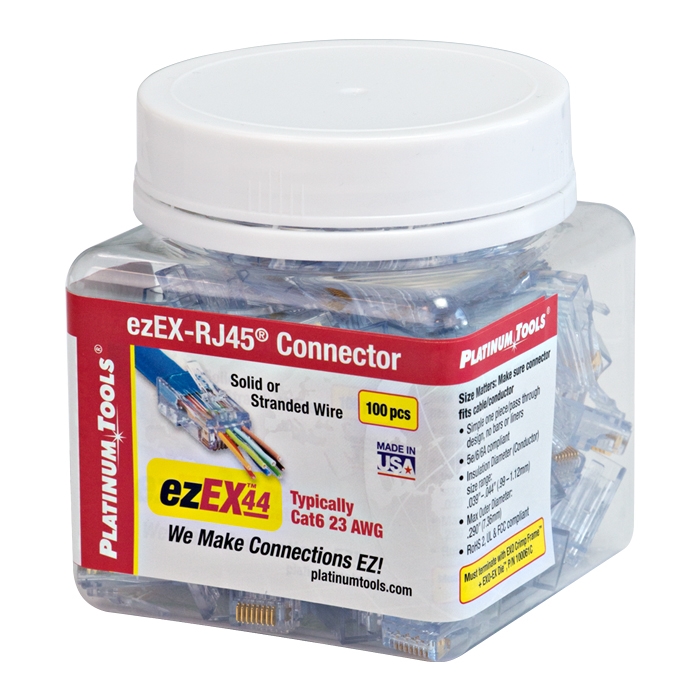

Quantity: 100 connectors
Insulation Diameter (conductor) size range: .039 .044 (1.0 1.12mm)
Max Outer Diameter: .290 (7.36mm)
Solid or Stranded 22-24 AWG
Compliant: 5e/6/6A, RoHS 2, UL & FCC
Made in the USA
Platinum Tools ezEX-RJ45 Termination System Spec Sheet
