Platinum Tools ezEX44 Shielded Connector (ext Ground) - 25pc

Platinum Tools ezEX-44 Shielded Connector - 25pc

Alternative Views:

TTS PRICE: $54.78

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: PLA-100025C

QUANTITY:

PRODUCT DESCRIPTION

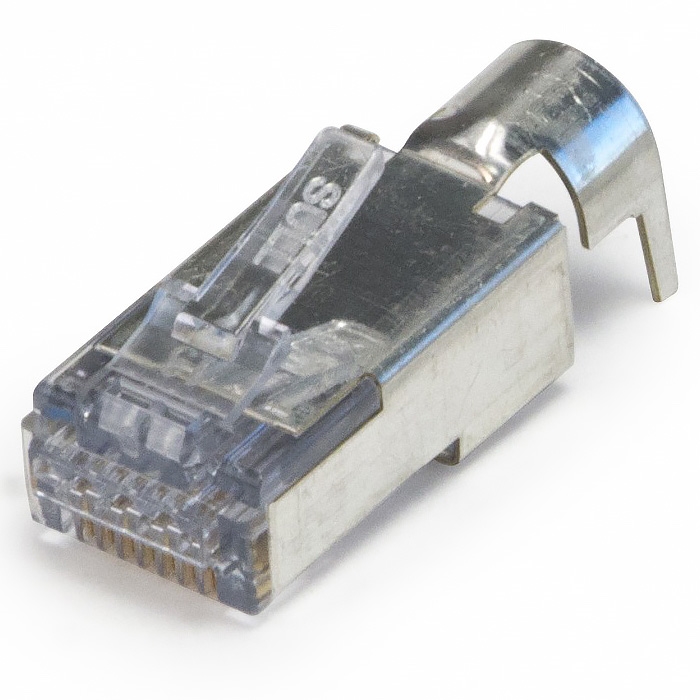

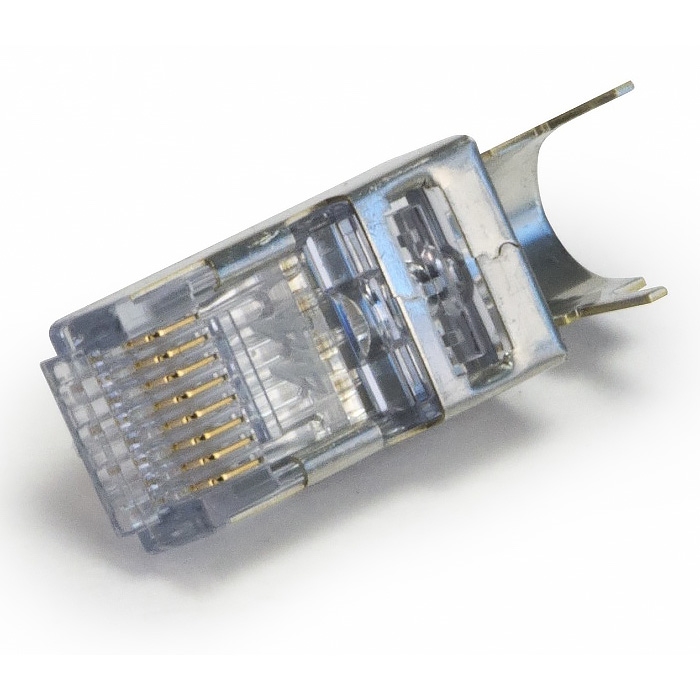

Platinum Tools 100025C ezEX44 Shielded ezEX-RJ45 Connectors - External Ground, 25 Pack

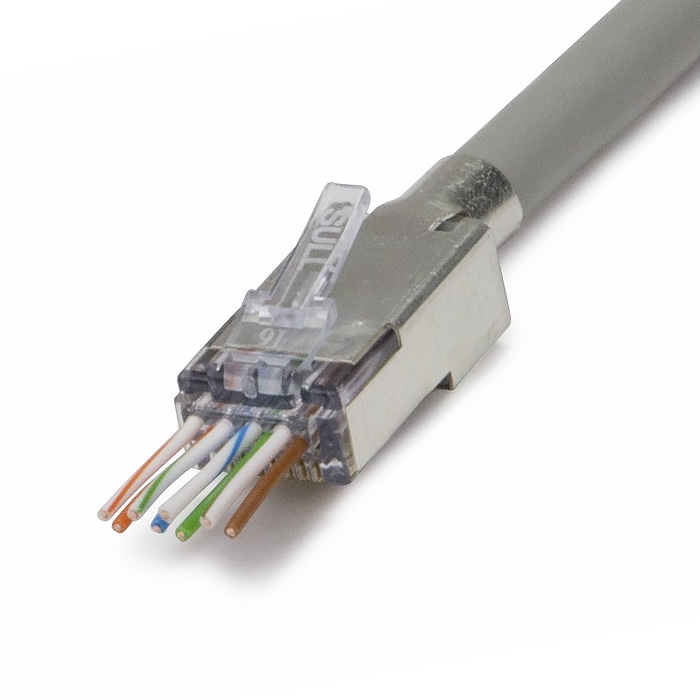

The ezEX 44 RJ45 shielded connectors feature a unique integrated Hi-Lo stagger load bar and allow 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C).

Features:

Hi-Lo stagger to isolate each conductor

Simple one piece/pass through design, no bars or liners

Shielded with external ground

Shielded 5e/6/6A compliant

Specifications:

Type: ezEX-RJ45 Shielded Pass-Through Connector (ezEX44 series)

Ground: External

Quantity: 25 connectors

Insulation Diameter (Conductor) - Size range: 0.039" - 0.044" (1.0 - 1.12mm)

Max Outer Diameter: 0.305" (7.75mm)

Solid or Stranded: 24-22 AWG

Material: Polycarbonate

Color: Metal

Compliance: TAA, TIA, RoHS, UL & FCC

Model: 100025C

Fits These Tools:

Part #	Platinum #	Description
PLA-100061C	100061C	EXO crimp frame with EXO-EX die (required to terminate)
PLA-100060C	100060C	EXO crimp frame (use with EXO-EX die)
PLA-100071C	100071C	EXO-EX die for EXO crimp frame
