Platinum Tools EXO Crimp Frame w/ EXO-EX Die

Platinum Tools EXO Crimp Frame w/ EXO-EX Die




Alternative Views:


TTS PRICE: $86.67

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: PLA-100061C
QUANTITY:

PRODUCT DESCRIPTION

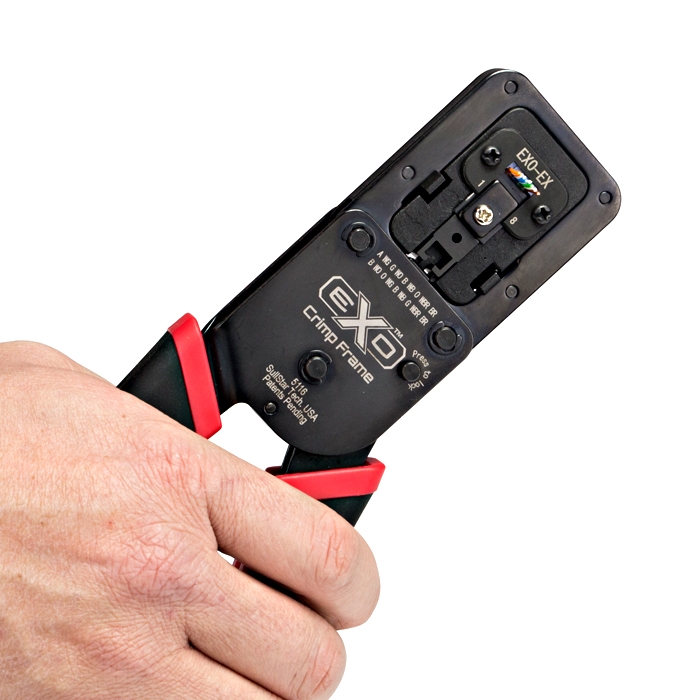

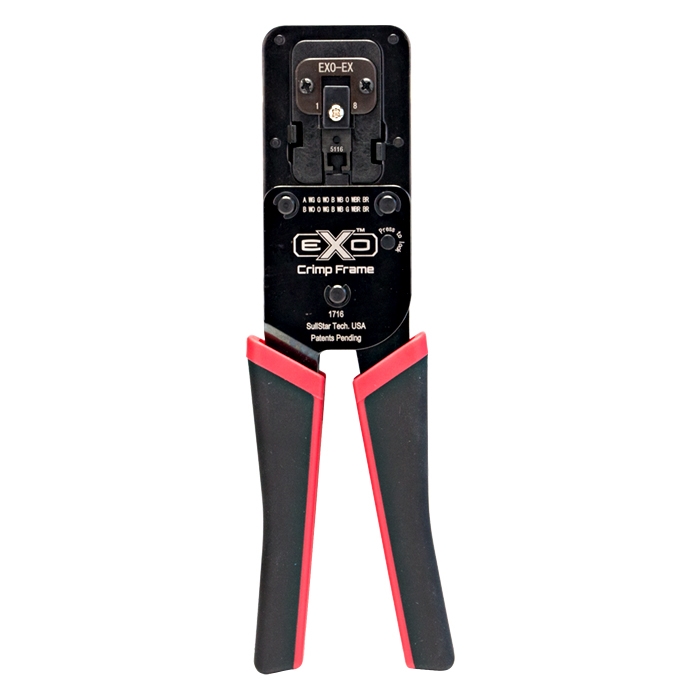

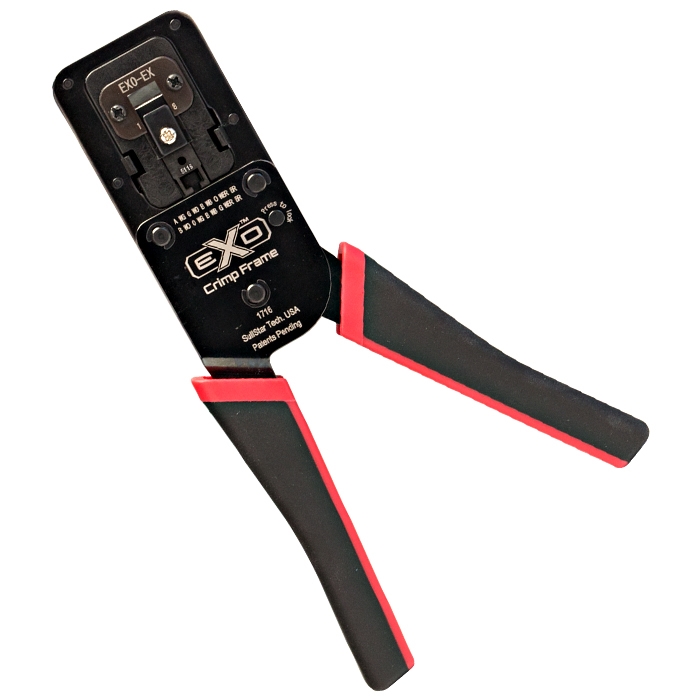

We are huge fans of manufacturers that are forward thinking with their product development; the EXO Crimp Frame is a great example of that. As technology advances, wire and connectors are going to continue to evolve. Platinum Tools EXO Crimp Frame is engineered to allow users to swap out dies as needed and avoid having to purchase an entirely new tool. The EXO Crimp Frame has dies available for EZ-RJ45 (not included) as well as the newer exEZ-RJ45 connectors (included).

This EXO Crimp Frame comes equipped with Platinum Tools EXO-EX die which is designed specifically for the exEZ-RJ45 connector. If you are not familiar with the ezEX-RJ45 connectors, they were engineered specifically for terminating larger diameter twisted-pair cables with conductor sizes up to .048in. The exEZ-RJ45 allows for the larger wire by cleverly staggering each conductor. As with all EZ connectors, the wiring can be quickly verified by the wires protruding prior to crimping. It is important to note the exEZ-RJ45 connectors can only be crimped with this EXO crimper and EXO-EX Die.

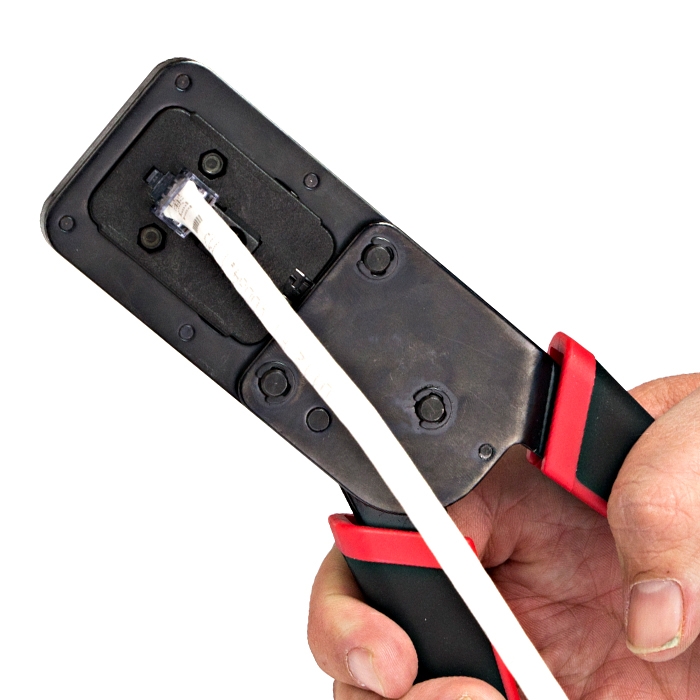

One really cool feature that stuck out to our team is the "click" you hear once the connector is in the crimper. That "click" means it's the right connector for the die and it's ready to crimp. Another great addition is the push button lock mechanism that makes the tool easy to put back into your tool bag. When it's in it's locked position, the Die is firmly secured in the frame and will not let loose and fall out.

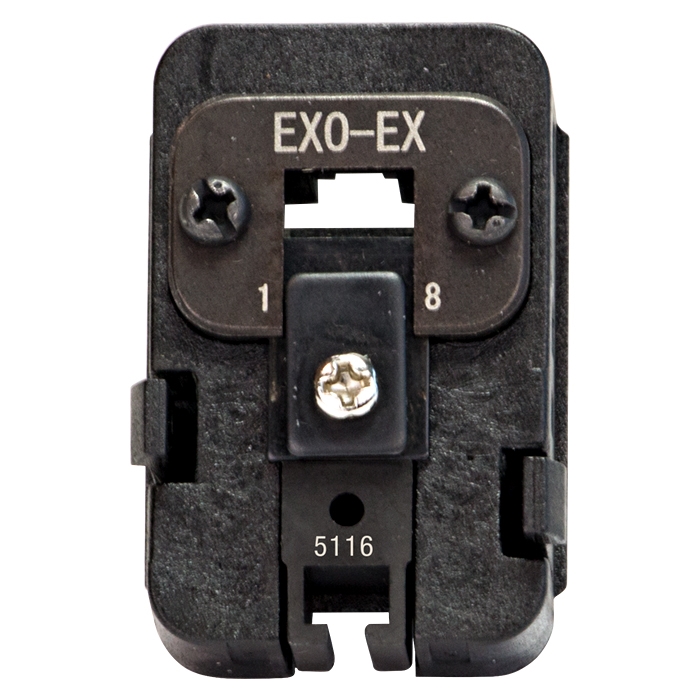

The EXO-EX Die (part number: PLA-100071C) included with this Crimper is not backward compatible with current EZ-RJ45 connectors. This Die must only be used with ezEX44 and ezEX48 connectors. See below for compatible connector part numbers.

Features:
  • Single cycle crimp and flush trim
  • EXO Die is easily interchangeable
  • Reversible EXO Die for ambidextrous operation

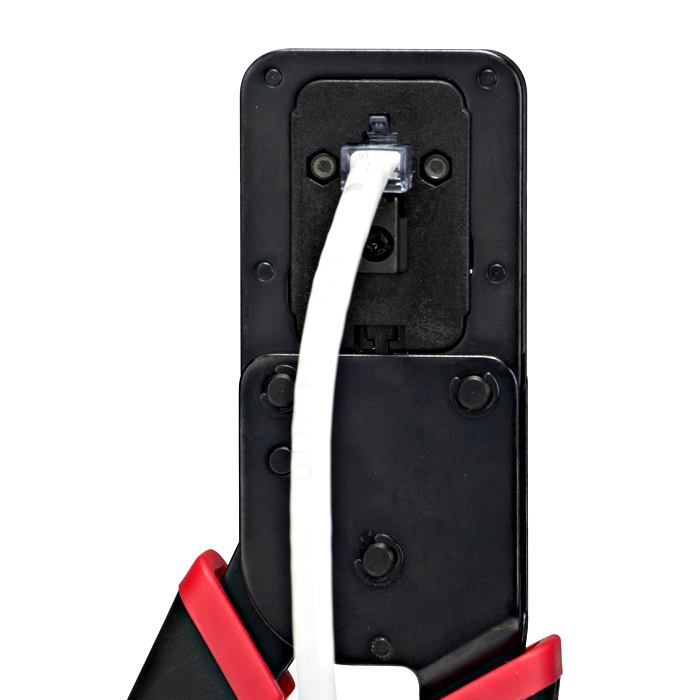

  • Connectors lock into tool for correct positioning during crimp

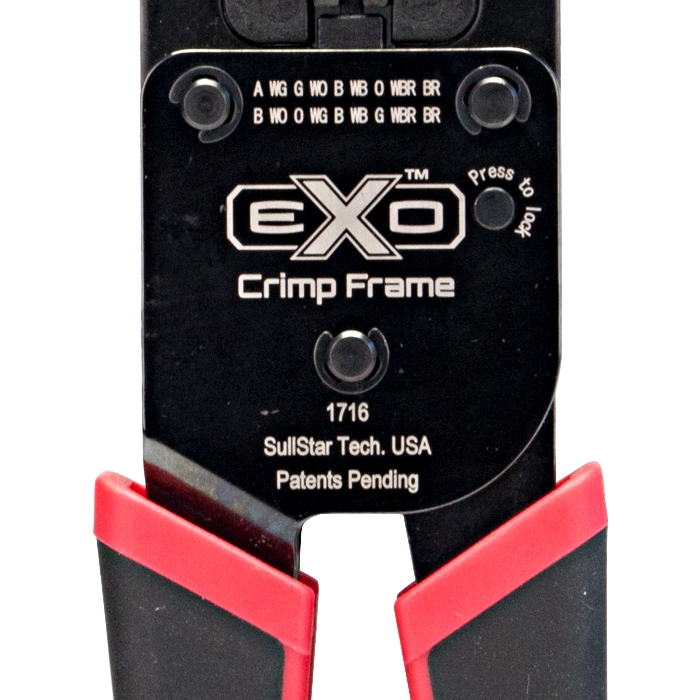

  • Push button lock for easy storage
  • Ergonomic comfort grip TPR handles
  • Includes EXO-EX Die for crimping ezEX44 and ezEX48 connectors
  • Terminates larger cables and conducts Cat6 and Cat6A
  • EXO Crimp Frame works with EZ-RJ45 Die for crimping EZ-RJ45 connectors

  • Specifications:
  • Insulation Diameter (Conductor) size range: 0.039” to 0.048” (depending on connector)
  • Max Outer Diameter: .290” (7.36mm)
  • Color: Black/Red
  • Length: 8-1/2” (216 mm)
  • Weight: Frame and Die 15.08 oz. (427.4 g)

  • EXO-EX Die Compatible Connectors:
  • PLA-100018C ezEX44 Connectors: .039” - .044” (1.0 - 1.12mm) - 10 piece
  • PLA-100028C ezEX44 Connectors: .039” - .044” (1.0 - 1.12mm) - 50 piece
  • PLA-202044J ezEX44 Connectors: .039” - .044” (1.0 - 1.12mm) - 100 piece
  • PLA-100019C ezEX48 Connectors: .043” - .048” (1.09 - 1.22mm) - 10 piece
  • PLA-100029C ezEX48 Connectors: .043” - .048” (1.09 - 1.22mm) - 50 piece
  • PLA-202048J ezEX48 Connectors: .043” - .048” (1.09 - 1.22mm) - 100 piece

  • Platinum Tools ezEX-RJ45 Termination System Spec Sheet

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 3 WRITE A REVIEW

      So far, this Product Review was helpful to 1 TTS Customers.

    5 of 5 As advertised great product December 17, 2019
    Reviewer: jim petrocelli from Norwood, NJ United States
    These crimpers do exactly what they are advertised . The larger 23awg shielded cable wouldn’t fit in any of my existing cat 6 ends and once you purchase the correct ends you need the correct tool to crimp them. This frame allows for both with an interchangeable die system and reversible for left or right hand comfort. Well thought out

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Good tool November 12, 2019
    Reviewer: Anonymous Person from Southfield, MI United States
    I'm the general foreman for a crew of 8 technicians at a very busy and large telecom company.  I started ordering these crimpers for my techs and have had great success with them.  everyone seems to like them and really like the fact that you can leave the pairs long and not have to worry about getting enough in the end to crimp.  Overall this has been a big success for us.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Easy operation April 30, 2019
    Reviewer: Bob from King George, VA United States
    Easily crimps and cuts the EX connectors.

    Was this review helpful to you?
