Sargent D-Subminiature Pins and Sockets Crimp Tool

Sargent D-Subminiature Pins and Sockets Crimp Tool




TTS PRICE: $127.99


STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: ROS-3127-CT
QUANTITY:

PRODUCT DESCRIPTION

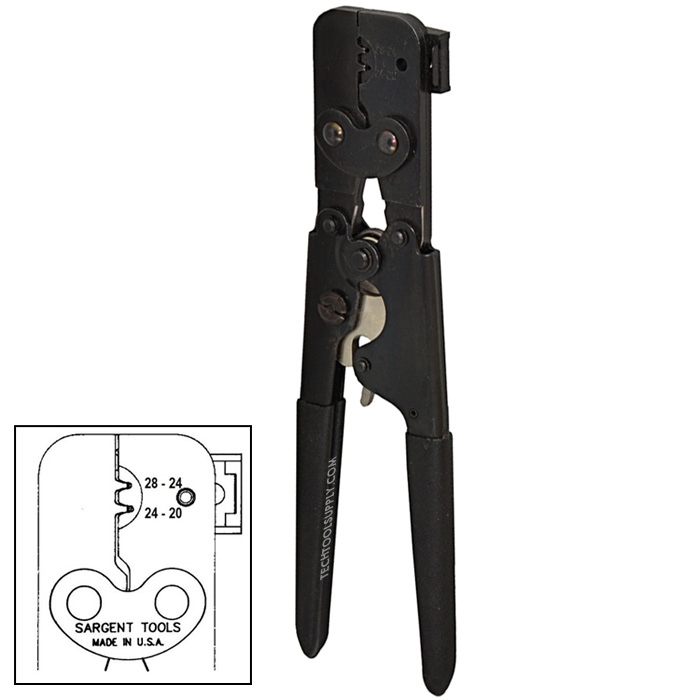

Sargent's 3127 CT crimps D-subminiature pins and sockets. The conductor and insulation crimps conform to O.E.M. specifications and are produced on one tool closure.

Features:
  • Conductor crimps are "b" type, insulated crimps are "Oval" which are produced in two cavities: 28-24 AWG and 24-20 AWG
  • An easy load locator and wire stop are provided to orient the pins or sockets during crimping

  • Specifications:
  • Application: D-subminiature pins & sockets
  • Connector/Terminal Type: D-subminiature pins & sockets Ref: AMP 90312
  • Cable/Crimp Type: Conductor crimp -"B" type, Insulation crimp -"Oval" type, 2 cavities
  • Crimp/Hex/Wire Sizes: 28-24 AWG
  • Length: 9 inches / 22.86 cm
  • Weight: 15 ounces / .42 kgs
