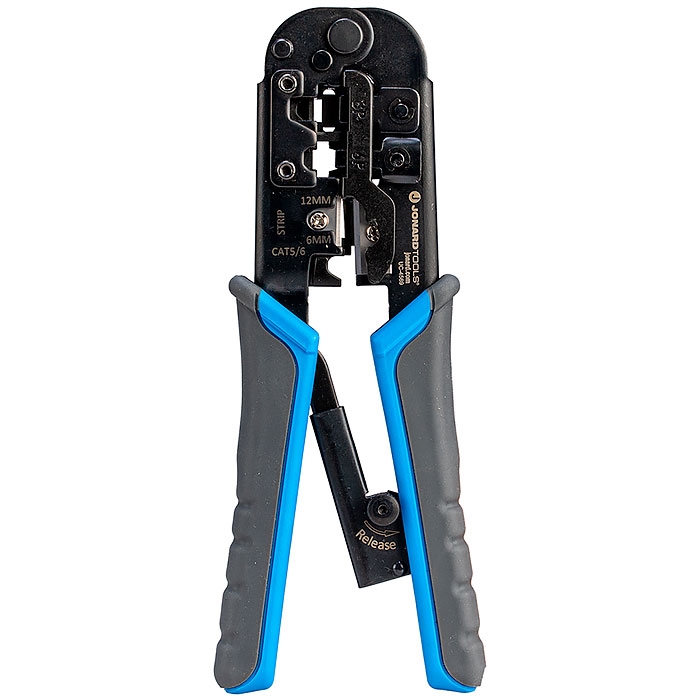

Pass-through plugs made RJ45 termination beginner-proof; the Jonard UC-4569 makes it production-fast.
This 6-in-1 crimper handles RJ11, RJ12, and RJ45 pass-through connectors across CAT3, CAT5/5e, CAT6, and CAT6A cable, crimping 4-, 6-, and 8-position modular plugs with a vertical crimp action that seats pins perfectly every cycle — no measuring the untwist, just push the wires through, verify the order, and squeeze.

The flush trim is the pass-through payoff, and this tool's is clean.
Wires trim flush to the end face of pass-through RJ11/12 and CAT6A RJ45 connectors — no proud copper stubs to short in a jack — and the heavy-duty cutting blades are rated for up to 400 cuts with a replacement set (UC-4569RB) available to keep the tool in service indefinitely. A detail most crimpers at this price skip: unique crimping slots in the middle of the tool crimp the tails of shielded RJ45 CAT6A connectors, so shielded terminations don't require a second tool.

The ratcheted, ultra-stable platform completes every crimp with low hand force — no half-crimped plugs, no death grip.
It also cuts and strips round STP/UTP and flat phone cable (22-28 AWG, solid or stranded), covering prep and termination in one steel-built tool with dual-material cushion grips. Pair it with the pass-through plugs we stock and a spool of Cat6, and a whole building's drops go faster.

• Crimps RJ11/12 and RJ45 pass-through connectors: 4, 6, and 8 position
• For CAT3, CAT5/5e, CAT6, and CAT6A cables; cuts and strips round STP/UTP and flat phone cable
• Cleanly trims wires flush to the plug end face
• Dedicated slots crimp shielded RJ45 CAT6A connector tails
• Ratcheted ultra-stable platform: consistent terminations, low hand force
• For 22-28 AWG flat/round, solid/stranded conductors
• Heavy-duty blades rated to 400 cuts; UC-4569RB replacement blade set available
• Durable steel construction; dual-material cushion grip handles

• Model: Jonard UC-4569
• Connector Types: RJ11, RJ12, RJ45 pass-through; shielded tail slots
• Cable Types: CAT3 / CAT5 / CAT5e / CAT6 / CAT6A; round or flat, 22-28 AWG
• Dimensions: 7.5" x 2.5" x 7/8"
• Weight: 0.72 lb (329 g)
• UPC: 811490018105
