CIFA# 128376

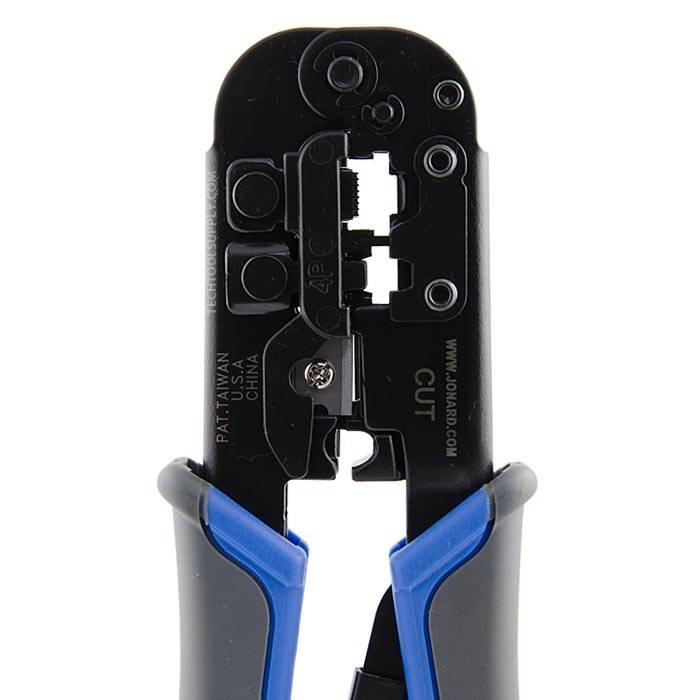

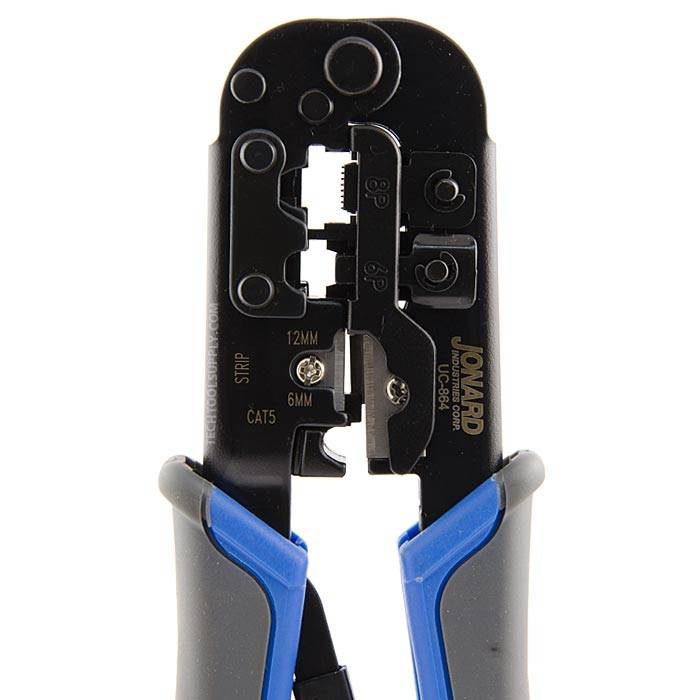

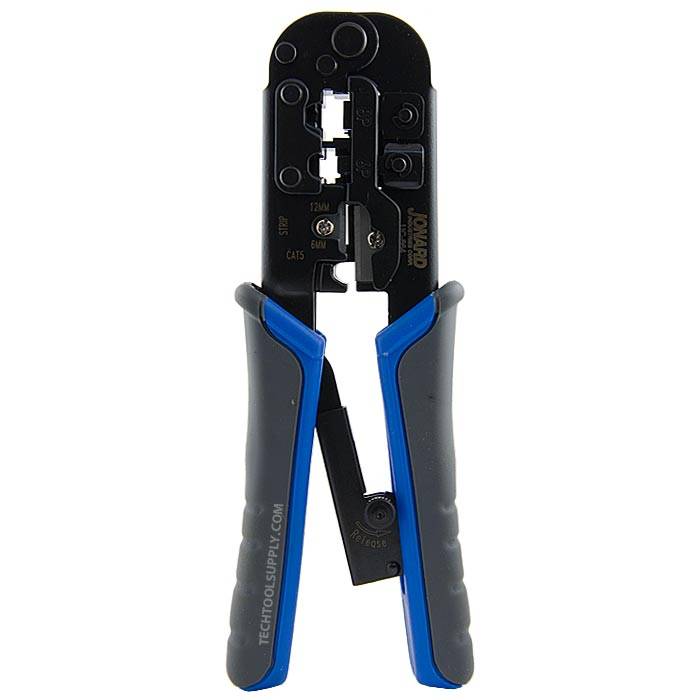

This is a modular crimping/stripping connector tool from Jonard Industries for voice and data applications. Designed to cut, strip and crimp paired conductor cables (round STP/UTP and flat satin phone cables).
Features:
Solid steel construction with a black oxide finish
Crimping dies made from high carbon steel
Designed for WE (Western Electric) and SS (Stewart Stamping) style modular connectors
Ergonomic dual component handles
Specifications:
Cable parameters: 28-22 AWG (.08 -.34mm) flat or round, solid or stranded, telephone or data
Crimps: 4, 6 & 8 position modular connectors (RJ22, RJ11, RJ12 & RJ45)

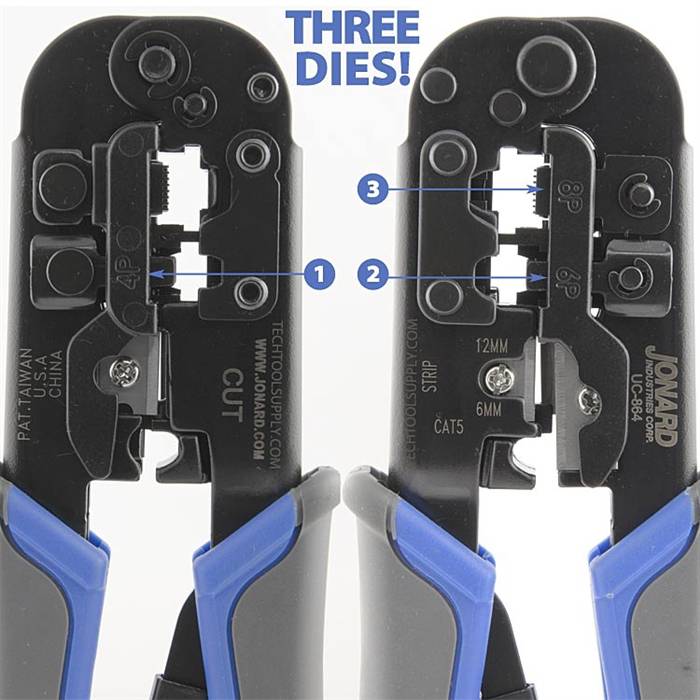

Constructed with THREE Crimping Dies:
8 position (4 pair/8 conductor) RJ45
6 position (2 pair/4 conductor) RJ11 or
6 position (3 pair/6 conductor) RJ12
4 position (2 pair/4 conductor) RJ22 or
4 position (1 pair/2 conductor) RJ22 headset
**Not for use on AMP connectors.
|
|
|
