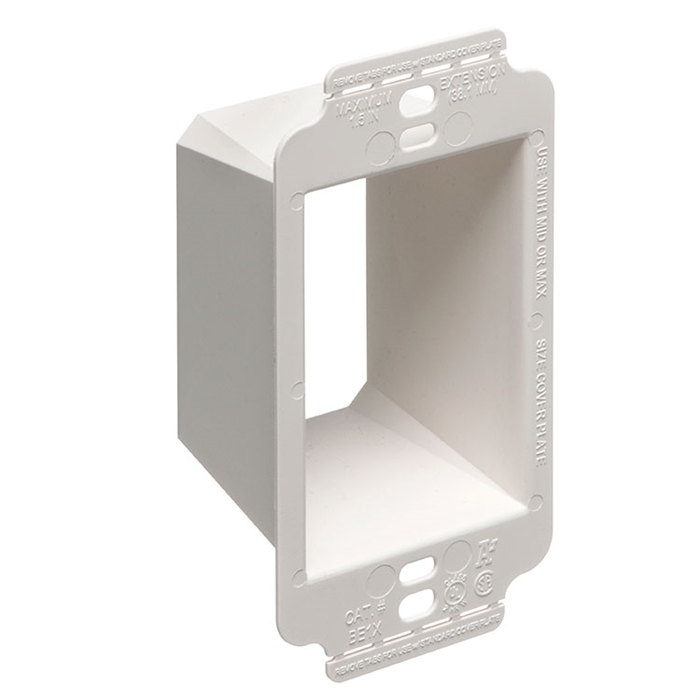

Arlington BE1X Box Extender with Larger Flange - Single-Gang, Extends up to 1-1/2"

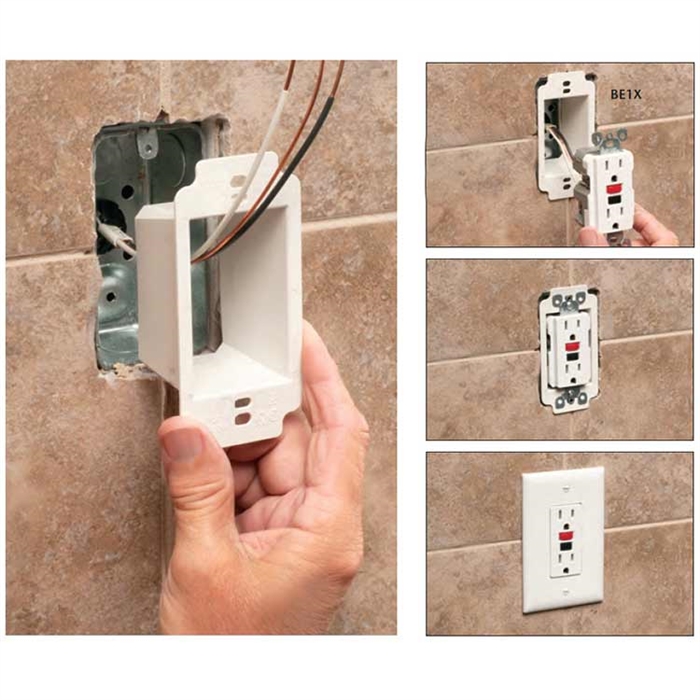

Arlington's non-conductive box extenders extend set back metal or non-metallic electrical boxes up to 1-1/2 inches the easy way! They work for any single gang device and most steel and non-metallic outlet boxes - providing a level, fully supported wiring device that's flush with the wall surface. In steel boxes they prevent arcing and shorting by creating a barrier between the box and device screws.
The BE1X has a slightly larger flange that covers mis-cut wall material and accommodates midi or maxi cover plates.
Features:
Single Gang
2-Hour Fire Rating
Larger flange gives better device support in oversized or miscut wall openings
Functions with all standard devices, switches, and GFCIs
Helps the contractor comply with NEC Article 314.20 for set-back boxes
Works in handy boxes and 4" square boxes with plaster rings
Made from 105°C continuous use, 94V-0 rated flame retardant plastic
Includes 1 Piece
Specifications:
Type: Box Extender with Larger Flange
Trade Size: 1-Gang
Extension: Up to 1-1/2"
Fire Rating: 2-Hour
Height: 4.628"
Width: 2.325"
Color: White
Material: Plastic (94V-0, 105°C)
Weight: 0.038 lb
Model: BE1X
Related Products:
| Part # | Arlington # | Description |
|---|
| ARL-BE2X | BE2X | 2-gang box extender with larger flange |
