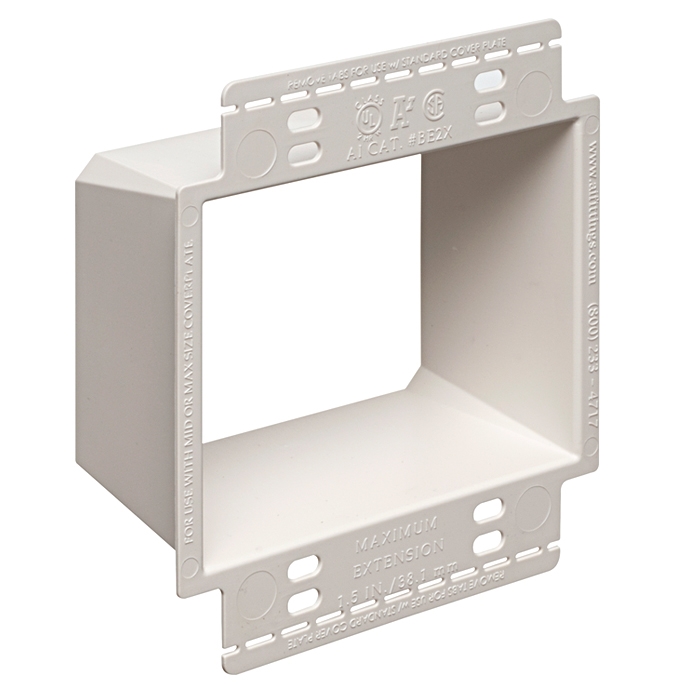

Arlington BE2X 2-Gang Extra Large Box Extender

Arlington BE2X 2-Gang Extra Large Box Extender


Alternative Views:


TTS PRICE: $4.99


STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: ARL-BE2X
QUANTITY:

PRODUCT DESCRIPTION

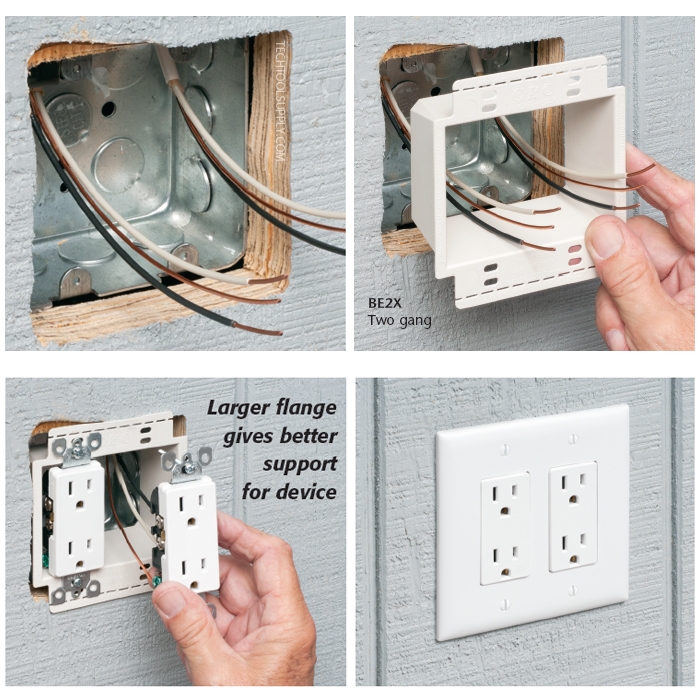

The Arlington BE2X fixes two problems in one part: a set-back box and a butchered wall opening. Like Arlington's standard extenders, it levels and supports devices in 2-gang boxes set back up to 1-1/2" from the wall surface, bringing the installation into compliance with NEC 314.20. The difference is the extra-large flange - it bridges mis-cut or oversized openings and gives the device solid support where a standard extender would float in the hole.

The flange accommodates midi and max cover plates as-is, and it is trimmable for use with standard plates - so one extender covers whichever plate the job calls for. Molded from 105°C continuous-use, 94V-0 flame-retardant plastic with a 2-hour fire rating.

Key Features:
  • Extra-large flange supports devices in mis-cut or oversized wall openings
  • Extends set-back 2-gang boxes up to 1-1/2"
  • Complies with NEC article 314.20 for set-back boxes
  • Fits midi and max plates; trimmable for standard plates
  • 2-hour fire rating; 94V-0 flame-retardant 105°C plastic
Specifications:
  • Gangs: 2
  • Extension Range: Up to 1-1/2"
  • Fire Rating: 2-hour
  • Material: 94V-0 flame-retardant plastic, 105°C continuous use
  • Quantity: 1
