Arlington Power and Low Voltage Box for Existing Construction

Arlington Power and Low Voltage Box for Existing Construction


TTS PRICE: $7.99

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: ARL-LVDR2
QUANTITY:

PRODUCT DESCRIPTION

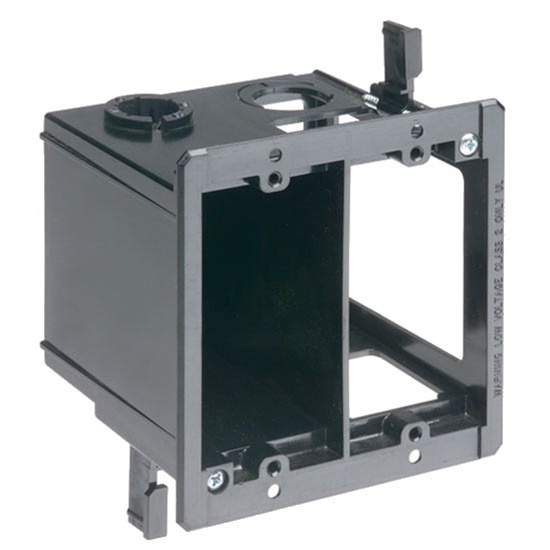

Arlington LVDR2 Power and Low Voltage Box for Existing Construction - 2-Gang, Non-Metallic

Arlington's LVDR2 is a non-metallic, combination power and low voltage box for existing construction. It's perfect for power, phone/cable, and fiber optic installations.

Features:
  • Neatly installs power and phone/cable outlets together, in one location
  • Saves time and money
  • Adjusts to fit 1/4" to 1-1/2" thick wallboard, paneling, or drywall
  • For raceway, the low voltage side provides a combo 1/2" and 3/4" KO
  • Secure mounting - as the mounting screws are tightened, the wings flip up, locking it in place
  • Protects cable from damage
  • Installed NM connector on the power side
  • Two hour fire rating
  • UL listed

    • Includes:
  • 1 x Power and low voltage box
  • 1 x NM94 cable connector (installed on the power side)

    • Specifications:
  • Type: Power and Low Voltage Box for Existing Construction
  • Trade Size: 2-Gang
  • Quantity: 1
  • Knockout Size: Combination 1/2" and 3/4" (low voltage side)
  • Cubic Inches: 17.0 (power side)
  • Fire Rating: 2 Hour
  • Height: 4.250"
  • Width: 4.185"
  • Color: Black
  • Material: Plastic (non-metallic)
  • Weight: 0.250 lbs/each
  • Model: LVDR2

    • LVD2 / LVDR2 Power & Low Voltage Box Specification Sheet Arlington Low Voltage Cut-Out Guide
