Arlington MB5771 Non-Metallic Mounting Block - Dutch Lap Siding, 5" x 7", White Paintable

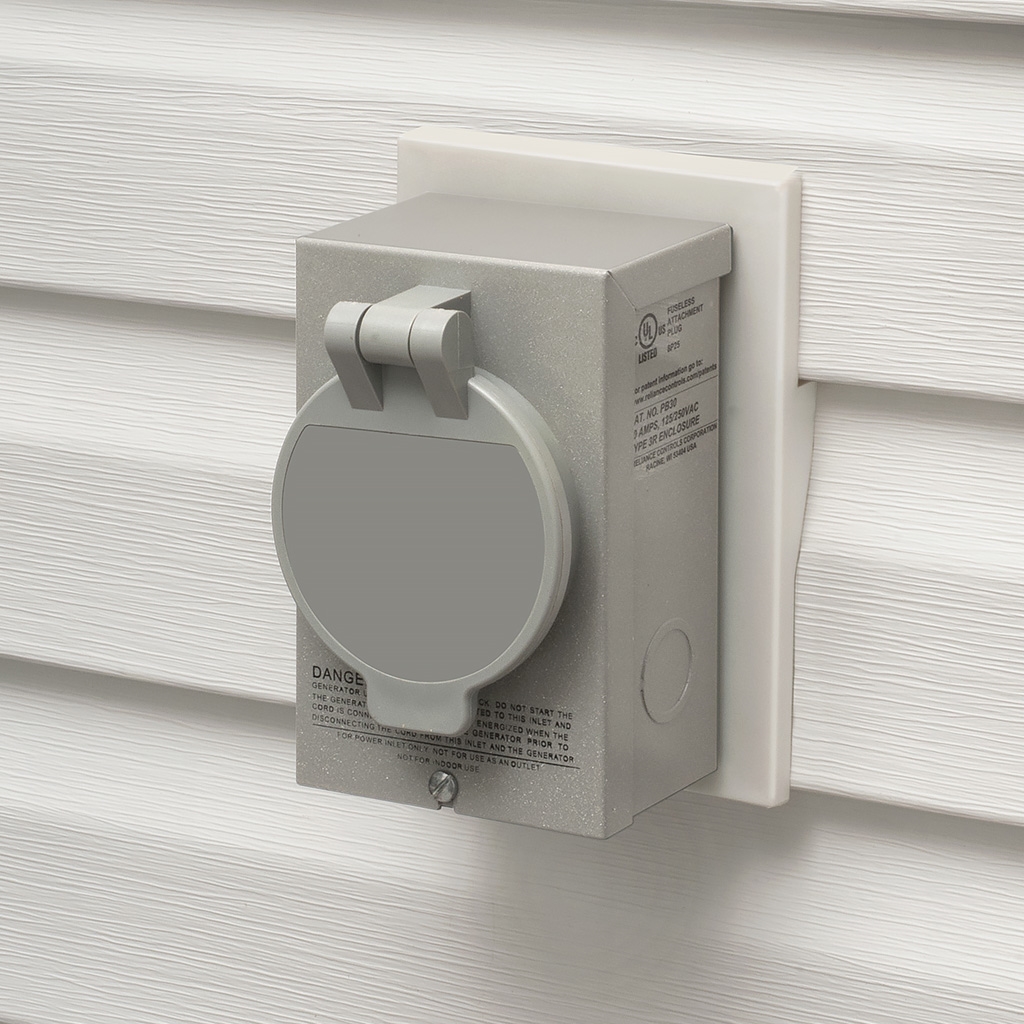

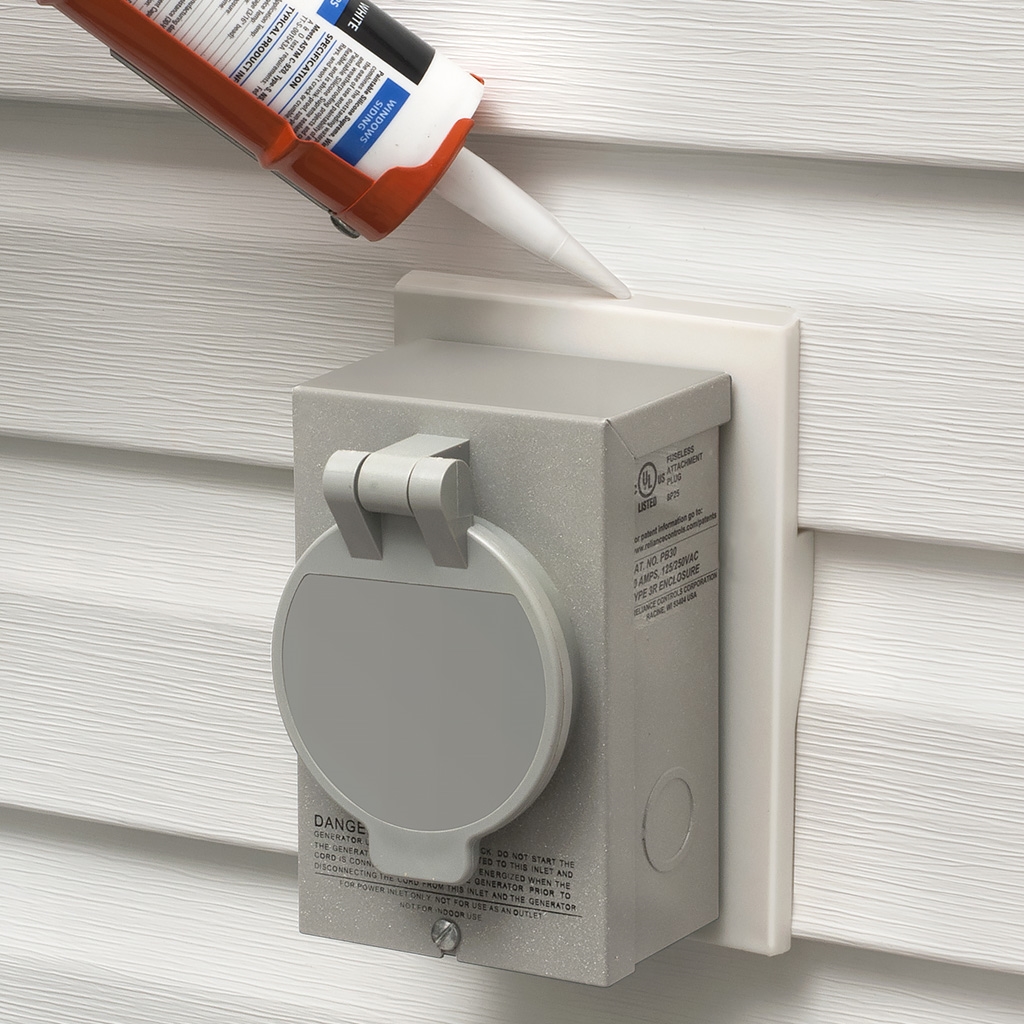

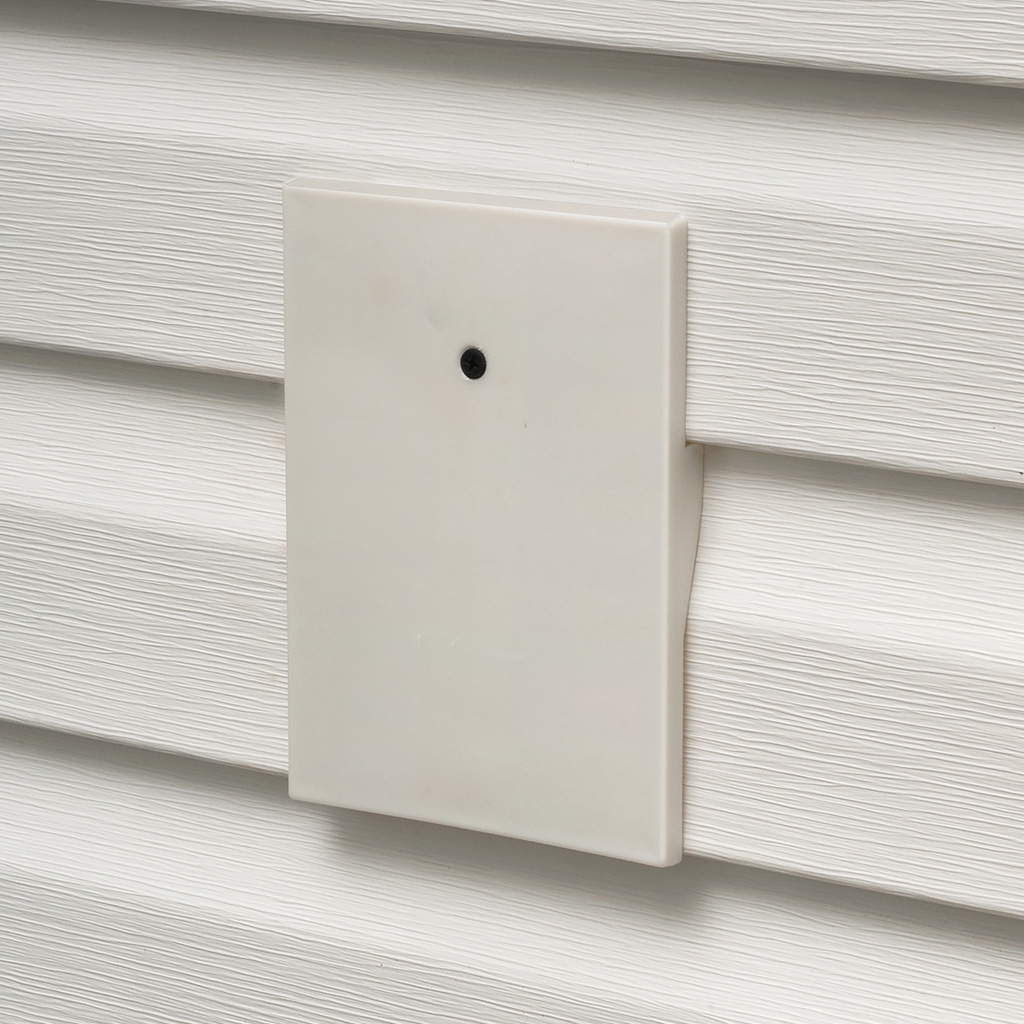

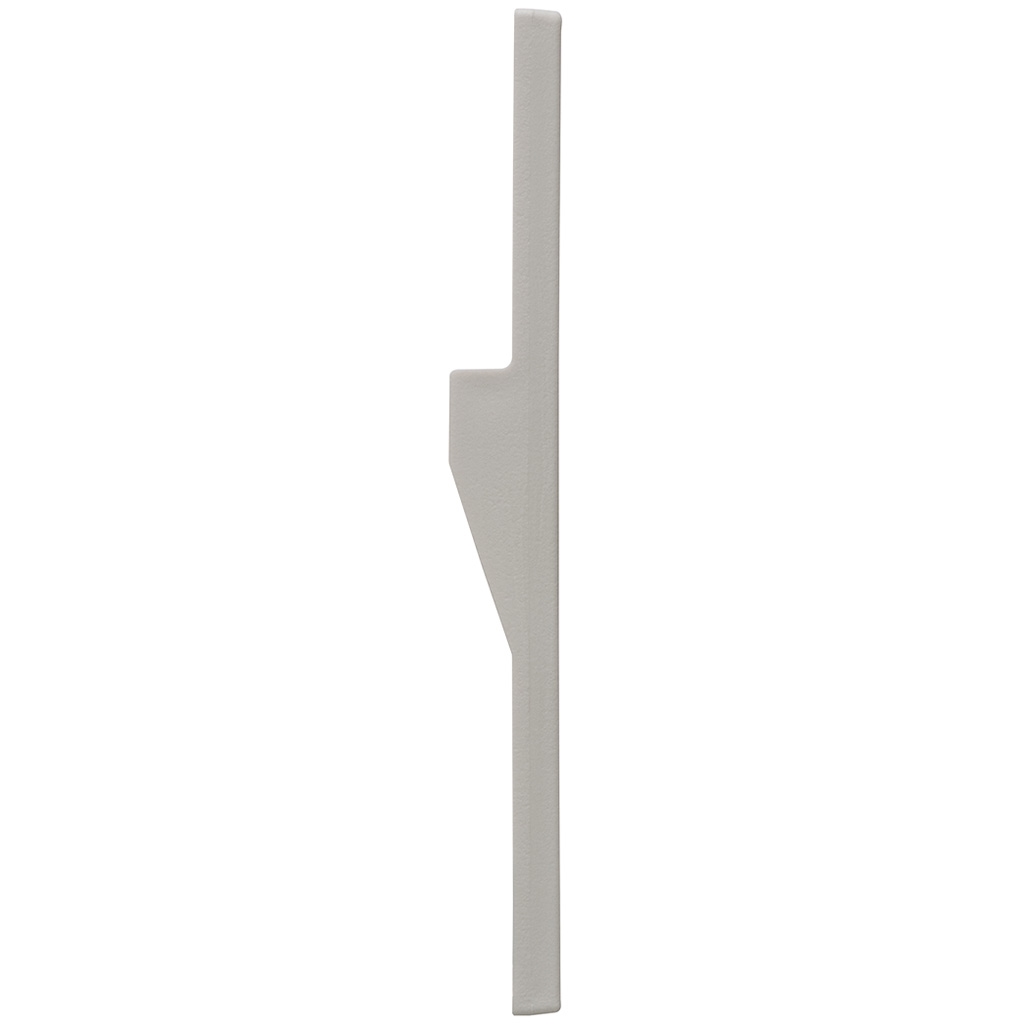

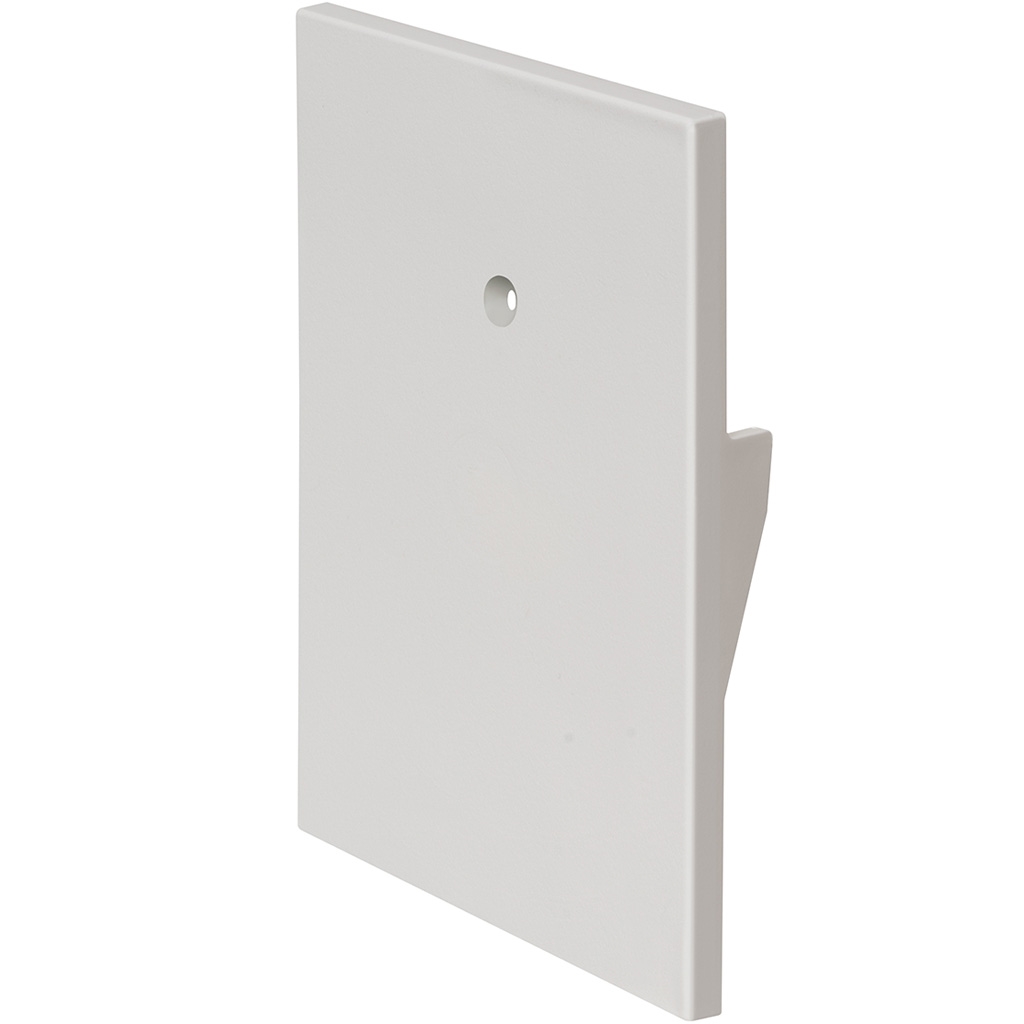

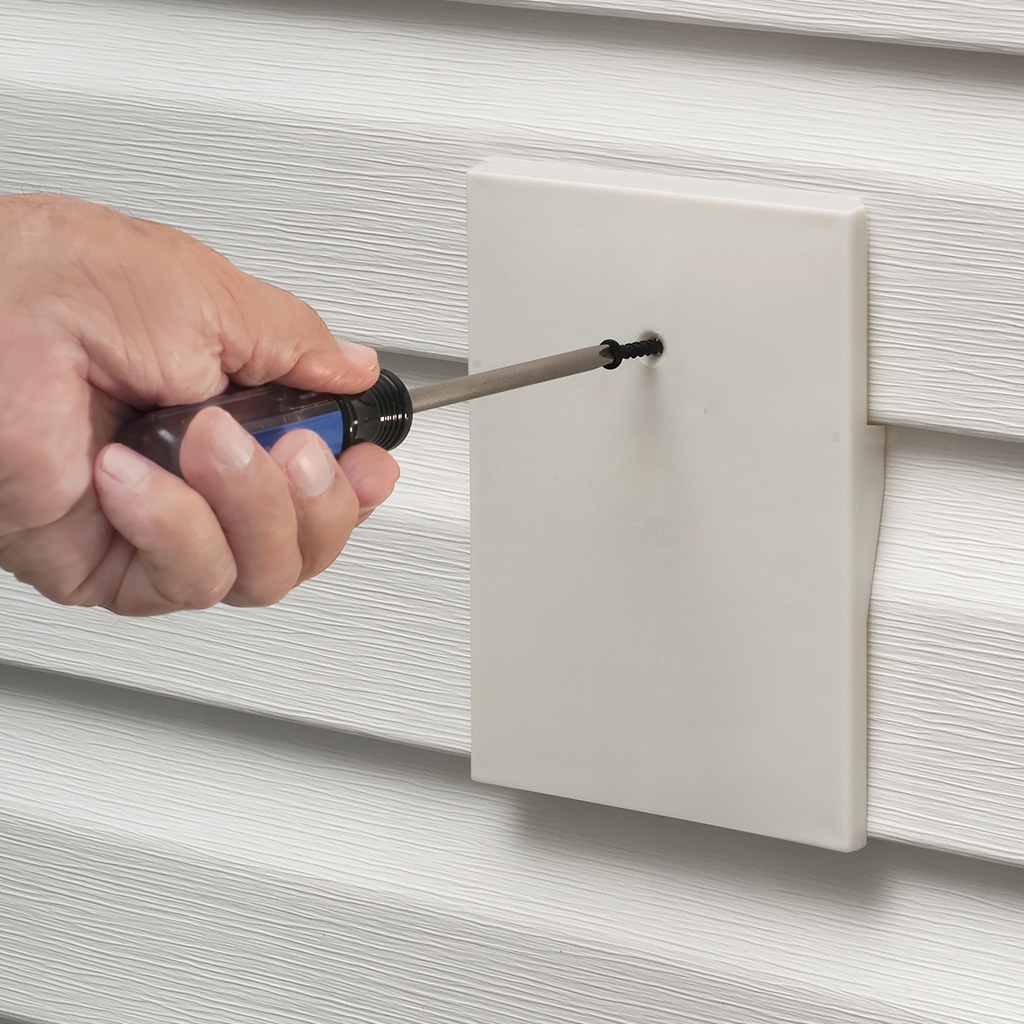

Arlington's MB5771 gives you a smooth, flat mounting surface on Dutch lap siding for A/C disconnects, cable and fiber demarcs, ground blocks, cameras, and other exterior equipment. The one-piece, non-metallic base is contoured for the Dutch lap profile and installs after the siding is up - position it with a flat-head screw, mount your device through the block into the sheathing, and caulk the top and sides.

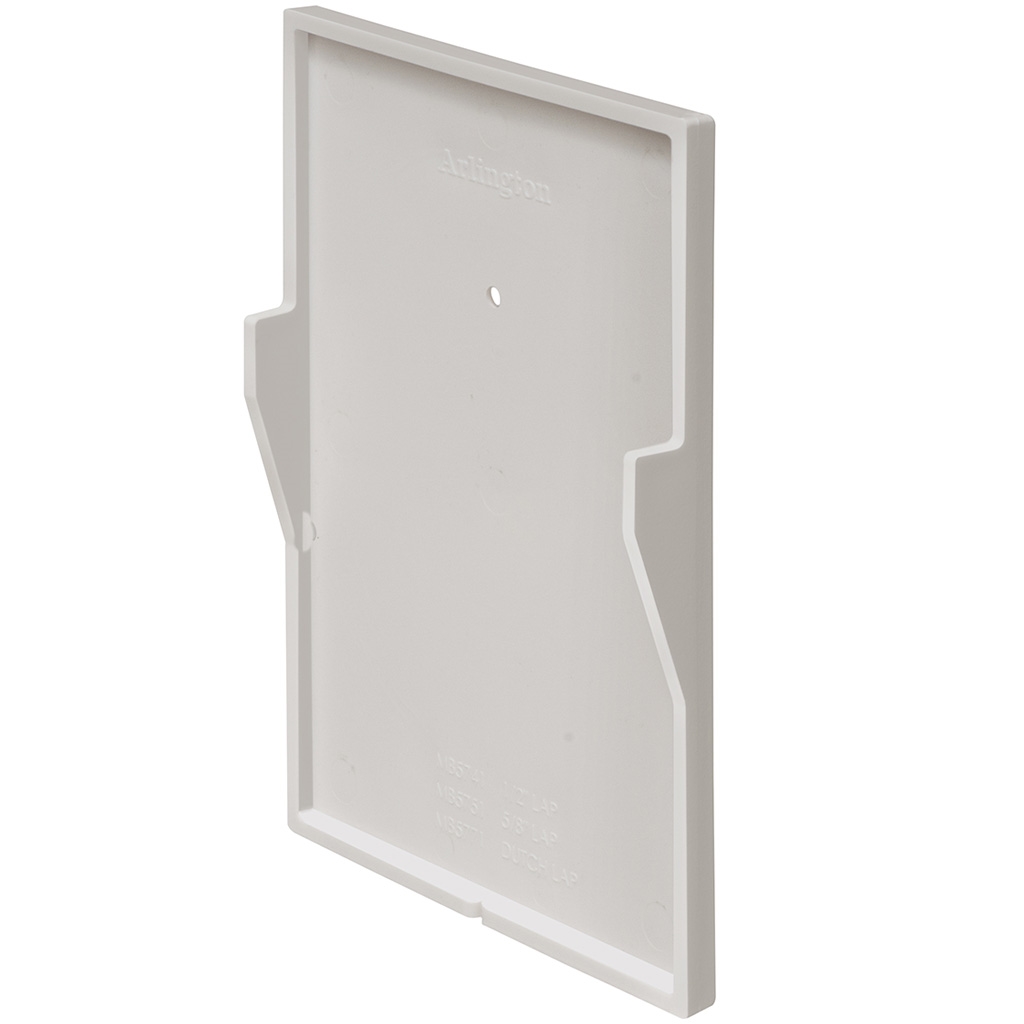

A drain hole at the bottom edge keeps water and dirt from collecting behind the block, and the textured UV-rated surface takes paint so it blends into the home's exterior. Mounting blocks like the MB5771 also help installations meet NEC 2020 code compliance for A/C disconnects.

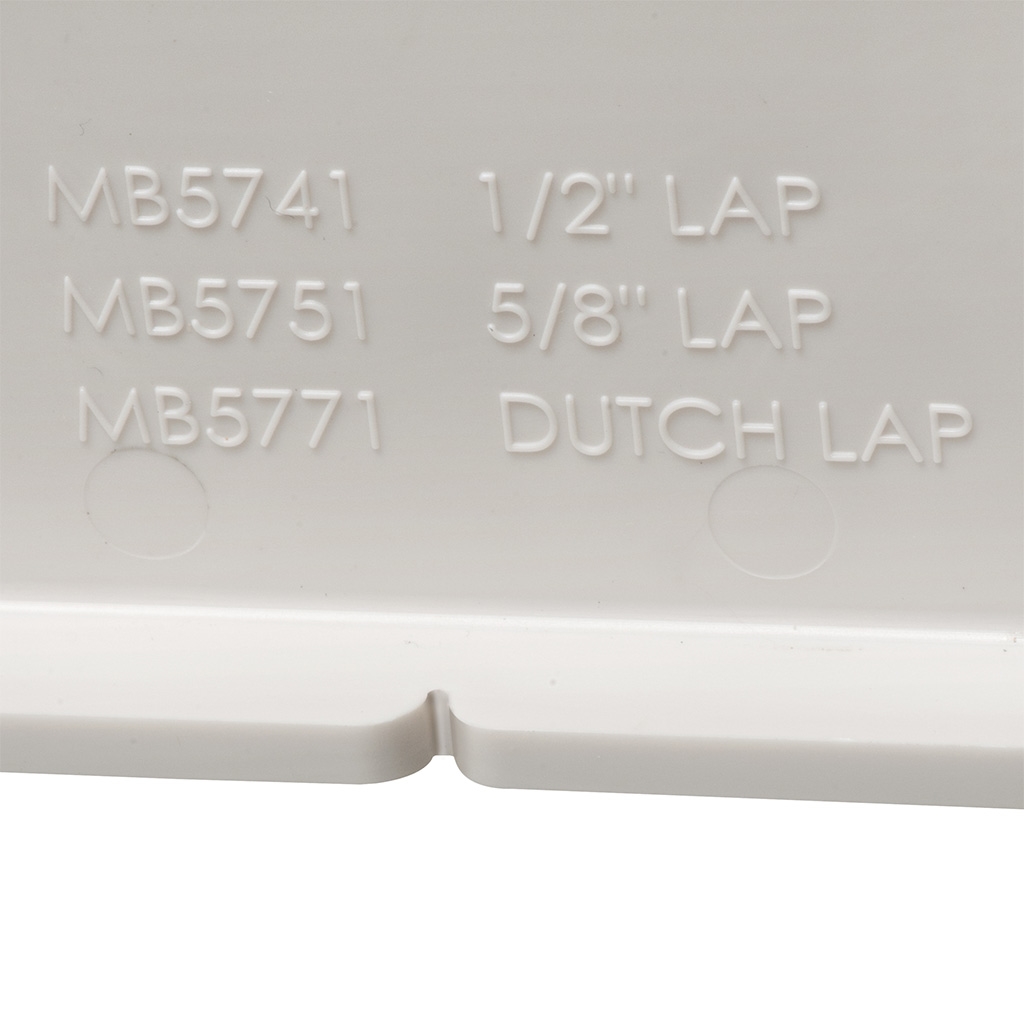

Different siding profile? See the MB5741 for 1/2" lap siding or the MB5751 for 5/8" lap siding.
Features:
One-piece, non-metallic base installs easily after the siding is up
Helps meet NEC 2020 code compliance for A/C disconnects
Drain hole prevents water and dirt from collecting on the lower edge
Textured, paintable surface blends with the home's exterior
UV-rated, extra-duty plastic for long outdoor service life

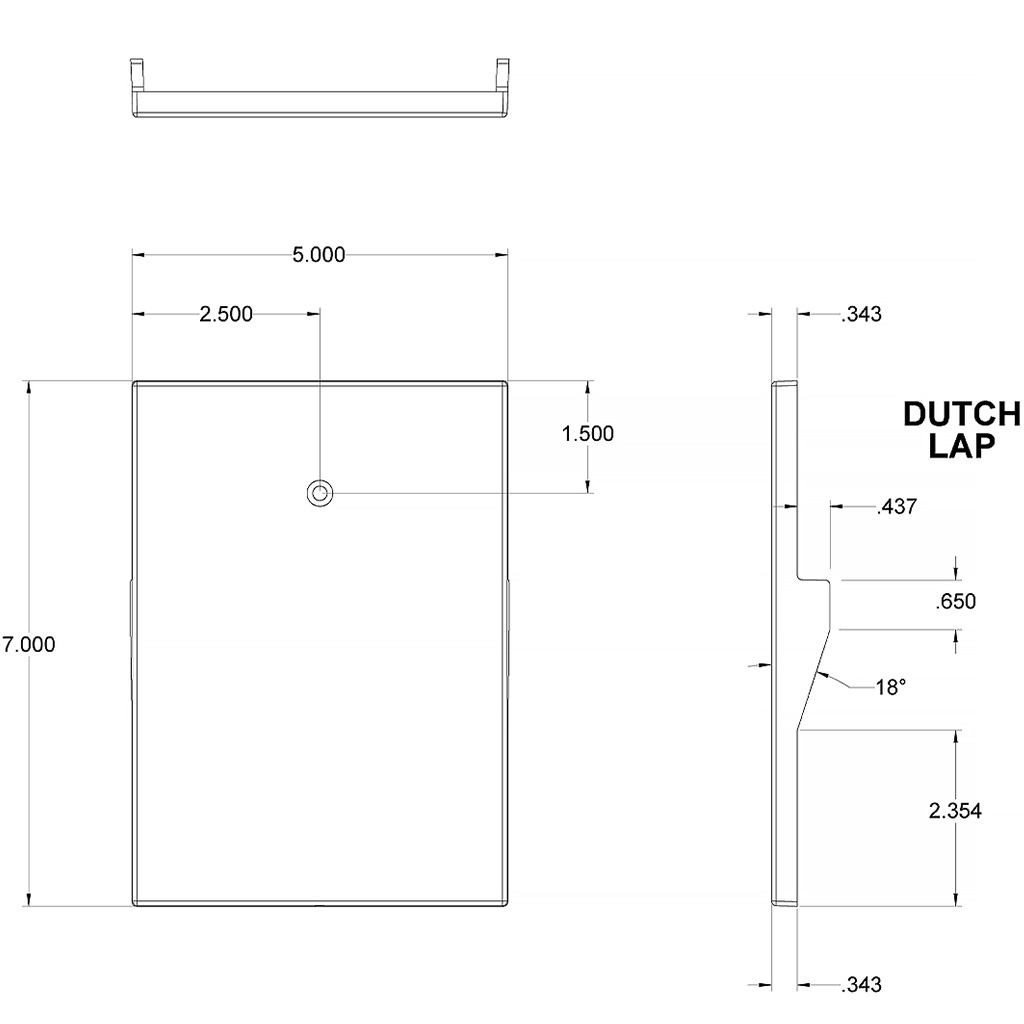

Specifications:
Siding Type: Dutch Lap Siding
Height: 7"
Width: 5"
Color: White (paintable)
Material: UV-rated non-metallic plastic
Weight: 0.193 lbs/each
Model: MB5771
Related Products:
| Part # | Arlington # | Description |
|---|
| ARL-MB5741 | MB5741 | Non-metallic mounting block for 1/2" lap siding, white |
| ARL-MB5751 | MB5751 | Non-metallic mounting block for 5/8" lap siding, white |
