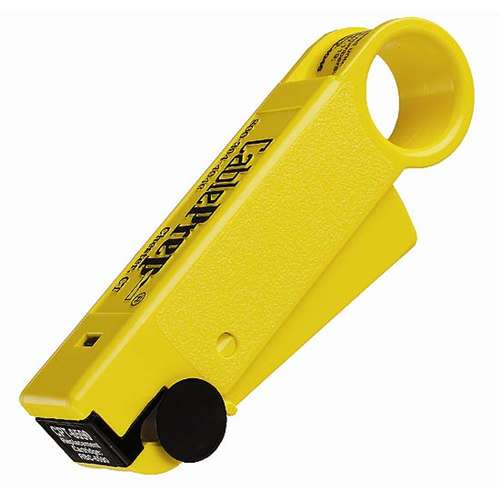

Cable Prep CPT-6590S RG-6 & RG-59 Coax Cable Stripper with Stop - Yellow / Black, Extra Cartridge
Cable Prep's CPT-6590S 6 & 59 Cable Stripper with stop is factory calibrated to remove just the right amount of cable jacket and cut back the braid and dielectric to the proper dimensions on braided and braid replacement drop cables. The stripper prepares cables quickly and easily because the jacket, braid and dielectric are cut with one simple motion. The tool features hardened steel blades that ensure optimum performance and long life. Each blade cartridge can prepare 2,500 to 5,000 cables depending on braid coverage. It also features a patented cleanout feature that automatically removes excess jacket, braid and dielectric from the tool after stripping. The CPT-6590S is the perfect addition to any tool kit.
Features:
3 operations in one step: strips the jacket and cuts back the braid and dielectric
Hardened tool-steel blades
Factory calibrated strip-back dimensions
Comfortable and easy to operate with either hand
Automatic cleanout feature (patented) clears excess jacket, braid and dielectric from the tool
Color-coded tool body and cartridge for quick identification; cartridges snap into place
Lightweight and rugged for consistent performance in harsh conditions
Stop version of the 6 & 59 tool (Cable Prep: w/stop)
Comes with an extra replacement cartridge (one installed, one spare)
Specifications:
Type: Coax Drop Cable Stripping Tool
Cable Type: RG-6 & RG-59 (6 & 59)
Braid Exposure: 0.250" (6.4 mm)
Center Conductor Exposure: 0.250" (6.4 mm) minimum
Tool / Cartridge Color: Yellow / Black
Blade Cartridges Supplied: One installed / One spare
Cartridge Life: 2,500 - 5,000 cables, depending on braid coverage
Weight: 2.9 oz (82 g)
Customer Item Numbers: CIFA 140288
Model: CPT-6590S
Available Models (CPT Cable Strippers):
| Part # | Cable Prep # | Cable | Braid Exposure | Tool / Cartridge Color | Cartridges Supplied | Weight | Replacement Cartridge |
|---|
| CPR-CPT-6590 | CPT-6590 | 6 & 59 | 0.250" / 6.4 mm | Yellow / Black | One installed / One spare | 2.9 oz (82 g) | RBC-6590 |
| CPR-CPT-6590-SINGLE | CPT-6590-SINGLE | 6 & 59 | 0.250" / 6.4 mm | Yellow / Black | One installed | 2.2 oz (64 g) | RBC-6590 |
| CPR-CPT-6590S | CPT-6590S (this item) | 6 & 59 | 0.250" / 6.4 mm | Yellow / Black | One installed / One spare | 2.9 oz (82 g) | RBC-6590 |
| CPR-CPT-6590PL | CPT-6590PL | 6 & 59 Plenum | 0.250" / 6.4 mm | Yellow / Blue | One installed | 2.9 oz (82 g) | RBC-6590PL |
| CPR-CPT-6590TS | CPT-6590TS | TriShield 6 | 0.250" / 6.4 mm | Yellow / White | One installed / One spare | 2.9 oz (82 g) | RBC-6590TS |
| CPR-CPT-59HEC2 | CPT-59HEC2 | CommScope 59 Quad Series Head End | 0.250" / 6.4 mm | Yellow / White | One installed | 2.2 oz (64 g) | RBC-59HEC2 |
| CPR-CPT-1100 | CPT-1100 | 7 & 11 | 0.250" / 6.4 mm | Blue / Grey | One installed / One spare | 2.9 oz (82 g) | RBC-1100 |
| CPR-CPT-1100-SINGLE | CPT-1100-SINGLE | 7 & 11 | 0.250" / 6.4 mm | Blue / Grey | One installed | 2.2 oz (64 g) | RBC-1100 |
| CPR-CPT-1100PL | CPT-1100PL | 7 & 11 Plenum | 0.250" / 6.4 mm | Blue / Blue | One installed | 2.9 oz (82 g) | RBC-1100PL |
| CPR-CPT-7538 | CPT-7538 | Belden | 0.250" / 6.4 mm | Green / Yellow | One installed | 2.2 oz (64 g) | RBC-7538 |
| CPR-CPT-7691 | CPT-7691 | Commscope and Times Fiber (SCTE Approved) | 0.250" / 6.4 mm | Green / Smoke Grey | One installed | 2.2 oz (64 g) | RBC-7691 |
Replacement Parts:
| Part # | Cable Prep # | Description |
|---|
| CPR-RBC-6590_1PC | RBC-6590 | Replacement blade cartridge, black - one cartridge |
| CPR-RBC-6590_10PK | RBC-6590 | Replacement blade cartridge, black - 10 cartridges |
CPT Instruction Sheet.
CPT Cable Stripping Tools Brochure
