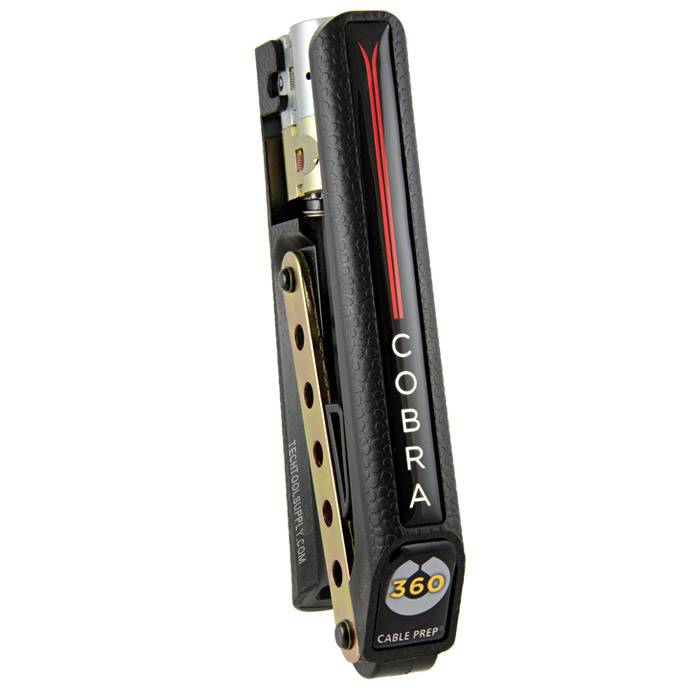

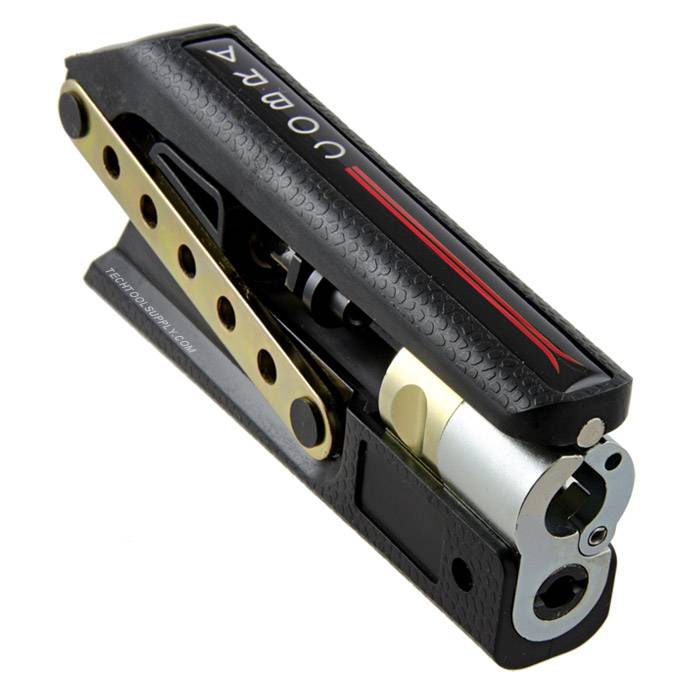

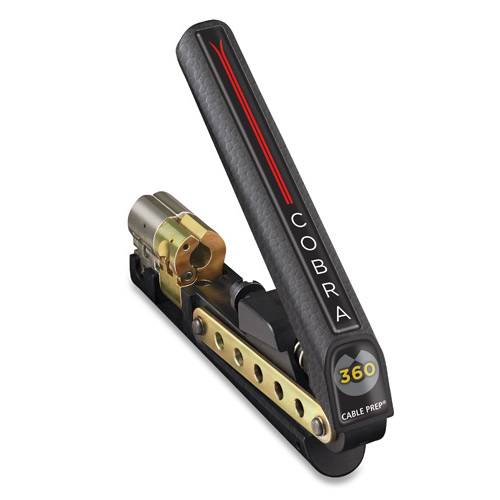

Cable Prep COBRA 360 Adjustable Compression Tool - RG-6, 59, 7, 11 & Mini F-Connectors, Black
Cable Prep's Cobra 360 compression tool is designed for installing F-type compression connectors on the end of RG-6, RG-59, RG-7, RG-11 and mini-coax drop cables. Low in cost and highly productive, the Cobra 360 features a performance-driven design that delivers easy, powerful leverage and ensures consistent, precise connections every time.
Made in the USA: every single part of the Cobra 360 is designed and manufactured in the USA using environmentally friendly materials to the fullest extent.
Features:
Ergonomic, pocket-sized body of high-strength, lightweight materials - operates easily with either hand
Adjustable - attaches all F-type compression connectors in Cable Prep's Cobra compatibility list for RG-6, -59, -7, -11 and mini-coax
Universal plunger tip supports all connector types within a class with no need to change the tip; the throw distance is set at the factory and a hex lock nut keeps the tool calibrated over long use
Slotted plunger tip accommodates RCA-type connectors for easy connector insertion
Patented dogs provide 360-Degree connector support for uniform compression without connector distortion from misalignment
Dual connector support system: the RG-6 and -59 support swings out of the way for RG-7 and -11 connections
Self-releasing dogs let you insert and remove cables with one hand without damaging them
Easy-release handle - a magnetic tip holds it closed, compact enough for a pocket or an eyeglasses case
Specifications:
Type: Adjustable F-Connector Compression Tool
Cable: RG-6, RG-59, RG-7, RG-11 and mini-coax drop cable
Compatible Connectors, RG-6 & 59: Belden Snap & Seal (SNS), Corning Gilbert CX3, EFC, UltraEase, CFC and UltraRange, Digicon DS and RG, F-conn FS, Holland Electronics Superlok SLC, Ideal Uniseal, Paladin Seal Tight, PCT TRS XL, TRS, ERS, FRS and QP, PPC EXXL & EXXLWS, CMP and EX, Steren Perma Seal II, Stirling SPL, Times Fiber QCII
Compatible Connectors, RG-7 & 11: Belden Snap & Seal (SNS), Corning Cablecon CX3, Corning Gilbert UltraEase, Holland Electronics Superlok SLC, Phoenix (PCT) DRS and TRS, Pico Macom Perma Seal II, PPC EX, Steren Perma Seal II, Stirling SPP and SPL, Times Fiber QCII (RG-11)
Compatible Connectors, 320QR: Belden Snap & Seal (SNS), Phoenix (PCT) DRS, PPC EX
Color: Black
Length: 5.5"
Weight: 0.65 lb (0.28 kg)
Customer Item Numbers: Suddenlink PeopleSoft 19468
Model: COBRA360
Available Models (COBRA 360):
| Part # | Cable Prep # | Type | Color | Length | Weight |
|---|
| CPR-COBRA-360 | COBRA360 (this item) | Adjustable - all listed connectors | Black | 5.5" | .65 lb (.28 kg) |
| CPR-COBRA360-830 | COBRA360-830 | Non-adjustable, .830" connectors | Black | 5.5" | .65 lb (.28 kg) |
| CPR-COBRA360-710 | COBRA360-710 | Non-adjustable, .710" connectors | Black | 5.5" | .65 lb (.28 kg) |
| CPR-COBRA360-G | COBRA360-G | Adjustable - all listed connectors | Green | 5.5" | .65 lb (.28 kg) |
| CPR-COBRA360-710-G | COBRA360-710-G | Non-adjustable, .710" connectors | Green | 5.5" | .65 lb (.28 kg) |
Product Specifications Sheet
|
|
|
