Cable Prep SCT-875 PIII and T10 Strip/Core Tool

Home > Categories > Cable Prep & Termination > Coring Tools > 875 Coring Tools >

Alternative Views:

TTS PRICE: $79.09

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-SCT-875

QUANTITY:

PRODUCT DESCRIPTION

Cable Prep SCT-875 Strip & Core Tool - .875 PIII & T10 Hardline, Plastic, Grey Sleeve

The SCT-875 stripping/coring tool is two tools in one. SCT cable strippers remove the aluminum sheath without scoring, while the cable coring function cores the dielectric and bevels the outer conductor on hardline cables. SCT stripping/coring tools work on 0.412" through 1.000" hardline cables, including PIII, T10, TX10, CommScope® Power Feeder, Times Fiber 50-ohm, PB10, MC2, and comparable HFC cables. This tool is sized for .875 PIII & T10 cable.

Use it by hand with the standard ergonomic handle, or remove the handle and run it on a 3/8-inch variable-speed drill. The grey color-coded guide sleeve makes it easy to pick the right tool for the cable.

Features:

Performs 3 functions at once: strips back and bevels the outer conductor and cores the dielectric in one operation

Patented one-piece blade with perfectly aligned coring and stripping edges

Blade manufactured from high-alloy tool steel heat treated to full hardness; beveled edges remain sharp over a long life

Precision performance: cores the dielectric and strips the aluminum sheath without scoring

Prevents O-ring damage: the beveled outer conductor edge also minimizes water migration

Operate manually or with a drill (standard handle removes for 3/8-inch variable-speed drill use)

Threads molded into the body accept a Cable Prep JCS jacket stripper (sold separately)

Lightweight plastic body with diagonal I-beam struts

Specifications:

Type: Hardline Stripping & Coring Tool

Cable: .875 PIII & T10

Color Code: Grey

Handle: Standard ergonomic handle (removable)

Drill Operation: 3/8-inch variable-speed drill (handle removed)

Body: Plastic

Weight: 9.3 oz (263.6 g)

Customer Item Numbers: Bright House 1002180, Cable Vision 2915, CIFA 127029, Time Warner PeopleSoft 1008254, 1003320

Model: SCT-875

Available Sizes (SCT / RSCT Stripping & Coring Tools):

Part #	Cable Prep #	Cable	Housing	Handle	Color Code	Weight	Blade Kit	Guide Sleeve
CPR-SCT-412-ALU	SCT-412-ALU	0.412 T10 & PIII	Aluminum	Standard	Light Blue	10.9 oz (309 g)	SC-412RB	GS-412
CPR-RSCT-412-ALU	RSCT-412-ALU	0.412 T10 & PIII	Aluminum	Ratchet T-Handle	Light Blue	15.7 oz (445.1 g)	SC-412RB	GS-412
CPR-SCT-412	SCT-412	0.412 T10 & PIII	Plastic	Standard	Light Blue	7.4 oz (209.8 g)	SC-412RB	GS-412
CPR-RSCT-412	RSCT-412	0.412 T10 & PIII	Plastic	Ratchet T-Handle	Light Blue	15.7 oz (445.1 g)	SC-412RB	GS-412
CPR-SCT-500-ALU	SCT-500-ALU	0.500 T10 & PIII	Aluminum	Standard	Yellow	11.2 oz (317.5 g)	SC-500RB	GS-500
CPR-RSCT-500-ALU	RSCT-500-ALU	0.500 T10 & PIII	Aluminum	Ratchet T-Handle	Yellow	16 oz (453.6 g)	SC-500RB	GS-500
CPR-SCT-500	SCT-500	0.500 T10 & PIII	Plastic	Standard	-		SC-500RB	GS-500
CPR-RSCT-500	RSCT-500	0.500 T10 & PIII	Plastic	Ratchet T-Handle	Yellow	16 oz (453.6 g)	SC-500RB	GS-500
CPR-SCT-625-ALU	SCT-625-ALU	0.625 T10 & PIII	Aluminum	Standard	Green	11.5 oz (326 g)	SC-625RB	GS-625
CPR-RSCT-625-ALU	RSCT-625-ALU	0.625 T10 & PIII	Aluminum	Ratchet T-Handle	Green	16.3 oz (462.7 g)	SC-625RB	GS-625
CPR-SCT-625	SCT-625	0.625 T10 & PIII	Plastic	Standard	Green	8 oz (226.8 g)	SC-625RB	GS-625
CPR-RSCT-625	RSCT-625	0.625 T10 & PIII	Plastic	Ratchet T-Handle	Green	16.3 oz (462.1 g)	SC-625RB	GS-625
CPR-SCT-750-ALU	SCT-750-ALU	0.750 T10 & PIII	Aluminum	Standard	Red	11.8 oz (334.5 g)	SC-750RB	GS-750
CPR-RSCT-750-ALU	RSCT-750-ALU	0.750 T10 & PIII	Aluminum	Ratchet T-Handle	Red	16.6 oz (470.6 g)	SC-750RB	GS-750
CPR-SCT-750	SCT-750	0.750 T10 & PIII	Plastic	Standard	Red	8.3 oz (235.3 g)	SC-750RB	GS-750
CPR-RSCT-750	RSCT-750	0.750 T10 & PIII	Plastic	Ratchet T-Handle	Red	16.6 oz (470.6 g)	SC-750RB	GS-750
CPR-SCT-875-ALU	SCT-875-ALU	0.875 T10 & PIII	Aluminum	Standard	-		SC-875RB	GS-875
CPR-RSCT-875-ALU	RSCT-875-ALU	0.875 T10 & PIII	Aluminum	Ratchet T-Handle	Grey	17.6 oz (499 g)	SC-875RB	GS-875
CPR-SCT-875	SCT-875 (this item)	0.875 T10 & PIII	Plastic	Standard	Grey	9.3 oz (263.6 g)	SC-875RB	GS-875
CPR-RSCT-875	RSCT-875	0.875 T10 & PIII	Plastic	Ratchet T-Handle	Grey	17.6 oz (499 g)	SC-875RB	GS-875
CPR-RSCT-1000-ALU	RSCT-1000-ALU	1.000 T10 & PIII	Aluminum	Ratchet T-Handle	Black	21.8 oz (618 g)	SC-1000RB	GS-1000
CPR-SCT-565-ALU	SCT-565-ALU	0.565 TX10 & PIII	Aluminum	Standard	Orange	11.2 oz (317.5 g)	SC-565RB	GS-565
CPR-RSCT-565-ALU	RSCT-565-ALU	0.565 TX10 & PIII	Aluminum	Ratchet T-Handle	Orange	16 oz (453.6 g)	SC-565RB	GS-565
CPR-SCT-565	SCT-565	0.565 TX10 & PIII	Plastic	Standard	-		SC-565RB	GS-565
CPR-RSCT-565	RSCT-565	0.565 TX10 & PIII	Plastic	Ratchet T-Handle	Orange	16 oz (453.6 g)	SC-565RB	GS-565
CPR-SCT-700-ALU	SCT-700-ALU	0.700 TX10 & PIII	Aluminum	Standard	Maroon	11.8 oz (334.5 g)	SC-700RB	GS-700
CPR-RSCT-700-ALU	RSCT-700-ALU	0.700 TX10 & PIII	Aluminum	Ratchet T-Handle	Maroon	16.6 oz (470.6 g)	SC-700RB	GS-700
CPR-SCT-700	SCT-700	0.700 TX10 & PIII	Plastic	Standard	Maroon	8.3 oz (235.3 g)	SC-700RB	GS-700
CPR-RSCT-700	RSCT-700	0.700 TX10 & PIII	Plastic	Ratchet T-Handle	Maroon	16.6 oz (470.6 g)	SC-700RB	GS-700
CPR-SCT-840-ALU	SCT-840-ALU	0.840 TX10 & PIII	Aluminum	Standard	Light Grey	12.8 oz (362.9 g)	SC-840RB	GS-840
CPR-RSCT-840-ALU	RSCT-840-ALU	0.840 TX10 & PIII	Aluminum	Ratchet T-Handle	Light Grey	17.6 oz (499 g)	SC-840RB	GS-840
CPR-SCT-840	SCT-840	0.840 TX10 & PIII	Plastic	Standard	Light Grey	9.3 oz (263.6 g)	SC-840RB	GS-840
CPR-RSCT-840	RSCT-840	0.840 TX10 & PIII	Plastic	Ratchet T-Handle	Light Grey	17.6 oz (499 g)	SC-840RB	GS-840
CPR-SCT-625/PF-ALU	SCT-625/PF-ALU	0.625 CommScope Power Feeder	Aluminum	Standard	Green	10.9 oz (309 g)	SC-625/PF-RB	GS-625
CPR-RSCT-625/PF-ALU	RSCT-625/PF-ALU	0.625 CommScope Power Feeder	Aluminum	Ratchet T-Handle	Green	11.2 oz (317.5 g)	SC-625/PF-RB	GS-625
CPR-SCT-625/50-ALU	SCT-625/50-ALU	0.625 Times Fiber 50 Ohm	Aluminum	Standard	Green	10.9 oz (309 g)	SC-625/50-RB	GS-625
CPR-RSCT-625/50-ALU	RSCT-625/50-ALU	0.625 Times Fiber 50 Ohm	Aluminum	Ratchet T-Handle	Green	16.3 oz (462.1 g)	SC-625/50-RB	GS-625
CPR-SCT-625/50	SCT-625/50	0.625 Times Fiber 50 Ohm	Plastic	Standard	Green	8 oz (226.8 g)	SC-625/50-RB	GS-625
CPR-RSCT-625/50	RSCT-625/50	0.625 Times Fiber 50 Ohm	Plastic	Ratchet T-Handle	Green	16.3 oz (462.1 g)	SC-625/50-RB	GS-625
CPR-SCT-440MC	SCT-440MC	0.440 Trilogy MC2	Aluminum	Standard	-	12.8 oz (362.9 g)	SC-440MC
CPR-RSCT-440MC	RSCT-440MC	0.440 Trilogy MC2	Aluminum	Ratchet T-Handle	-	21.1 oz (598.2 g)	SC-440MC
CPR-RSCT-1000MC	RSCT-1000MC	1.000 Trilogy MC2	Aluminum	Ratchet T-Handle	-	30.1 oz (853.3 g)

Replacement Parts:

Part #	Cable Prep #	Description
-	SC-875RB	Replacement blade kit for SCT-875 - blade, screw and hex key

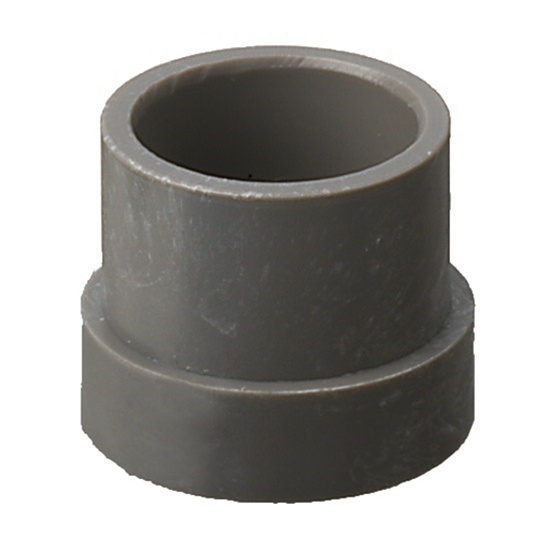

CPR-GS-875	GS-875	Grey guide sleeve kit for .875 PIII & T10 cable

SCT Stripping/Coring Tools Brochure
