Cable Prep PIII and T10 Strip/Core Tool w/ Ratchet Handle

Cable Prep RSCT-1000-ALU PIII and T10 Strip/Core Tool with Ratchet Handle


Alternative Views:
TTS PRICE: $134.99


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 5-7 DAYS

PRODUCT CODE: CPR-RSCT-1000-ALU
QUANTITY:

PRODUCT DESCRIPTION

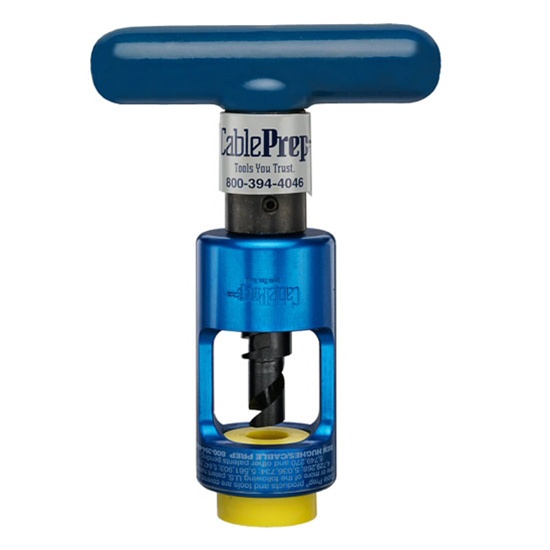

Cable Prep RSCT-1000-ALU Ratchet Strip & Core Tool - 1.000 PIII & T10 Hardline, Aluminum, Black Sleeve

The RSCT-1000-ALU stripping/coring tool is two tools in one. RSCT cable strippers remove the aluminum sheath without scoring, while the cable coring function cores the dielectric and bevels the outer conductor on hardline cables. SCT stripping/coring tools work on 0.412" through 1.000" hardline cables, including PIII, T10, TX10, CommScope® Power Feeder, Times Fiber 50-ohm, PB10, MC2, and comparable HFC cables. This version is fitted with the Cable Prep brand RTH ratchet T-handle. Either handle can be removed for operation with a 3/8-inch variable speed drill.

Features:
  • Performs 3 functions at once: strips back and bevels the outer conductor and cores the dielectric in one operation
  • Perfectly aligned coring and stripping blades
  • Blades manufactured from high-alloy tool steel that is heat treated to full hardness
  • Beveled edges remain sharp over long life
  • Precision performance
  • Prevents O-Ring damage
  • Operate manually or with a drill

    • Specifications:
  • Type: Hardline Stripping & Coring Tool with Ratchet T-Handle
  • Cable: 1.000 PIII & T10 hardline (1000)
  • Color Code: Black
  • Handle: RTH ratchet T-handle (removable)
  • Housing: Aluminum
  • Weight: 21.8 oz (618 g)
  • Customer Item Numbers: CIFA 140297
  • Model: RSCT-1000-ALU

    • Available Sizes (SCT / RSCT Stripping & Coring Tools):
    Part #Cable Prep #CableHousingHandleColor CodeWeightBlade KitGuide Sleeve
    CPR-SCT-412-ALUSCT-412-ALU0.412 T10 & PIIIAluminumStandardLight Blue10.9 oz (309 g)SC-412RBGS-412
    CPR-RSCT-412-ALURSCT-412-ALU0.412 T10 & PIIIAluminumRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-412SCT-4120.412 T10 & PIIIPlasticStandardLight Blue7.4 oz (209.8 g)SC-412RBGS-412
    CPR-RSCT-412RSCT-4120.412 T10 & PIIIPlasticRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-500-ALUSCT-500-ALU0.500 T10 & PIIIAluminumStandardYellow11.2 oz (317.5 g)SC-500RBGS-500
    CPR-RSCT-500-ALURSCT-500-ALU0.500 T10 & PIIIAluminumRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-500SCT-5000.500 T10 & PIIIPlasticStandard-SC-500RBGS-500
    CPR-RSCT-500RSCT-5000.500 T10 & PIIIPlasticRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-625-ALUSCT-625-ALU0.625 T10 & PIIIAluminumStandardGreen11.5 oz (326 g)SC-625RBGS-625
    CPR-RSCT-625-ALURSCT-625-ALU0.625 T10 & PIIIAluminumRatchet T-HandleGreen16.3 oz (462.7 g)SC-625RBGS-625
    CPR-SCT-625SCT-6250.625 T10 & PIIIPlasticStandardGreen8 oz (226.8 g)SC-625RBGS-625
    CPR-RSCT-625RSCT-6250.625 T10 & PIIIPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625RBGS-625
    CPR-SCT-750-ALUSCT-750-ALU0.750 T10 & PIIIAluminumStandardRed11.8 oz (334.5 g)SC-750RBGS-750
    CPR-RSCT-750-ALURSCT-750-ALU0.750 T10 & PIIIAluminumRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-750SCT-7500.750 T10 & PIIIPlasticStandardRed8.3 oz (235.3 g)SC-750RBGS-750
    CPR-RSCT-750RSCT-7500.750 T10 & PIIIPlasticRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-875-ALUSCT-875-ALU0.875 T10 & PIIIAluminumStandard-SC-875RBGS-875
    CPR-RSCT-875-ALURSCT-875-ALU0.875 T10 & PIIIAluminumRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-SCT-875SCT-8750.875 T10 & PIIIPlasticStandardGrey9.3 oz (263.6 g)SC-875RBGS-875
    CPR-RSCT-875RSCT-8750.875 T10 & PIIIPlasticRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-RSCT-1000-ALURSCT-1000-ALU (this item)1.000 T10 & PIIIAluminumRatchet T-HandleBlack21.8 oz (618 g)SC-1000RBGS-1000
    CPR-SCT-565-ALUSCT-565-ALU0.565 TX10 & PIIIAluminumStandardOrange11.2 oz (317.5 g)SC-565RBGS-565
    CPR-RSCT-565-ALURSCT-565-ALU0.565 TX10 & PIIIAluminumRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-565SCT-5650.565 TX10 & PIIIPlasticStandard-SC-565RBGS-565
    CPR-RSCT-565RSCT-5650.565 TX10 & PIIIPlasticRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-700-ALUSCT-700-ALU0.700 TX10 & PIIIAluminumStandardMaroon11.8 oz (334.5 g)SC-700RBGS-700
    CPR-RSCT-700-ALURSCT-700-ALU0.700 TX10 & PIIIAluminumRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-700SCT-7000.700 TX10 & PIIIPlasticStandardMaroon8.3 oz (235.3 g)SC-700RBGS-700
    CPR-RSCT-700RSCT-7000.700 TX10 & PIIIPlasticRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-840-ALUSCT-840-ALU0.840 TX10 & PIIIAluminumStandardLight Grey12.8 oz (362.9 g)SC-840RBGS-840
    CPR-RSCT-840-ALURSCT-840-ALU0.840 TX10 & PIIIAluminumRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-840SCT-8400.840 TX10 & PIIIPlasticStandardLight Grey9.3 oz (263.6 g)SC-840RBGS-840
    CPR-RSCT-840RSCT-8400.840 TX10 & PIIIPlasticRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-625/PF-ALUSCT-625/PF-ALU0.625 CommScope Power FeederAluminumStandardGreen10.9 oz (309 g)SC-625/PF-RBGS-625
    CPR-RSCT-625/PF-ALURSCT-625/PF-ALU0.625 CommScope Power FeederAluminumRatchet T-HandleGreen11.2 oz (317.5 g)SC-625/PF-RBGS-625
    CPR-SCT-625/50-ALUSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumStandardGreen10.9 oz (309 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50-ALURSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-625/50SCT-625/500.625 Times Fiber 50 OhmPlasticStandardGreen8 oz (226.8 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50RSCT-625/500.625 Times Fiber 50 OhmPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-440MCSCT-440MC0.440 Trilogy MC2AluminumStandard-12.8 oz (362.9 g)SC-440MC
    CPR-RSCT-440MCRSCT-440MC0.440 Trilogy MC2AluminumRatchet T-Handle-21.1 oz (598.2 g)SC-440MC
    CPR-RSCT-1000MCRSCT-1000MC1.000 Trilogy MC2AluminumRatchet T-Handle-30.1 oz (853.3 g)

    Replacement Parts:
    Part #Cable Prep #Description
    -SC-1000RBReplacement blade kit (blade, screw and hex key)

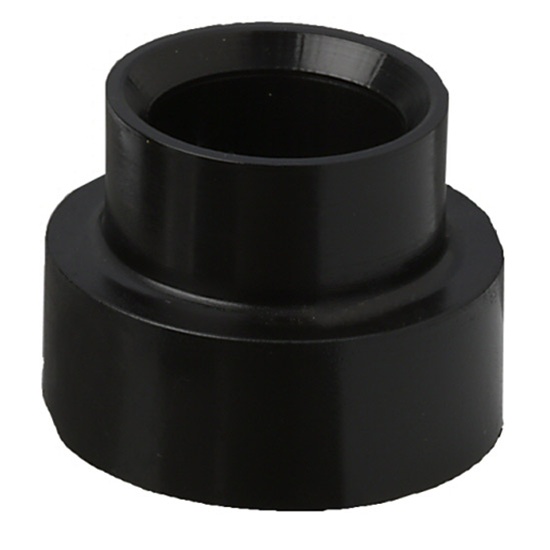

    -GS-1000Black guide sleeve for 1.000 tools

    Accessories:
    Part #Cable Prep #Description
    CPR-JCS-1000JCS-1000Jacket stripper for 1.000 PIII & T10 - threads onto this tool
    SCT Stripping/Coring Tools Brochure
