Strip, bevel, core and jacket-strip 540 CommScope QR cable - one tool set, no separate jacket stripper to order.

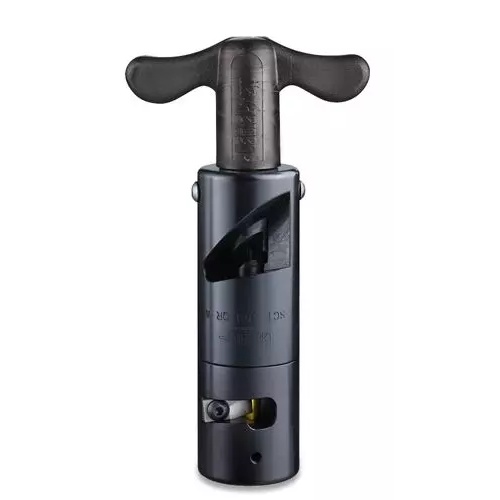

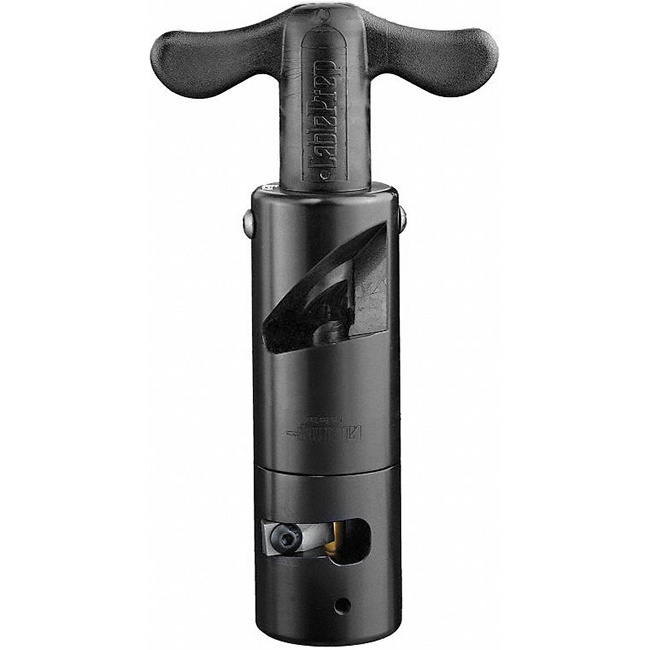

The Cable Prep RSCT-540QR strips back and bevels the outer conductor, cores the dielectric and strips back the outer jacket on 540 CommScope QR cable. Because QR jacket has to come off after coring, each SCT-QR tool ships with its own threaded jacket stripping tool with a patented mandrel pin that supports the soft aluminum outer conductor.

Factory-set stops, self-aligning blade.
A non-clogging internal stop is set at the factory to the cable's dimensions, and the bevel on the coring edge self-aligns on the center conductor so the tool cores even out-of-round cable. Turn it with the ratchet T-handle, or remove the handle and run it on a 3/8in variable-speed drill.

• Strips back and bevels the outer conductor and cores the dielectric in one operation
• Includes the matching threaded jacket stripping tool (assembles with the corer for storage)
• Non-clogging internal stop factory-set to the cable
• Patented blade self-aligns on the center conductor - cores out-of-round cable
• Tool steel blades heat treated to full hardness; beveled edge eliminates O-ring damage
• Cable Prep RTH ratchet T-handle; removes for 3/8in variable-speed drill operation
• Black anodized aluminum construction

• Model: Cable Prep RSCT-540QR
• Cable: 540 CommScope QR
• Core Depth: 1.250in
• Center Conductor Stop Length: 1.000in
• Jacket Strip Back: 0.500in
• Handle: RTH ratchet T-handle (removable)
• Body: Black anodized aluminum
• Weight: 30.4 oz
• Replacement Blade Kit: SC-540QR
• Standard Handle Version: CPR-SCT-540QR
