Cable Prep RBC-1100 Replacement Blade Cartridge - RG-7 & RG-11, Grey, One Cartridge

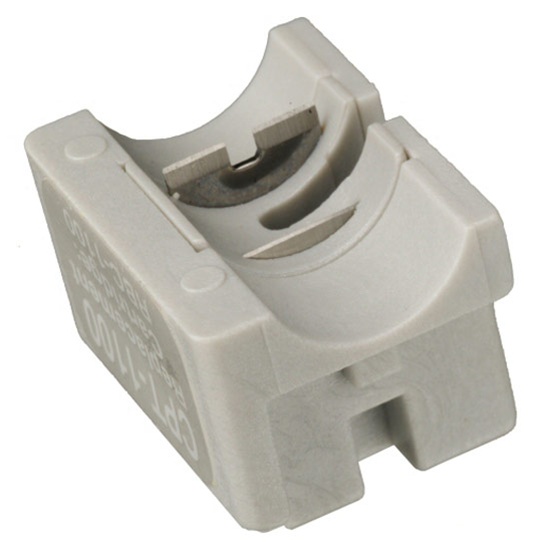

Cable Prep's CPR-RBC-1100 is a grey replacement blade cartridge for the CPR-CPT-1100 7 & 11 cable stripper, and it also fits cartridge slot A of the Cable Prep Super CPT. These hardened steel blades ensure optimum performance and a long lifetime. Each blade can prepare 2,500 to 5,000 cables depending on braid coverage.
Features:
One blade cartridge
Hardened tool-steel blades for optimum performance over a long life
Each cartridge prepares 2,500 to 5,000 cables, depending on braid coverage
Factory calibrated so the jacket is stripped and the braid and dielectric are cut back to the proper dimensions
Color-coded cartridge snaps into place
Works on standard (single) through quad-shield RG-7 and RG-11 cables
Specifications:
Cable: RG-7 & RG-11 (7 & 11 series)
Braid Exposure: 0.250" (6.4 mm)
Center Conductor Exposure: 0.250" (6.4 mm) minimum
Cartridge Color: Grey
Super CPT Cartridge Slot: A
Quantity: 1 cartridge
Weight: 0.6 oz (18 g)
Customer Item Numbers: Charter 901654-BEN, Cable Vision 29062, CIFA 22785, 40380, Oracle 920-3064, Time Warner PeopleSoft 1013618, Verizon 11017636
Model: RBC-1100
Available Cartridges (CPT / Super CPT):
| Part # | Cable Prep # | Cable | Braid Exposure | Cartridge Color | Super CPT Slot | Cartridges per Package |
|---|
| CPR-RBC-6590_10PK | RBC-6590 | 6 & 59 | 0.250" / 6.4 mm | Black | B | 10 |
| CPR-RBC-6590-TS | RBC-6590TS | TriShield 6 | 0.250" / 6.4 mm | White | B | 10 |
| CPR-RBC-1100 | RBC-1100 (this item) | 7 & 11 | 0.250" / 6.4 mm | Grey | A | 10 |
| CPR-RBC-1100-125 | RBC-1100-125 | 7 & 11 | 0.125" / 3.2 mm | Orange | A | 10 |
| CPR-RBC-59HEC2 | RBC-59HEC2 | CommScope 59 Quad Series Head End | 0.250" / 6.4 mm | White | B | 1 |
| CPR-RBC-TXFF-250 | RBC-TXFF-250 | Times Fiber Flexible Feeder (TXFF) and CommScope F50 | 0.250" / 6.4 mm | Yellow | A | 1 |
Fits These Tools:
| Part # | Cable Prep # | Description |
|---|
| CPR-CPT-1100 | CPT-1100 | 7 & 11 cable stripper - one installed / one spare cartridge |
| CPR-CPT-1100-SINGLE | CPT-1100-SINGLE | 7 & 11 cable stripper - one installed cartridge |
| CPT-SCPT-6591 | SCPT-6591 | Super CPT dual stripping tool - cartridge slot A |
Super CPT Cable Stripping Tools Brochure
|
|
|
