Cable Prep Strip/Core Tool w/ Ratchet - 440MC

Cable Prep Strip/Core Tool w/ Ratchet - 440MC


TTS PRICE: $136.09

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-RSCT-440MC
QUANTITY:

PRODUCT DESCRIPTION

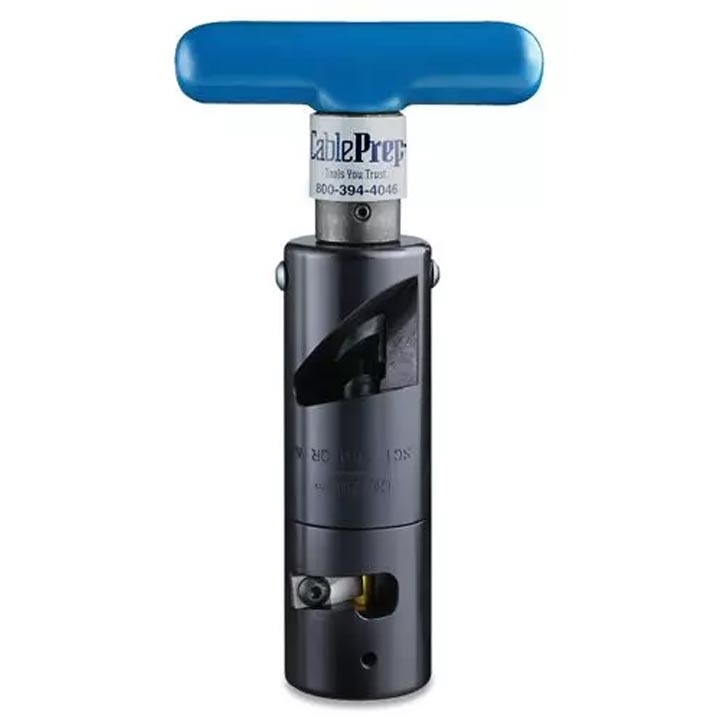

Cable Prep RSCT-440MC Ratchet Strip & Core Tool - .440 Trilogy MC2 Hardline, Aluminum

The Cable Prep RSCT-440MC Ratchet Trilogy MC2 Cable Stripping and Coring Tool combines two essential functions in one durable tool. Engineered for precision, it cores the dielectric and bevels the outer conductor while also stripping the aluminum sheath without scoring. With its innovative design, the RSCT-440MC ensures accurate cable preparation that extends connector life and minimizes water migration in hardline cable systems.

Cable Prep's SCT/RSCT stripping/coring line covers 0.412" through 1.000" hardline cables, including PIII, T10, TX10, CommScope Power Feeder, Times Fiber 50-ohm, PB10, MC2 and comparable HFC cables. The RSCT-440MC is the ratchet T-handle version for 0.440 Trilogy MC2 cable.

Features:
  • Four functions in one operation when paired with a JCS jacket stripper
  • Patented one-piece blade with perfectly aligned cutting edges
  • Heat-treated high-alloy tool steel maintains sharpness over long life
  • Beveled conductor edges prevent O-ring damage and reduce water migration
  • Compatible with manual use or drill operation (3/8-inch variable speed drill)
  • Cable Prep RTH ratchet T-handle; removable
  • Lightweight but strong I-beam body design for easy operation
  • Threaded for easy JCS jacket stripper attachment and storage
  • Recessed JCS threads protected from drops and wear
  • Strips the aluminum sheath without scoring; cores the dielectric and bevels the outer conductor
  • For broadband, CATV, and utility HFC networks

    • Specifications:
  • Type: Ratchet Trilogy MC2 Cable Stripping and Coring Tool
  • Cable: 0.440 Trilogy MC2
  • Handle: RTH ratchet T-handle (removable)
  • Housing: Aluminum
  • Weight: 21.1 oz (598.2 g)
  • Model: RSCT-440MC

    • Available Sizes (SCT / RSCT Stripping & Coring Tools):
    Part #Cable Prep #CableHousingHandleColor CodeWeightBlade KitGuide Sleeve
    CPR-SCT-412-ALUSCT-412-ALU0.412 T10 & PIIIAluminumStandardLight Blue10.9 oz (309 g)SC-412RBGS-412
    CPR-RSCT-412-ALURSCT-412-ALU0.412 T10 & PIIIAluminumRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-412SCT-4120.412 T10 & PIIIPlasticStandardLight Blue7.4 oz (209.8 g)SC-412RBGS-412
    CPR-RSCT-412RSCT-4120.412 T10 & PIIIPlasticRatchet T-HandleLight Blue15.7 oz (445.1 g)SC-412RBGS-412
    CPR-SCT-500-ALUSCT-500-ALU0.500 T10 & PIIIAluminumStandardYellow11.2 oz (317.5 g)SC-500RBGS-500
    CPR-RSCT-500-ALURSCT-500-ALU0.500 T10 & PIIIAluminumRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-500SCT-5000.500 T10 & PIIIPlasticStandard-SC-500RBGS-500
    CPR-RSCT-500RSCT-5000.500 T10 & PIIIPlasticRatchet T-HandleYellow16 oz (453.6 g)SC-500RBGS-500
    CPR-SCT-625-ALUSCT-625-ALU0.625 T10 & PIIIAluminumStandardGreen11.5 oz (326 g)SC-625RBGS-625
    CPR-RSCT-625-ALURSCT-625-ALU0.625 T10 & PIIIAluminumRatchet T-HandleGreen16.3 oz (462.7 g)SC-625RBGS-625
    CPR-SCT-625SCT-6250.625 T10 & PIIIPlasticStandardGreen8 oz (226.8 g)SC-625RBGS-625
    CPR-RSCT-625RSCT-6250.625 T10 & PIIIPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625RBGS-625
    CPR-SCT-750-ALUSCT-750-ALU0.750 T10 & PIIIAluminumStandardRed11.8 oz (334.5 g)SC-750RBGS-750
    CPR-RSCT-750-ALURSCT-750-ALU0.750 T10 & PIIIAluminumRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-750SCT-7500.750 T10 & PIIIPlasticStandardRed8.3 oz (235.3 g)SC-750RBGS-750
    CPR-RSCT-750RSCT-7500.750 T10 & PIIIPlasticRatchet T-HandleRed16.6 oz (470.6 g)SC-750RBGS-750
    CPR-SCT-875-ALUSCT-875-ALU0.875 T10 & PIIIAluminumStandard-SC-875RBGS-875
    CPR-RSCT-875-ALURSCT-875-ALU0.875 T10 & PIIIAluminumRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-SCT-875SCT-8750.875 T10 & PIIIPlasticStandardGrey9.3 oz (263.6 g)SC-875RBGS-875
    CPR-RSCT-875RSCT-8750.875 T10 & PIIIPlasticRatchet T-HandleGrey17.6 oz (499 g)SC-875RBGS-875
    CPR-RSCT-1000-ALURSCT-1000-ALU1.000 T10 & PIIIAluminumRatchet T-HandleBlack21.8 oz (618 g)SC-1000RBGS-1000
    CPR-SCT-565-ALUSCT-565-ALU0.565 TX10 & PIIIAluminumStandardOrange11.2 oz (317.5 g)SC-565RBGS-565
    CPR-RSCT-565-ALURSCT-565-ALU0.565 TX10 & PIIIAluminumRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-565SCT-5650.565 TX10 & PIIIPlasticStandard-SC-565RBGS-565
    CPR-RSCT-565RSCT-5650.565 TX10 & PIIIPlasticRatchet T-HandleOrange16 oz (453.6 g)SC-565RBGS-565
    CPR-SCT-700-ALUSCT-700-ALU0.700 TX10 & PIIIAluminumStandardMaroon11.8 oz (334.5 g)SC-700RBGS-700
    CPR-RSCT-700-ALURSCT-700-ALU0.700 TX10 & PIIIAluminumRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-700SCT-7000.700 TX10 & PIIIPlasticStandardMaroon8.3 oz (235.3 g)SC-700RBGS-700
    CPR-RSCT-700RSCT-7000.700 TX10 & PIIIPlasticRatchet T-HandleMaroon16.6 oz (470.6 g)SC-700RBGS-700
    CPR-SCT-840-ALUSCT-840-ALU0.840 TX10 & PIIIAluminumStandardLight Grey12.8 oz (362.9 g)SC-840RBGS-840
    CPR-RSCT-840-ALURSCT-840-ALU0.840 TX10 & PIIIAluminumRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-840SCT-8400.840 TX10 & PIIIPlasticStandardLight Grey9.3 oz (263.6 g)SC-840RBGS-840
    CPR-RSCT-840RSCT-8400.840 TX10 & PIIIPlasticRatchet T-HandleLight Grey17.6 oz (499 g)SC-840RBGS-840
    CPR-SCT-625/PF-ALUSCT-625/PF-ALU0.625 CommScope Power FeederAluminumStandardGreen10.9 oz (309 g)SC-625/PF-RBGS-625
    CPR-RSCT-625/PF-ALURSCT-625/PF-ALU0.625 CommScope Power FeederAluminumRatchet T-HandleGreen11.2 oz (317.5 g)SC-625/PF-RBGS-625
    CPR-SCT-625/50-ALUSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumStandardGreen10.9 oz (309 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50-ALURSCT-625/50-ALU0.625 Times Fiber 50 OhmAluminumRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-625/50SCT-625/500.625 Times Fiber 50 OhmPlasticStandardGreen8 oz (226.8 g)SC-625/50-RBGS-625
    CPR-RSCT-625/50RSCT-625/500.625 Times Fiber 50 OhmPlasticRatchet T-HandleGreen16.3 oz (462.1 g)SC-625/50-RBGS-625
    CPR-SCT-440MCSCT-440MC0.440 Trilogy MC2AluminumStandard-12.8 oz (362.9 g)SC-440MC
    CPR-RSCT-440MCRSCT-440MC (this item)0.440 Trilogy MC2AluminumRatchet T-Handle-21.1 oz (598.2 g)SC-440MC
    CPR-RSCT-1000MCRSCT-1000MC1.000 Trilogy MC2AluminumRatchet T-Handle-30.1 oz (853.3 g)

    Replacement Parts:
    Part #Cable Prep #Description
    -SC-440MCReplacement blade kit for 0.440 MC2 tools
    SCT Stripping/Coring Tools Brochure
