Cable Prep Super CPT Tool - Dual 6/59 & 7/11

Cable Prep Super CPT Tool - Dual 6/59 & 7/11




TTS PRICE: $45.99


STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: CPT-SCPT-6591
QUANTITY:

PRODUCT DESCRIPTION


Cable Prep's Super CPT tool is ideal for anyone working with RG6/59 or RG7/11 cables. The tool is designed to remove the cable jacket, cut the braid and dielectric, and expose the center conductor on large and small diameter braided and braid replacement cables, all in one smooth operation. Plus, the new insertion feature provides the leverage needed to push connectors onto cables, even bulky quad-shield cables!

Features:
  • NEW insertion feature provides leverage to push connector onto cable
  • Includes 6/59 and 7/11 cartridges
  • An integrated insertion feature
  • A wide body to support large cables
  • Two slots for different sized cartridges
  • An ergonomic, efficient design
  • Factory calibrated strip back dimensions
  • Quick-release mechanism
  • Hardened tool-steel blades
  • Patented clean-out feature

  • Specifications:
  • Strips 50 and 75-ohm cables
  • Strips AP/AQ cables
  • Also strips TXFF and smaller, RG-6, -59, -7, and -11 cables

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Looking At the Cable Prep 6/59 & 7/11. May 19, 2021
    Reviewer: Paul Chudigian from Arlington, MA United States
    The Cable Prep Super CPT Tool 6/59 & 7/11 works with RG 6, 59, 7 & 11 cables (dual, tri & quad shield).

    The tool comes with two sets of blades (RG6/59 & 7/11)

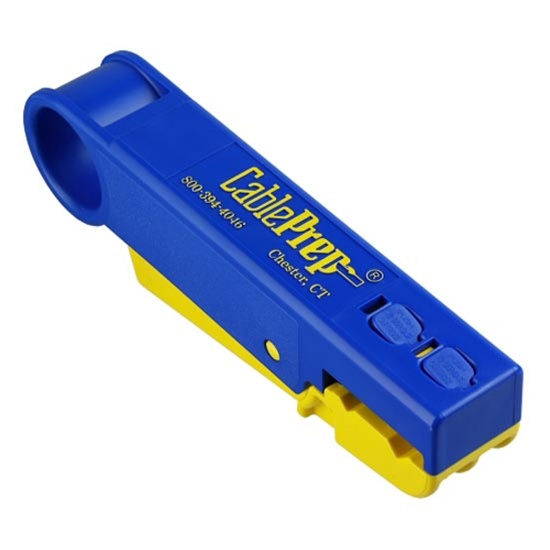

    The tool is large in size, but not much more so than similar tools. The plastic body is colored blue & yellow with yellow lettering (as seen in the provided picture).

    To operate the tool, first make sure that the correct blades are installed in the tool. Change the blades as needed. To date, I have only worked with RG6 cable, so I have not had the need to switch the blades.

    Next, squeeze the top & bottom sections to open the jaws, insert the coaxial cable into the proper slot while making sure to that the end of the cable stops flush with the edge of the tool), spin the tool clockwise until the sound of the braiding being cut stops, squeeze the tool's jaws together and pull it off of the cable.

    The cable can now be prepped for the installation of a connector.

    Looking forward to continued use of this tool.
